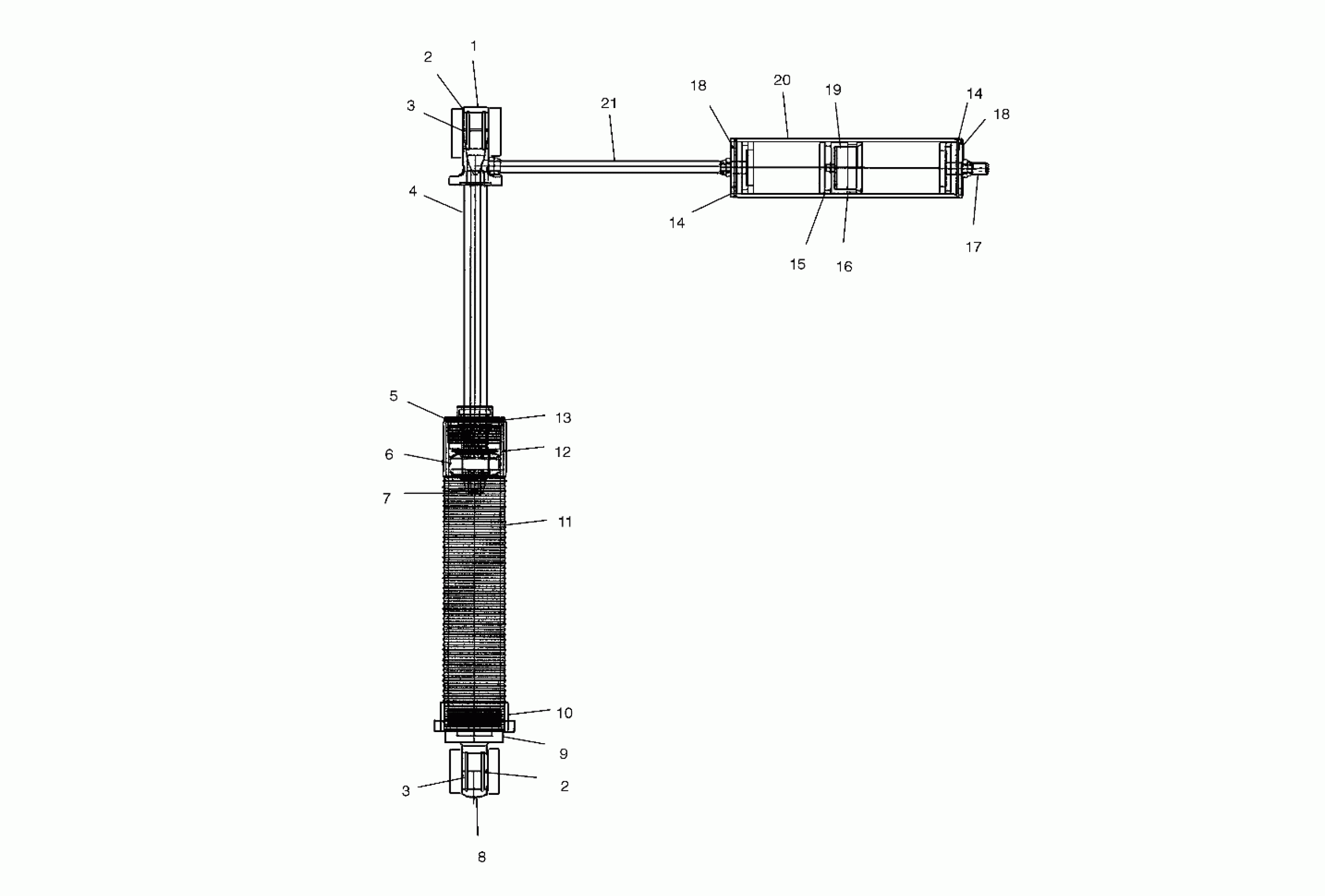

Polaris 440 PRO X - S02NX4CS SHOCK (IFS)(WALKER EVANS) - S02NX4CS (4977017701C01) Diagram

#

Description
Price

-

Shock, IFS, WALKER EVANS

7042072

$494.99

1

Eyelet, Shaft

1800012

$77.59

2

RING, SNAP, END BEARING

1800041

$7.27

2

RING, SNAP, END BEARING

1800041

$7.27

3

BEARING, END

1800040

$94.99

3

BEARING, END

1800040

$94.99

4

Shaft

1800011

$209.99

5

O-Ring, External

1800027

$2.02

5

WIPER

1800034

$31.99

5

Seal, Shaft, U-Cup

1800035

Unavailable

5

O-Ring, Internal

1800037

$1.60

5

BUSHING, SHAFT

1800038

$12.79

5

Seal, Shaft

1800009

$44.79

6

Band, Wear

1800026

Unavailable

6

Asm., Piston

1800001

$125.46

6

WASHER

1800050

$3.99

7

NUT, CRIMP

1800031

$3.99

8

Loop, Body

1800004

$70.39

9

O-RING

1800027

$2.02

10

RETAINER, SPRING

1800046

$36.41

11

Loop, Body

1800006

$175.99

12

Sleeve, Wear

1800047

$36.41

13

Ring, Retainer, Wire

1800048

$3.33

14

Ring, Snap

1800019

$6.46

14

Ring, Snap

1800019

$6.46

15

O-RING

1800028

$1.60

16

Band, Wear

1800029

Unavailable

17

Valve, Shrader

1800021

$43.99

18

Cap, End

1800018

$31.35

18

Cap, End

1800018

$31.35

19

Piston, Reservoir

1800016

$49.59

20

Body, Reservoir

1800025

$66.39

21

Hose

1800023

$95.19
