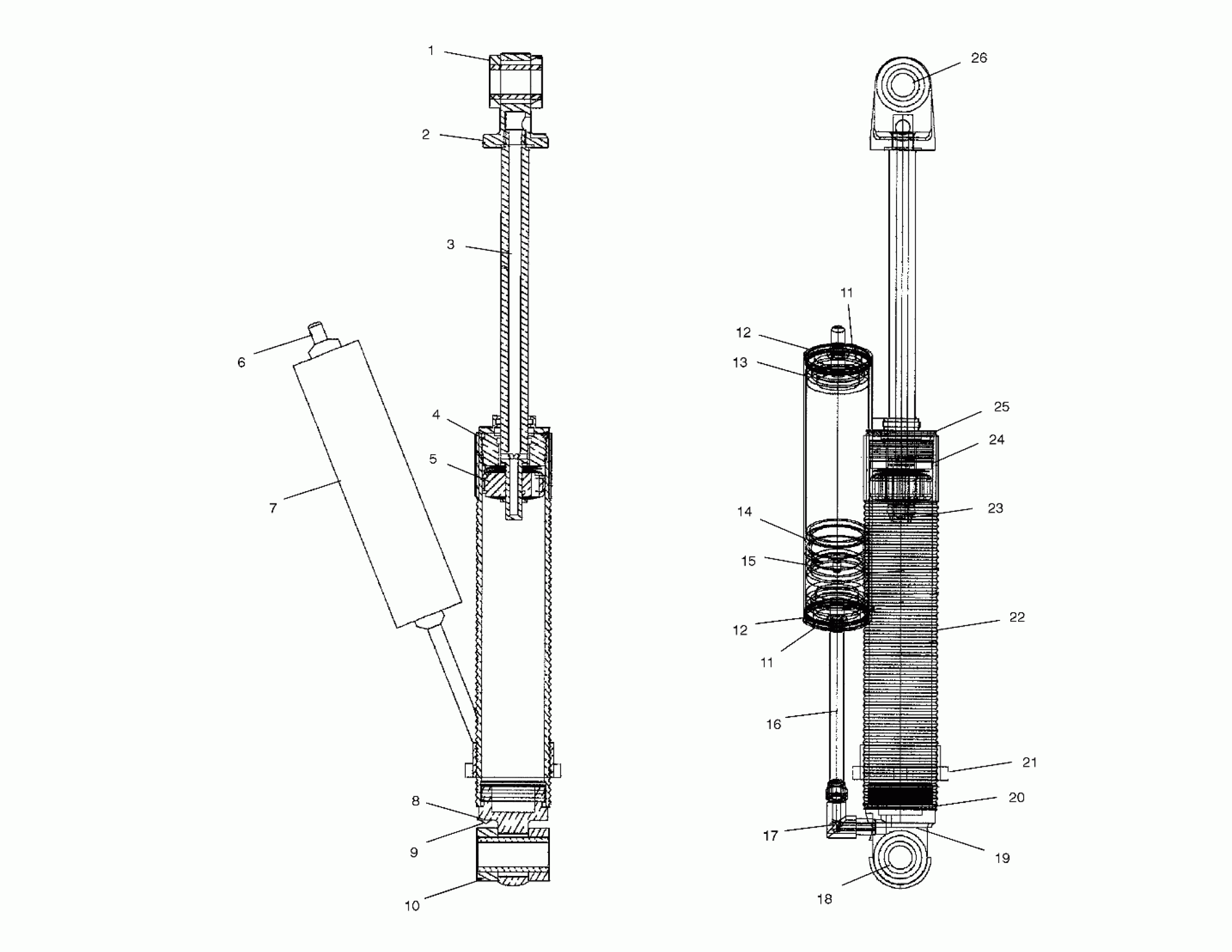

Polaris 440 PRO X - S02NX4CS SHOCK (FRONT TRACK)(WALKER EVANS) - S02NX4CS (4977017701C02) Diagram

#

Description
Price

-

Shock, Front Track, WALKER EVANS

7042070

$459.99

1

BUSHING

1800036

Unavailable

2

Eyelet, Shaft

1800013

$63.19

3

Shaft

1800015

$71.43

4

O-Ring, External

1800027

$2.02

4

WIPER

1800034

$31.99

4

Seal, Shaft, U-Cup

1800035

Unavailable

4

O-Ring, Internal

1800037

$1.60

4

BUSHING, SHAFT

1800038

$12.79

4

Seal, Shaft

1800009

$44.79

5

Band, Wear

1800026

Unavailable

5

WASHER

1800050

$3.99

5

Asm., Piston

1800008

$82.39

5

Washer, Aluminum

1800049

$3.19

6

Valve, Shrader

1800021

$43.99

7

Body, Reservoir

1800017

$62.39

8

O-Ring

1800042

$1.49

9

SCREW, BLEED

1800043

$5.59

10

BUSHING

1800033

$19.99

11

Cap, End

1800018

$31.35

11

Cap, End

1800018

$31.35

12

Ring, Snap

1800019

$6.46

12

Ring, Snap

1800019

$6.46

13

O-RING

1800028

$1.60

14

Band, Wear

1800029

Unavailable

15

Piston, Reservoir

1800016

$49.59

16

Hose

1800024

$98.41

17

Fitting, 90 Degree

1800045

$50.39

18

Sleeve

1800039

$15.99

19

Loop, Body

1800005

$66.39

20

O-RING

1800027

$2.02

21

RETAINER, SPRING

1800046

$36.41

22

Body, Threaded

1800014

$91.19

23

NUT, CRIMP

1800031

$3.99

24

Sleeve, Wear

1800047

$36.41

25

Ring, Retainer, Wire

1800048

$3.33

26

SLEEVE

1800032

$19.99
