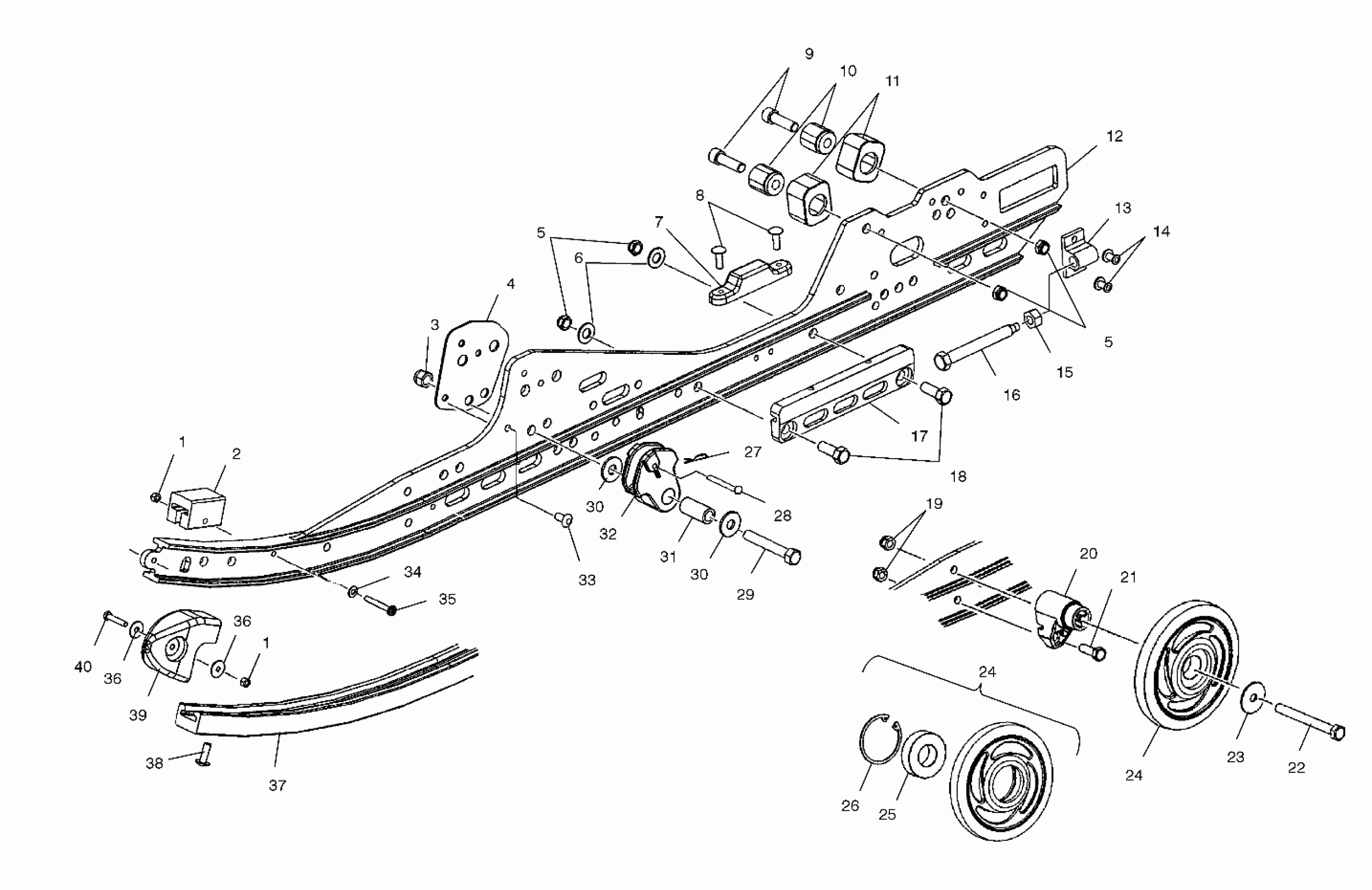

Polaris 440 PRO X - S02NX4CS RAIL MOUNTING (SUSPENSION) - S02NX4CS (4977017701B09) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

Bumper, Front

5521499

$8.89

3

Nut, Nylok

7542439

$1.49

4

Bracket, Rail Reinforcement

5245991

$13.19

5

Nut, FLEXLOC

7542411

$3.19

5

Nut, FLEXLOC

7542411

$3.19

6

Washer, Flat

7555806

$1.49

7

BUMPER

5432166

$5.59

8

Screw

7515199

$1.49

9

Screw

7515545

$5.59

10

MOUNT, BUMPER

5131113

$28.32

11

BUMPER, PIVOT ARM

5410925

$12.94

12

Asm., Rail, LH [Incl. 2,7,11,13,39]

1541714

$308.99

12

Asm., Rail, RH [Incl. 2,7,11,13,39]

1541715

$298.99

13

Block, Idler Bolt Adjusting

5132444

$28.32

14

RIVET

7621501

$2.39

15

Nut, Jam

7547156

$9.59

16

Screw

7517773

$28.56

17

Plate, Rail Reinforcement

5133359

Unavailable

18

Bolt

7512457

$3.99

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

Mount, Wheel

5631065

$28.32

21

Screw

7515317

$4.79

22

Screw

7515346

$5.59

23

Washer, Spring

7556179

$7.99

24

Asm., Wheel [5.62 Dia.][Incl. 25,26]

1590318-293

Unavailable

24

Asm., Wheel [5.62 Dia.][Incl. 25,26]

1590318-293

Unavailable

25

BEARING [1 PER WHEEL]

3514303

$11.99

26

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

27

PIN, HITCH

7661644

$2.39

28

Pin, Clevis

7661123

$3.99

29

Screw

7515438

$4.79

30

WASHER

7555983

Unavailable

30

WASHER

7555983

Unavailable

31

SPACER

5333948

$6.39

32

Guide, Spring

5434389

$28.32

33

RIVET

7661845

$1.49

34

Washer, Flat

7555783

$3.99

35

Screw

7510504

$6.76

36

WASHER

7555792

$4.79

36

WASHER

7555792

$4.79

37

Hifax

5521577-309

$39.98

38

Screw

7515199

$1.49

39

Cap, Rail Tip

5434355

Unavailable

40

Screw

7512007

$3.99
