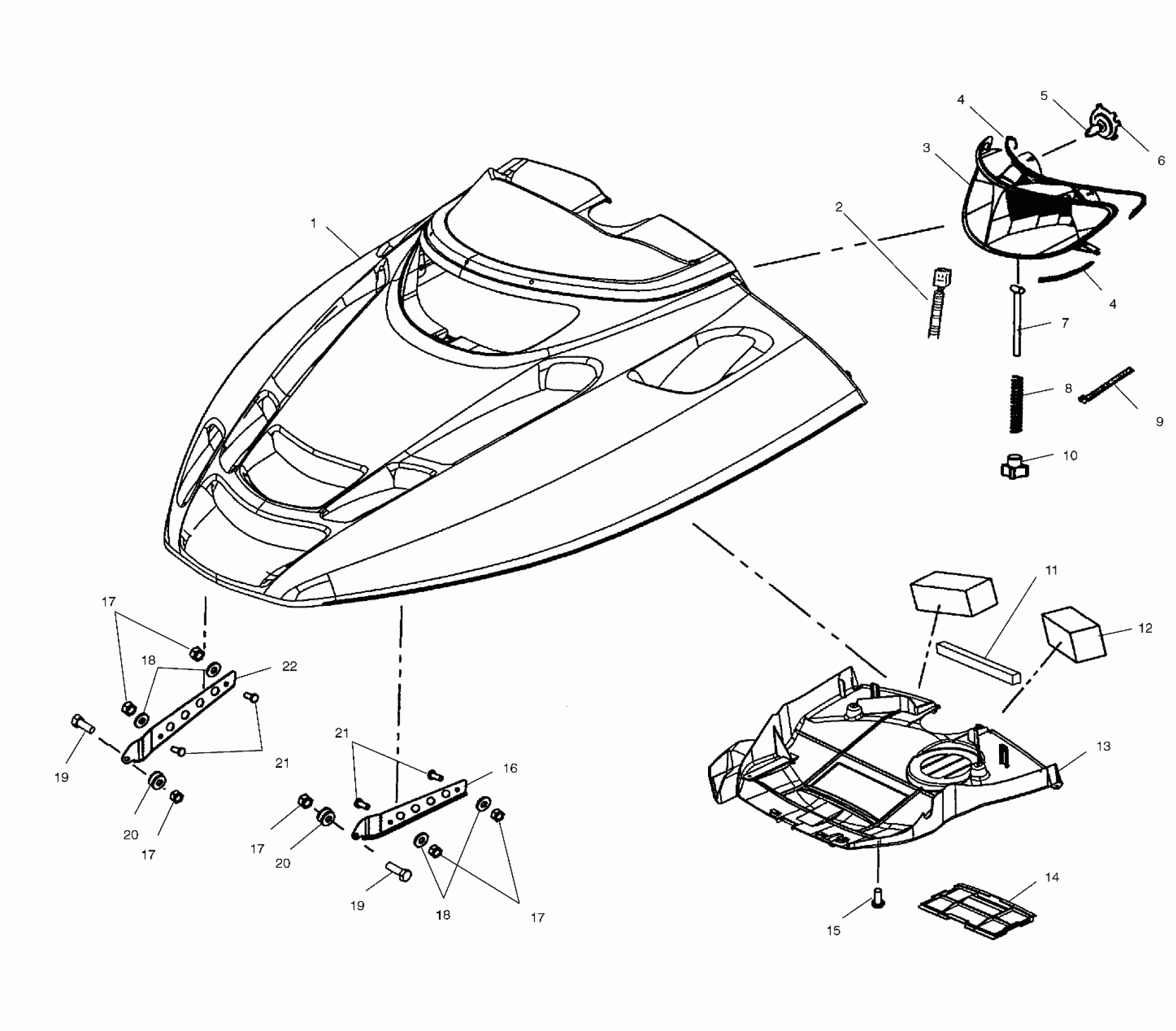

Polaris 440 PRO X - S02NX4CS HOOD - S02NX4CS (4977017701A08) Diagram

#

Description
Price

1

Asm., Hood [Incl. Foam and Foil]

2632599-293

$754.99

2

Harness, Headlight

2460791

$65.87

3

Asm. Headlamp [Incl. Bulbs]

2410132

Unavailable

4

Foam, Seal, Headlight, Top

5812175

Unavailable

4

Foam, Seal, Headlight, Bottom

5812174

Unavailable

4

Foam, Seal, Headlight, Top

5812175

Unavailable

4

Foam, Seal, Headlight, Bottom

5812174

Unavailable

5

BULB, HEADLIGHT

2870448

$24.99

6

Retainer, Headlamp Bulb

4032063

Unavailable

7

Bolt, Tee Adjuster

7517872

Unavailable

8

Spring, Headlight Adjust

7041954

$3.22

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

11

Foam, Seal, Forward Post

5812314

$4.92

12

Foam, Prefilter

5811793

$24.27

13

Plenum, Hood Intake

5433516

$32.15

13

Foil

5811948

Unavailable

13

Foil

5812324

Unavailable

14

COVER, HEADLIGHT ACCESS

5433660

$24.27

15

SCREW

7512068

$2.39

16

Hinge, Upper, LH

5243567-067

Unavailable

17

Nut, Nylok

7542122

$1.49

17

Nut, Nylok

7542122

$1.49

17

Nut, Nylok

7542122

$1.49

17

Nut, Nylok

7542122

$1.49

18

Washer, Flat

7558301

$1.49

18

Washer, Flat

7558301

$1.49

19

Bolt

7512113

$3.99

19

Bolt

7512113

$3.99

20

Spacer

5332403

$4.84

20

Spacer

5332403

$4.84

21

BOLT

7512240

$3.99

21

BOLT

7512240

$3.99

22

Hinge, Upper, RH

5243568-067

Unavailable
