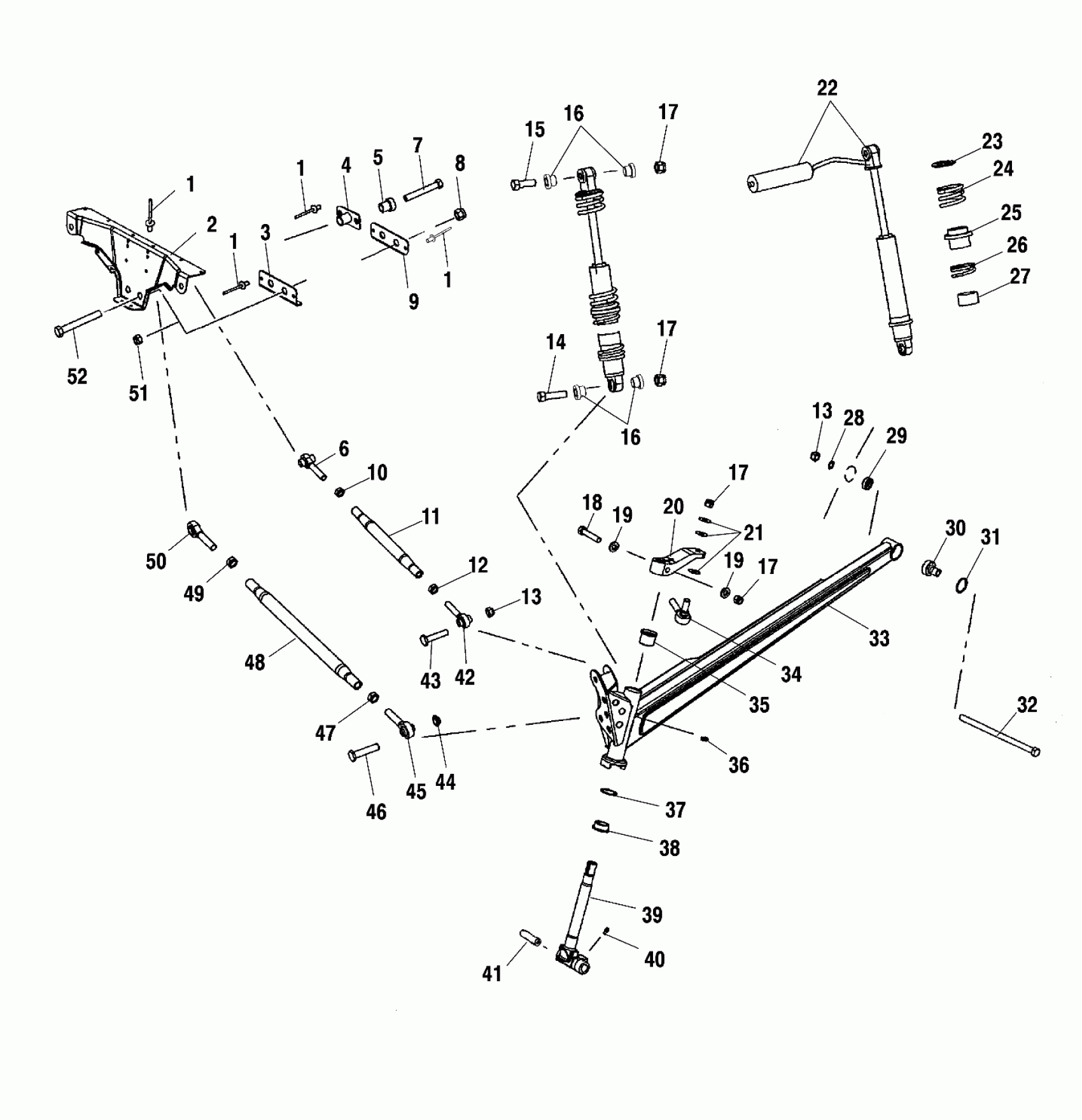

Polaris 440 PRO X - S02NX4CS FRONT SUSPENSION - S02NX4CS (4977017701A13) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Bracket, Radius Rod Support

5245740-067

$164.79

3

Bracket, Radius Rod, Lower

5245250

$11.59

4

Support, Radius Rod

1013733

$34.71

5

Bushing

5132897

$4.63

6

Rod End, LH

7061077

$38.71

7

Screw

7517980

$7.99

8

Nut, FLEXLOC

7542703

Unavailable

9

Plate, Lower, Inner

5245307

$7.43

10

Nut

7547117

Unavailable

11

Tube, Radius Rod, Upper

5133227

Unavailable

12

Nut, Jam

7542520

$2.39

13

NUT, NYLON

7547066

$1.59

13

NUT, NYLON

7547066

$1.59

14

SCREW

7517583

$4.35

15

Screw

7515415

$1.49

16

Spacer

5133320

Unavailable

16

Spacer

5133320

Unavailable

17

Nut, Nylok

7542439

$1.49

17

Nut, Nylok

7542439

$1.49

17

Nut, Nylok

7542439

$1.49

17

Nut, Nylok

7542439

$1.49

18

Screw

7515433

$1.59

19

WSHR-.813X.406X.105-Y

7555832

$2.39

19

WSHR-.813X.406X.105-Y

7555832

$2.39

20

Kit, Steering Arm

2874341

Unavailable

21

Washer, Flat

7555797

$3.99

22

Shock, IFS

7042072

$494.99

23

RETAINER, SPRING, SLOTTED

5020618

$24.99

24

Spring, Compression

7042122-293

$38.71

25

Spacer, Spring

5133305

$42.39

26

Spring, Compression

7041699-067

$45.99

27

Spacer, Transition

5133304

$24.99

28

WASHER, FLAT

7555820

$3.99

29

Cup, Trailing Arm Mount

5132364

$20.22

30

Bearing, Spherical

7061094

Unavailable

31

RING, RETAINER

7710437

$3.19

32

Screw

7512099

$19.99

33

Asm., Trailing Arm, LH [Incl. 27,28]

1821147-216

Unavailable

33

Asm., Trailing Arm, RH [Incl. 27,28]

1821148-216

$236.99

34

Rod End

7061057

$48.56

35

Bushing, Flange

3514376

Unavailable

36

Fitting, Lubrication

7080433

$1.49

37

Bushing

7556207

Unavailable

38

Bushing

3514377

Unavailable

39

Shaft, Spindle

6230248-067

Unavailable

40

Fitting, Lubrication

7080306

$3.19

41

Bushing

5010158

$19.99

42

Rod End

7061078

Unavailable

43

Screw

7517907

$4.23

44

Nut, Nylon

7547065

$3.99

45

Rod End

7061080

Unavailable

46

Screw

7517906

Unavailable

47

Nut

7542711

$2.39

48

Tube, Radius Rod, Lower

5133228

Unavailable

49

Nut

7547028

$2.39

50

Rod End, LH

7061079

$34.13

51

Nut, FLEXLOC

7542503

$10.39

52

Bolt

7512656

$6.23
