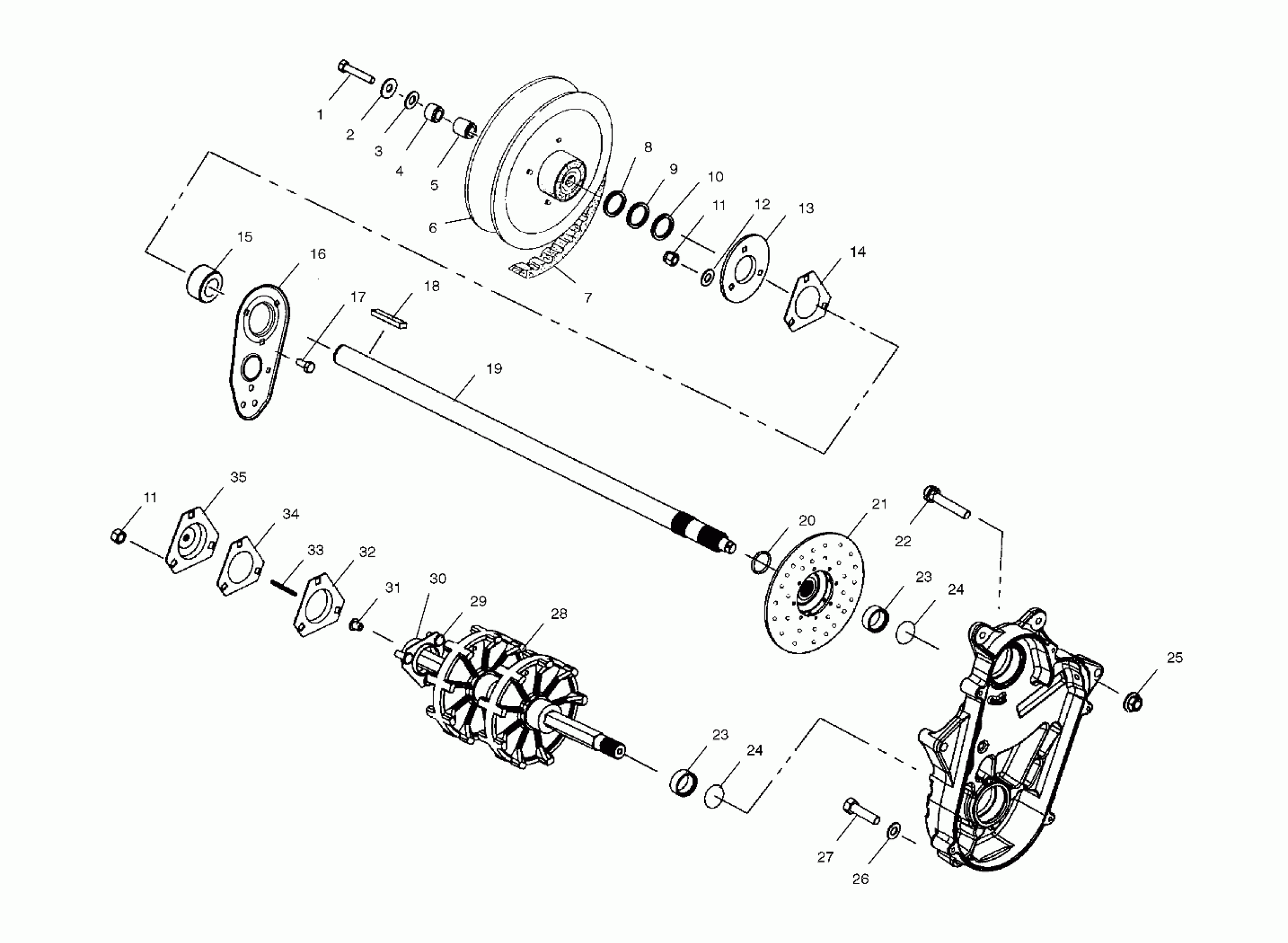

Polaris 440 PRO X - S02NX4CS DRIVE TRAIN - S02NX4CS (4977017701B08) Diagram

#

Description
Price

1

Bolt

7515301

Unavailable

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft

5133106

Unavailable

5

Spacer, Input Shaft

5020291

Unavailable

6

ASM., DRIVEN CLUTCH, 209 W/B [SEE DRIVEN CLUTCH PG. B14, REF. 15]

-------

Unavailable

7

Belt, Drive

3211080

$139.99

8

WASHER

7555917

Unavailable

9

WASHER

7555864

Unavailable

10

Bushing

7556509

Unavailable

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

Flangette w/Grease Zerk

5241359

$32.37

14

Gasket, Jackshaft

5811095

$2.41

15

Bearing, Jackshaft, 1"

3514519

$64.99

16

Flangette, Jackshaft Reinforcement

5245889-067

Unavailable

17

Bolt, Carriage

7512377

$4.79

18

Key

7721116

$12.94

19

Asm., Jackshaft [Incl. 20]

1332255

Unavailable

20

RING, RETAINING

7710422

$3.99

21

Disc, Brake

1910523

Unavailable

22

Bolt, Carriage

7515428

$4.79

23

SLEEVE, SEAL

5020588

$23.99

23

SLEEVE, SEAL

5020588

$23.99

24

O-RING

5410613

$1.99

24

O-RING

5410613

$1.99

25

Nut, Flange

7542423

$3.99

26

Washer

7558403

$4.79

27

Screw

7512492

$1.49

28

Asm., Drive Shaft [Incl. 29,30,31]

1590346

$411.49

29

ASM., FLANGETTE W/SCREWS

1012945

$114.99

30

BEARING

3514525

$31.99

31

Bushing, Speedometer, Metal

3280019

$11.99

32

Flangette

5243529

$13.75

33

Key, Speedometer, Square

3280017

$13.75

34

Gasket, Drive Adaptor

5830012

$2.41

35

Adaptor w/Zerk, Drive

3280116

$101.17
