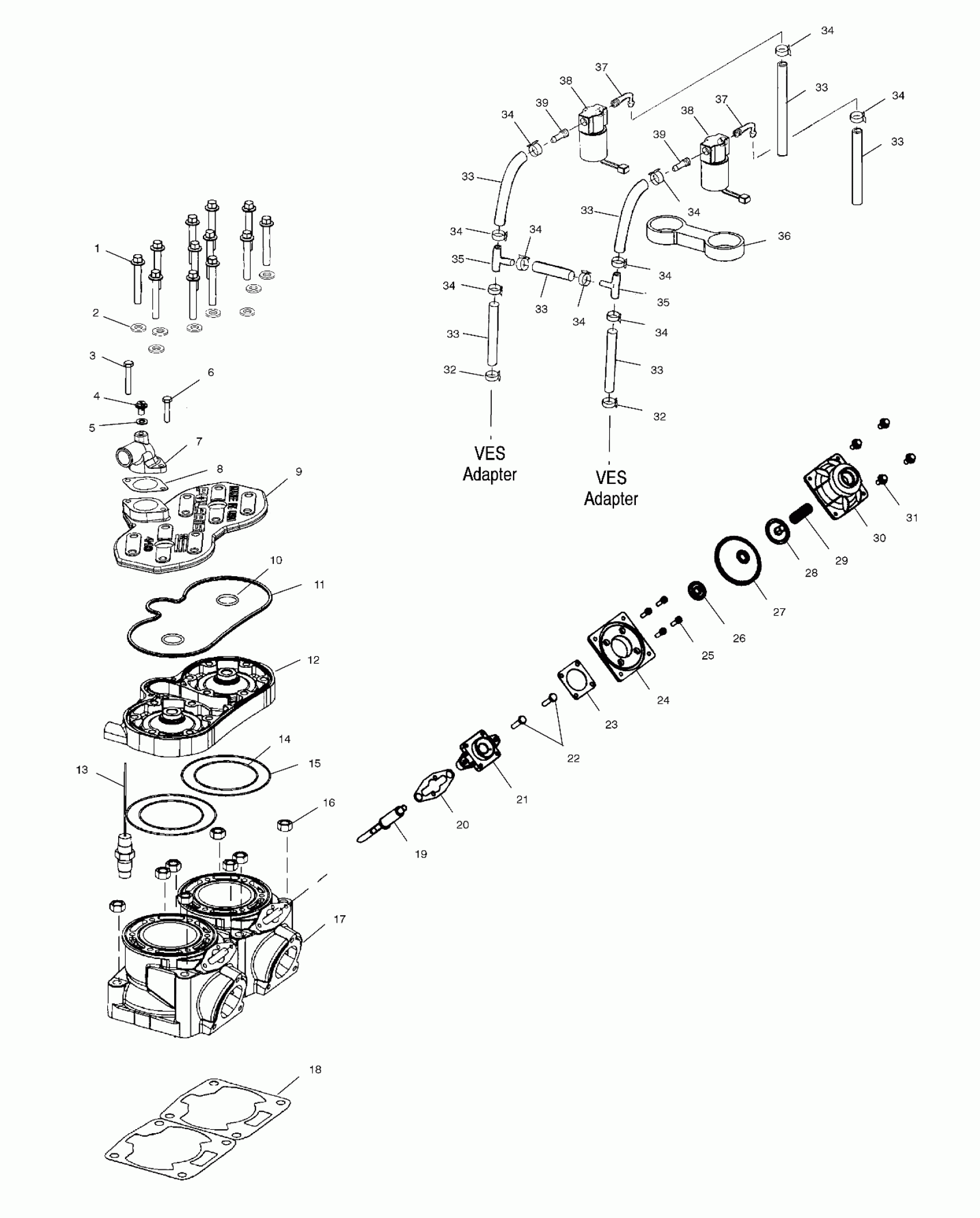

Polaris 440 PRO X - S02NX4CS CYLINDER - S02NX4CS (4977017701C11) Diagram

#

Description
Price

1

SCREW

7517281

$8.99

2

Washer

7556082

$7.19

3

SCREW

7516818

$5.59

4

SCREW

7517679

$13.59

5

WASHER, FLAT

7555998

$1.49

6

SCREW

7516822

$2.39

7

Cover, Thermostat

5630992

Unavailable

8

Gasket

5830113

$20.22

9

Cover, Head

5631204-366

$95.19

10

O-RING

5411411

$1.49

11

Seal, Rubber, Head Cover

5411465

$32.37

12

Kit, 92 Octane Cylinder Head (Incl. 8,10,11,14,15 and Clutch Weights)

2202188

$236.17

12

Head, Cylinder (High Octane)

3021299

$236.17

13

Sensor, Temperature

4010398

$36.41

14

O-Ring

5411199

$10.51

15

O-RING

5411359

$15.99

16

NUT

7547013

$1.99

17

Cylinder

3021304

Unavailable

18

Gasket, Cylinder Base

5811599

$34.99

19

Valve, Guillotine

1202159

$119.05

20

Gasket

5812087

$9.99

21

Housing w/Bushing

1201919

Unavailable

22

Screw

7516823

$3.19

23

Gasket, Housing

5433375

Unavailable

24

Adapter

1202037

$60.99

25

Screw

7517314

Unavailable

26

WASHER, BELLOWS

5132950

Unavailable

27

Bellows, Exhaust Valve

5412147

$44.51

28

Cap

5631152

Unavailable

29

Spring

7041786-01

$15.67

30

Housing, Bellows

5434175

Unavailable

31

BOLT

7516820

$5.59

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

T-Fitting

7052075

$9.59

35

T-Fitting

7052075

$9.59

36

Retainer, Solenoid

5412092

$35.99

37

Fitting

7052065

$7.19

37

Fitting

7052065

$7.19

38

Valve, Control

4010305

$119.99

38

Valve, Control

4010305

$119.99

39

Fitting

7052099

$4.79

39

Fitting

7052099

$4.79
