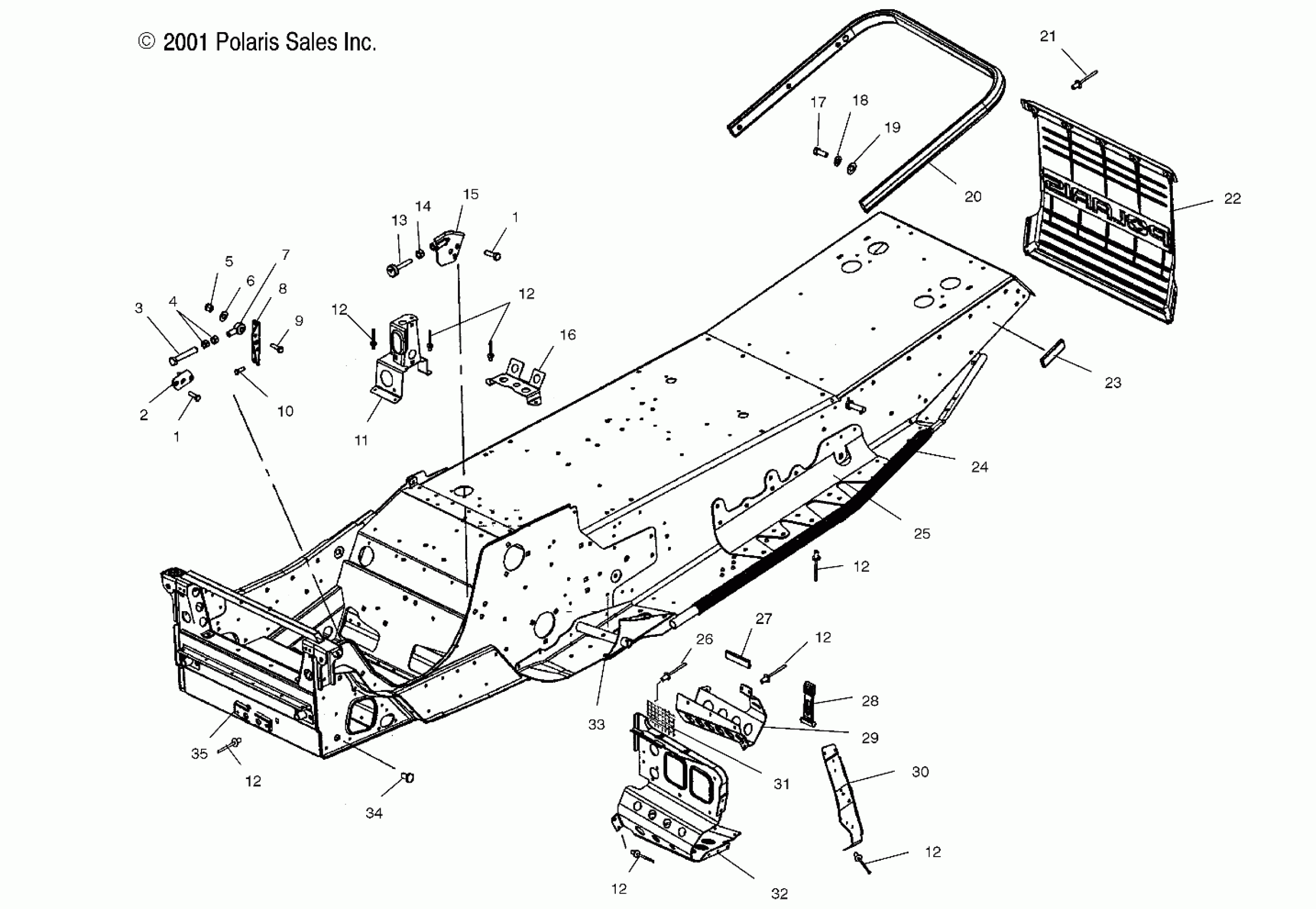

Polaris 440 PRO X - S02NX4CS CHASSIS - S02NX4CS (4977017701A03) Diagram

#

Description
Price

-

Asm., Chassis, Racer

1013647-309

Unavailable

1

SCREW

7517632

$5.59

1

SCREW

7517632

$5.59

2

Bracket, Torque Stop, Front

1013777

$41.59

3

Screw

7518061

Unavailable

4

NUT

7542401

$2.39

5

Nut, Nylok

7542439

$1.49

6

WASHER, FLAT

7555823

$3.99

7

Limiter, Torque

3021313

$53.59

8

Bracket, Torque Limiter Mount

5246096

$23.81

9

Screw

7512404

$3.99

10

Screw

7516730

$6.39

11

Bracket, CDI

5245802

$19.83

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

13

Stop, Torque

3021104

$20.22

14

NUT

7542404

$1.59

15

Stop, Torque

1013458

Unavailable

16

Bracket, Mount, Airbox

5245398

$22.23

17

BOLT

7512240

$3.99

18

WASHER, SPRING LOCK

7552801

$1.59

19

Washer, Flat

7558301

$1.49

20

Bumper, Rear

2632165-309

Unavailable

21

RIVET

7621472

$1.49

22

Flap, Snow

5434356-1106

Unavailable

23

Reflector, Red

2670133

$5.75

24

Grip, Tunnel Roll, LH

5132903

$45.24

24

Grip, Tunnel Roll, RH

5132904

$45.24

25

Brace, Tunnel, LH

5245820

$58.39

25

Brace, Tunnel, RH

5245821

$58.39

26

Rivet

7621470

$3.17

27

Pad, Clutch Guard

5812352

Unavailable

28

STRAP-AIRBOX TOP

5433150

$24.27

29

Footrest, Toe Clip, Upper, LH

5246002

$36.31

29

Footrest, Toe Clip, Upper, RH

5246003

Unavailable

30

Support, Footrest, LH

5246310

$19.83

30

Support, Footrest, RH

5246311

$32.37

31

Screen, Console

5246397

$19.03

32

Footrest, LH

5245999

Unavailable

32

Footrest, RH

5246001

$66.39

33

Mount, Trailing Arm, RH

1013650

Unavailable

33

Mount, Trailing Arm, LH

1013649

Unavailable

34

PLUG, HOLE

7080416

$5.65

35

Plate, Inner Radius Rod, Lower

5245307

$7.43
