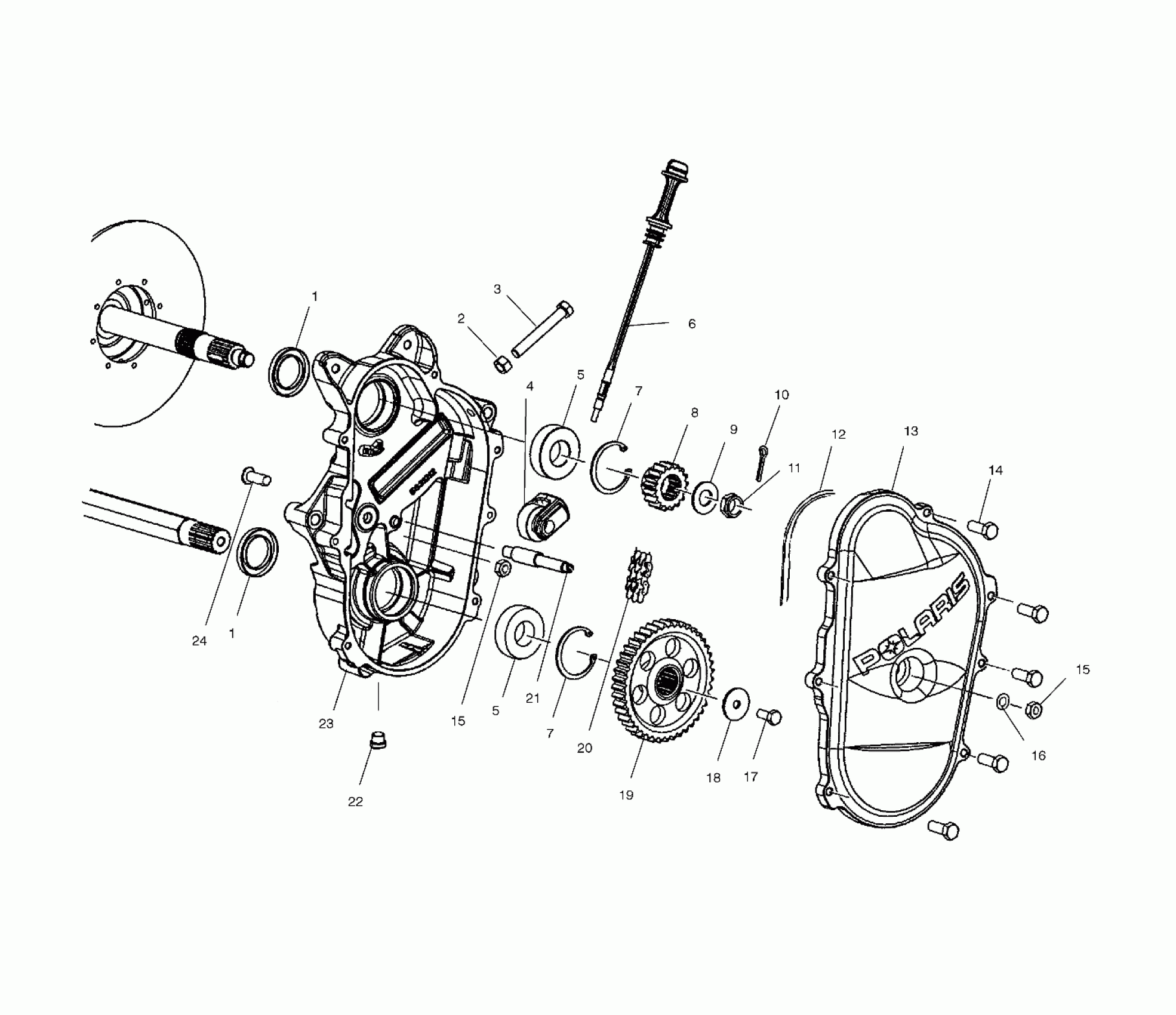

Polaris 440 PRO X - S02NX4CS CHAINCASE - S02NX4CS (4977017701B07) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

Asm., Tightener, Chaincase

1332257

$114.99

5

BEARING, BALL

3514309

$15.87

5

BEARING, BALL

3514309

$15.87

6

Dipstick

5431419

Unavailable

6

O-RING

5410675

$1.60

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

Sprocket, 20T, 3/4W

2900004

$109.99

9

Washer, Spring

7571620

$7.19

10

Pin, Cotter

7661203

$1.49

11

Nut

7547202

$5.59

12

Gasket, Chaincase

5411497

$20.22

13

Cover, Chaincase

5631213

Unavailable

14

SCREW

7512242

$2.39

15

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

15

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

16

Washer, Rubber, Dish

7555950

Unavailable

17

Screw

7517979

$3.99

18

Washer, Spring

7571618

$6.39

19

Sprocket, 42T, 3/4W

3221124

Unavailable

20

CHAIN, 74P, 3/4W

3221109

$164.99

21

Stud

7518009

$23.19

22

PLUG

7052115

$5.65

23

Chaincase

5133179

$113.32

24

Screw

7515477

$34.99
