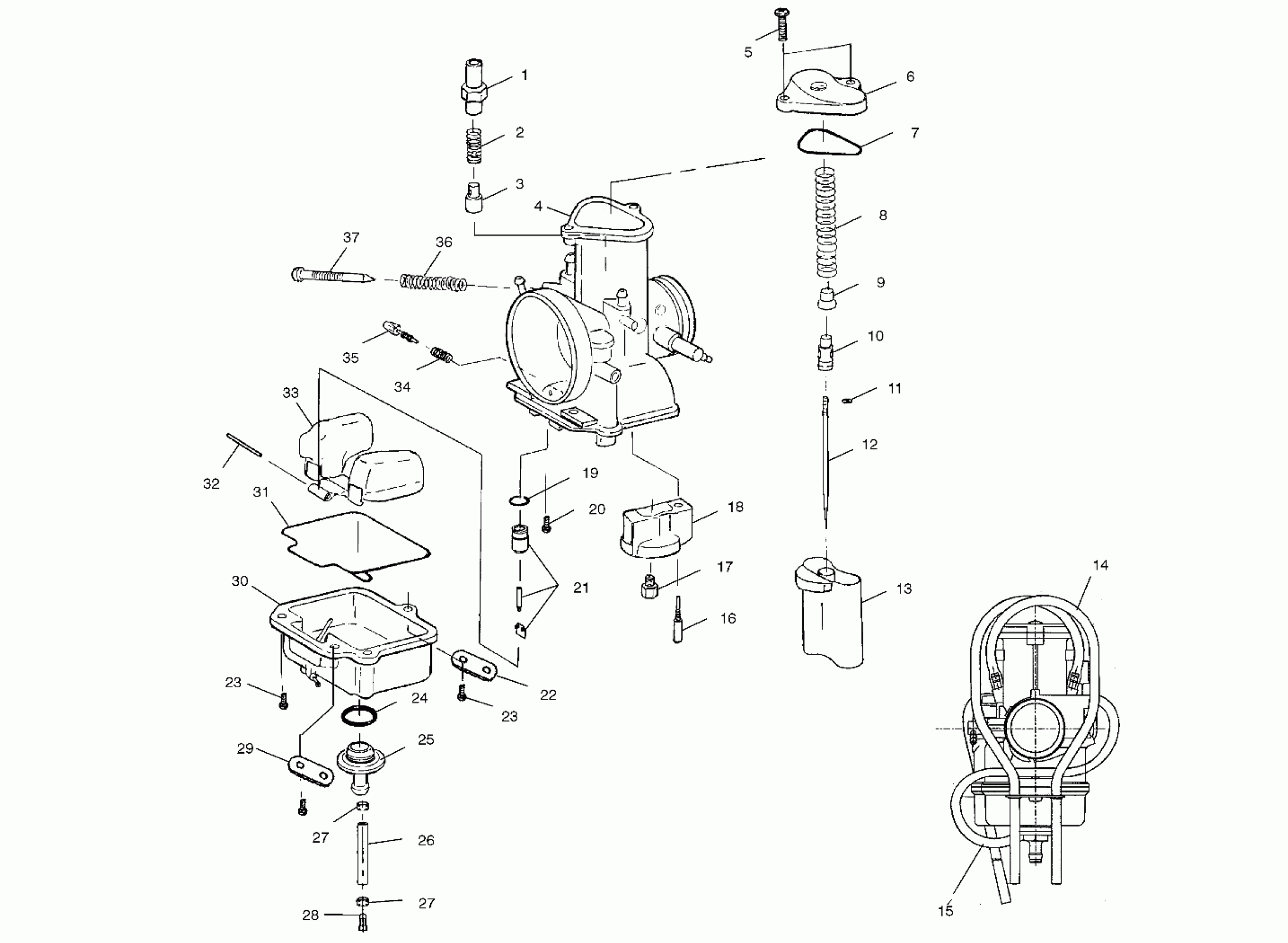

Polaris 440 PRO X - S02NX4CS CARBURETOR - S02NX4CS (4977017701C10) Diagram

#

Description
Price

1

Holder, Guide

3131086

$15.87

2

Spring

3130829

$12.94

3

Plunger

3131100

Unavailable

4

Asm., Carburetor [Incl. 1-3,5-25,31-36]

1253439

$619.99

5

Screw

3131066

Unavailable

6

Top, Mixing Chamber

3131136

$63.79

7

O-Ring

3131138

$18.99

8

Spring

3131106

Unavailable

9

Holder, Guide

3131054

$6.35

10

Ring

3131053

$25.59

11

E-Ring

3130868

$8.89

12

Needle, Jet [6GL64-61-2]

3131109

Unavailable

13

Valve, Piston

3131043

$133.56

14

Hose, Vent Line, Bulk

3131321

$28.15

15

Clip, Hose

3131411

$3.03

16

Jet, Pilot [#32.5]

3131028

$11.59

17

Jet, Main [#290]

3130132

$7.27

18

Holder

3131056

$38.71

19

Washer

3130949

$3.99

20

Screw

3131089

Unavailable

21

Valve, Needle

3131062

$60.70

22

Plate, Hose

3131403

$4.95

23

SCREW

3130933

$2.39

23

SCREW

3130933

$2.39

24

O-RING

3130239

Unavailable

25

Fitting

5020476

$10.63

26

Line, Fuel

8350017

Unavailable

27

HOSE CLAMP, RED

7080003

$1.49

27

HOSE CLAMP, RED

7080003

$1.49

28

Plug, Trap

5431893

$12.94

29

Plate, Hose

3130406

$6.63

30

Asm., Float Body

3131412

$53.59

31

O-Ring

3131105

$16.17

32

Pin, Float

3131060

$4.15

33

Float

3131102

$78.57

34

Spring, Air Adjuster

3130407

Unavailable

35

Screw, Air

3131063

$6.75

36

Spring, Throttle Adjuster

3131087

$3.97

37

Adjuster

3131088

$12.39
