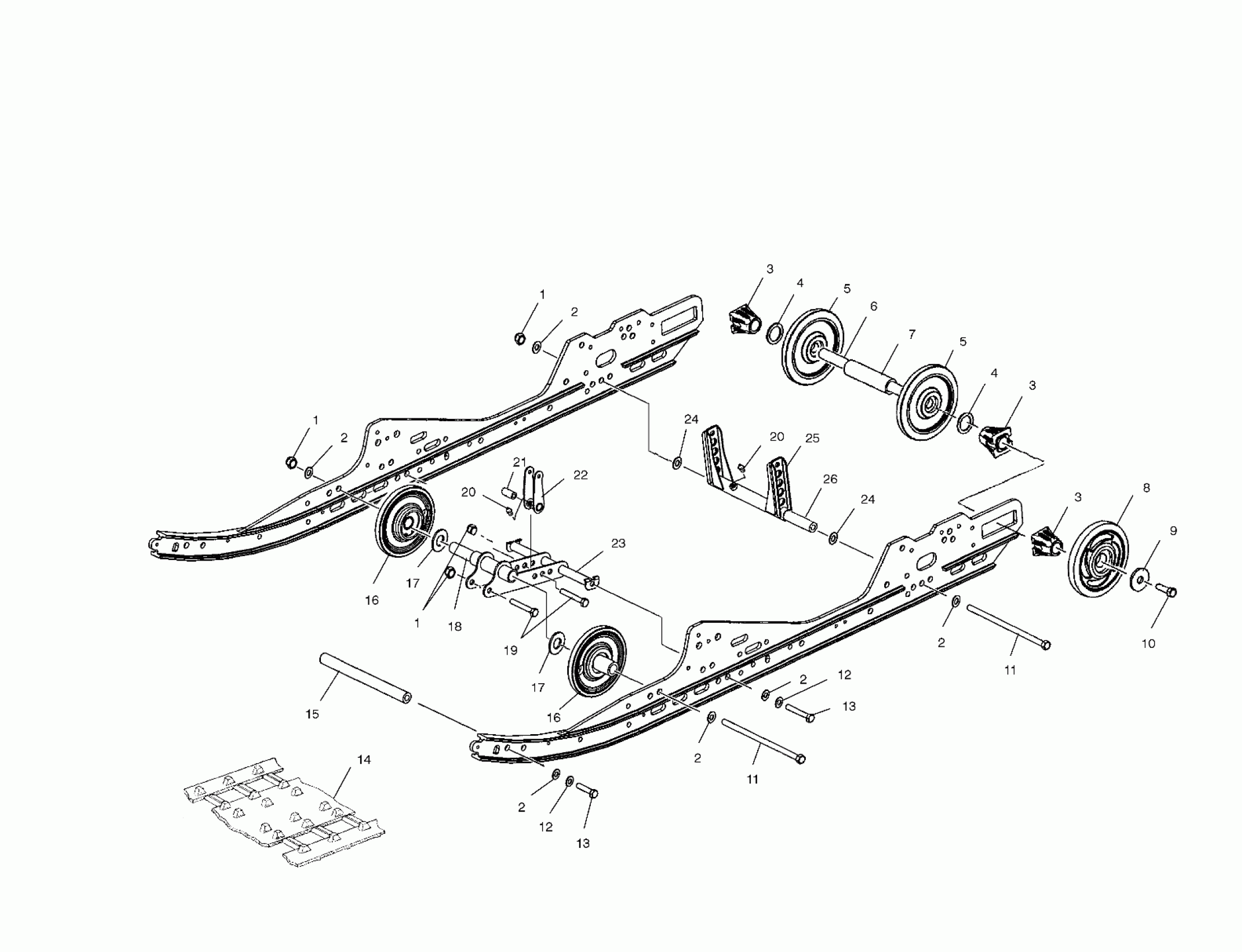

Polaris 440 PRO X FAN COOLED - S02NX4FS SUSPENSION - S02NX4FS (4977037703B08) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

3

SPACER-IDLER

5432535

$11.99

3

SPACER-IDLER

5432535

$11.99

3

SPACER-IDLER

5432535

$11.99

4

BUSHING

7555918

$1.59

4

BUSHING

7555918

$1.59

5

Wheel

1594087

$72.84

5

Wheel

1594087

$72.84

6

Shaft, Idler

5132066

$43.99

7

SPACER-IDLER, CENTER

5333283

$19.99

8

BEARING

3514384

$19.84

8

RING-RETAINING

7710444

$8.79

8

Asm., Idler Wheel

1590303-293

$48.56

9

WASHER

7556130

$6.39

10

BOLT

7517731

$1.49

11

SCREW

7517921

$23.99

11

SCREW

7517921

$23.99

12

Washer, Spring Lock

7552603

$1.49

12

Washer, Spring Lock

7552603

$1.49

13

Screw

7517247

$3.19

13

Screw

7517247

$3.19

14

CLIP, GUIDE

5222840

Unavailable

14

Track

5411475

Unavailable

15

Shaft, Pivot Arm

5020723

$29.99

16

Asm., Wheel

1541642

$48.56

16

Asm., Wheel

1541642

$48.56

17

Bushing

7556301

$3.19

17

Bushing

7556301

$3.19

18

Shaft

5133232

$28.32

19

SCREW

7515417

$4.79

20

FITTING-LUBRICATION 1/4-28

7080424

$4.79

20

FITTING-LUBRICATION 1/4-28

7080424

$4.79

21

Bushing

5133233

$11.99

22

Arm, Shock Pivot

1541638-067

$49.59

23

Mount, Shock

1541711-067

$109.99

24

Washer, Flat

7555893

$1.49

24

Washer, Flat

7555893

$1.49

25

Arm, Pivot, Rear

1541713-067

$254.99

26

SHAFT

5334026

$28.32
