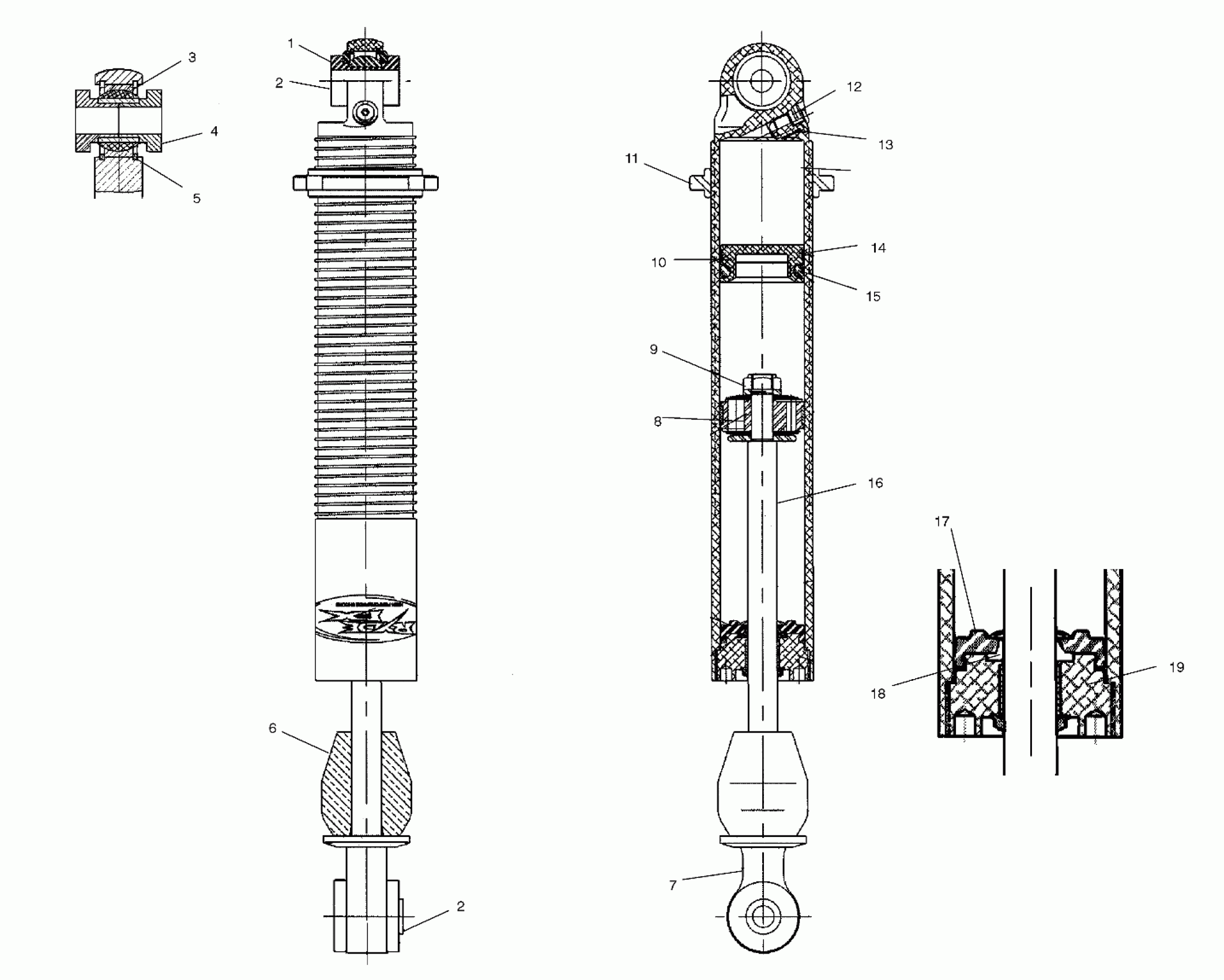

Polaris 440 PRO X FAN COOLED - S02NX4FS SHOCK (IFS)(RYDE FX) - S02NX4FS (4977037703B13) Diagram

#

Description
Price

-

Kit, Piston Valving

2200618

Unavailable

-

Shock, IFS, IFP

7042126

$414.99

1

Bushing

1700036

$7.99

2

Sleeve

1700079

$9.59

2

Sleeve

1700079

$9.59

3

Bearing, Spherical

1700068

$41.59

4

Spacer

1700066

Unavailable

5

Ring, Snap

1700067

$6.79

6

Bumper, Compression

1700042

Unavailable

7

Mount, Upper

1700009

Unavailable

8

Washer, Back-Up

1700078

$9.59

8

Band, Wear

1700031

$28.32

8

Washer, Top-Out

1700077

$10.39

8

Asm., Piston

1700109

Unavailable

9

Nut

1700057

$9.59

10

IFP

1700023

$45.59

11

Nut, Spring Retainer

1700033

$23.81

12

Screw, Valve

1700056

$6.94

13

Asm., Pressure Valve

1700184

Unavailable

14

Band, Wear, IFP

1700032

$24.99

15

O-Ring, IFP

1700048

$11.60

16

Shaft

1700158

$51.59

17

Seal, Cap

1700022

Unavailable

18

Seal, Rod

1700021

$20.22

19

Asm., Cylinder Head

1700007

$106.49
