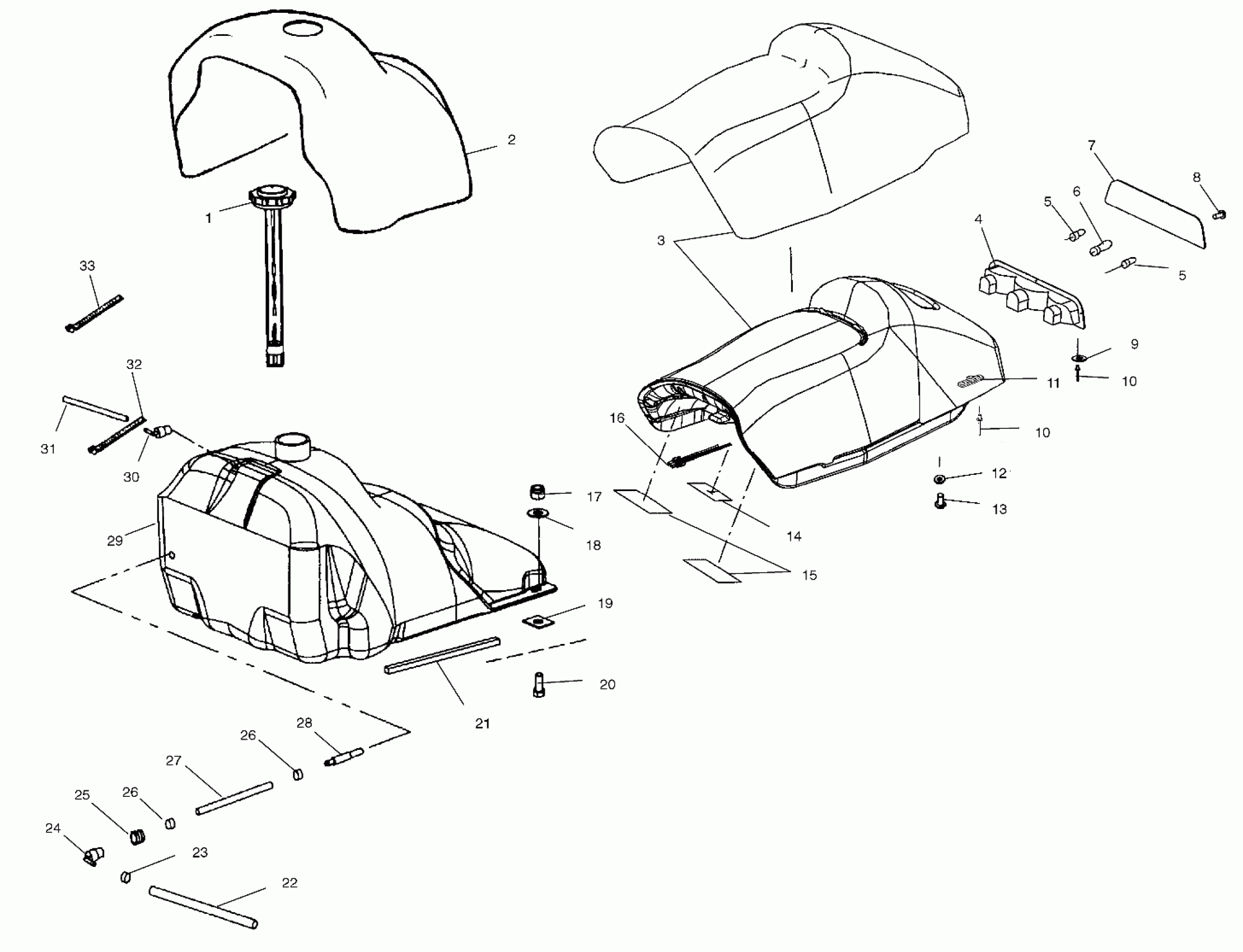

Polaris 440 PRO X FAN COOLED - S02NX4FS SEAT and GAS TANK - S02NX4FS (4977037703A04) Diagram

#

Description
Price

1

Cap, Fuel

1240066

Unavailable

2

Asm., Tank Cover

2682821

Unavailable

3

Asm., Seat [Incl. 3-4,16]

2682956

Unavailable

3

Cover, Seat

2683014

Unavailable

4

Housing, Taillight

5433341

Unavailable

5

Bulb, Taillight

4030024

$4.84

5

Bulb, Taillight

4030024

$4.84

6

Bulb, Brakelight

4030045

Unavailable

7

Lens

5430423

Unavailable

8

Screw

7511840

Unavailable

9

WASHER

7555727

$1.49

10

RIVET

7621319

$1.49

10

RIVET

7621319

$1.49

11

NUT, SEAT

5631194

$4.99

12

Washer, Flat

7558301

$1.49

13

SCREW

7517219

$4.79

14

Gasket, Wire Harness

5812291

Unavailable

15

Patch5812291

5812289

$2.47

16

Harness, Taillight

2460399

Unavailable

17

Nut, Nylok

7542122

$1.49

18

WASHER, FLAT

7555960

$3.99

19

Nut, Speed

7670021

$6.99

20

BOLT, CARRIAGE

7512193

$2.39

21

FOAM-SEAL,REAR COOLER

5810947

$4.03

22

Line, Fuel

8350018

Unavailable

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

Fitting

7052259

Unavailable

25

Grommet, Fitting, Flanged

7052028

$6.39

26

RING, COMPRESSION

7080402

$1.60

26

RING, COMPRESSION

7080402

$1.60

27

LINE, FUEL

8350019-600

Unavailable

28

Pickup w/Filter, Fuel

7052301

$12.94

29

Asm., Fuel Tank, Translucent [Incl. 28-30]

2520267

Unavailable

30

Fitting

7052095

$4.79

31

LINE, OIL

8450061-600

Unavailable

32

CABLE TIE, RELEASABLE

7080804

$3.22

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
