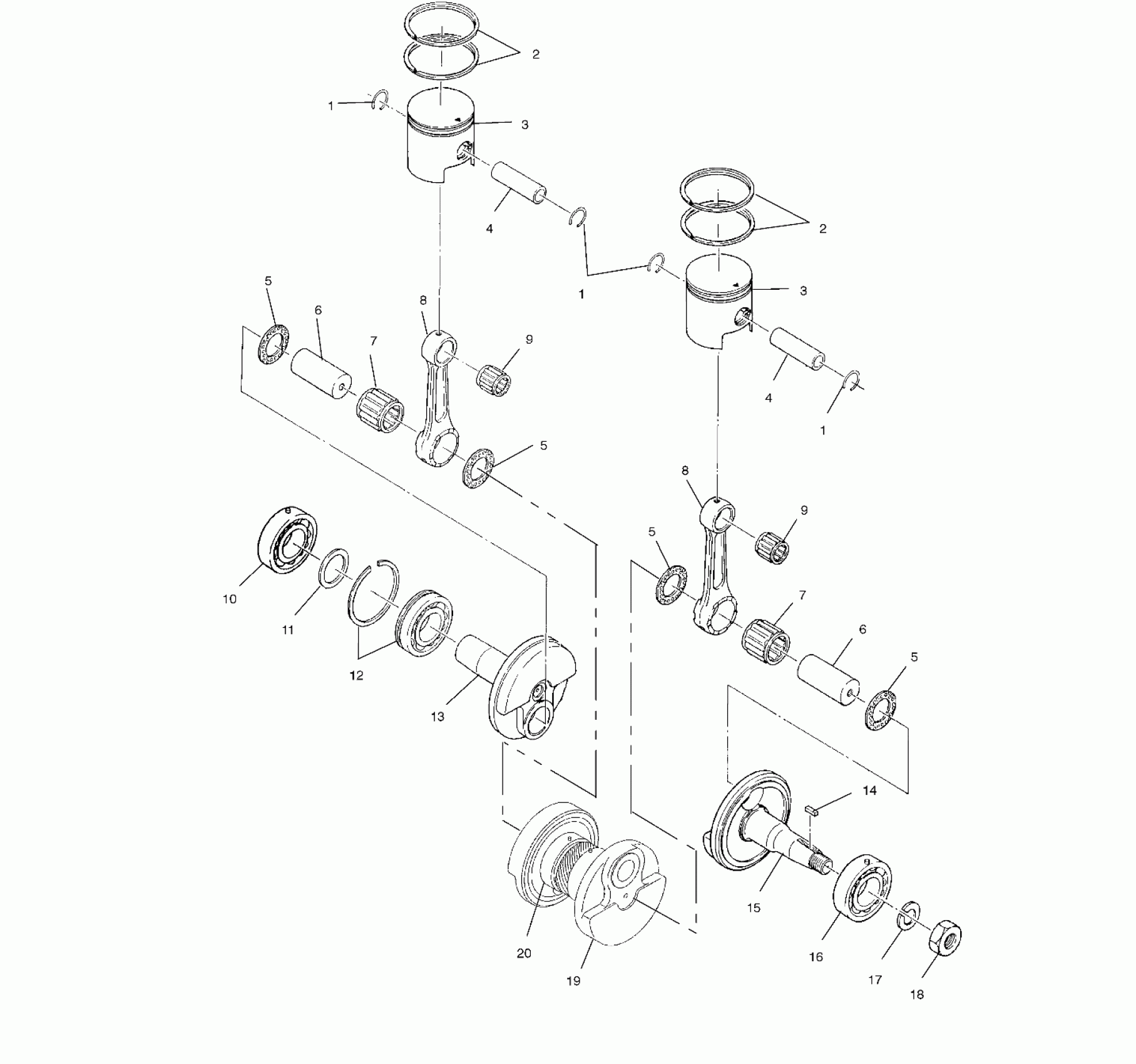

Polaris 440 PRO X FAN COOLED - S02NX4FS PISTON and CRANKSHAFT - S02NX4FS (4977037703C07) Diagram

#

Description
Price

1

Clip, Piston Pin

3084167

$6.39

1

Clip, Piston Pin

3084167

$6.39

1

Clip, Piston Pin

3084167

$6.39

2

Ring, Piston [Standard]

3087162

$30.46

2

Ring, Piston [Standard]

3087162

$30.46

3

Piston Set [Standard][Incl. 1]

3087178

Unavailable

3

Piston Set [Standard][Incl. 1]

3087178

Unavailable

4

Pin, Piston

3083849

$19.83

4

Pin, Piston

3083849

$19.83

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

6

CRANK PIN 2

3083456

Unavailable

6

CRANK PIN 2

3083456

Unavailable

7

BEARING, END, LARGE

3086390

$1,634.99

7

BEARING, END, LARGE

3086390

$1,634.99

8

ROD, CONNECTING

3240083

$1,634.99

8

ROD, CONNECTING

3240083

$1,634.99

9

BEARING, END, SMALL

3083216

$16.57

9

BEARING, END, SMALL

3083216

$16.57

10

BEARING, BALL

3085754

$64.99

11

SPACER

3085677

$11.99

12

BEARING, BALL

3085753

$64.99

13

Crankshaft 3 [PTO End]

3085675

Unavailable

14

Key

3080130

Unavailable

15

Crankshaft [Mag End]

3087177

$529.99

15

Asm., Crankshaft [Incl. 5-8,10-13,15,19]

3087176

$1,684.99

16

BEARING, BALL

3084681

Unavailable

17

Washer

3084457

Unavailable

18

NUT

3083093

$19.99

19

Crankshaft 2 [Center][Incl. 6]

3085674

$694.99

20

BEARING, BALL

3084586

$44.99
