Partiron

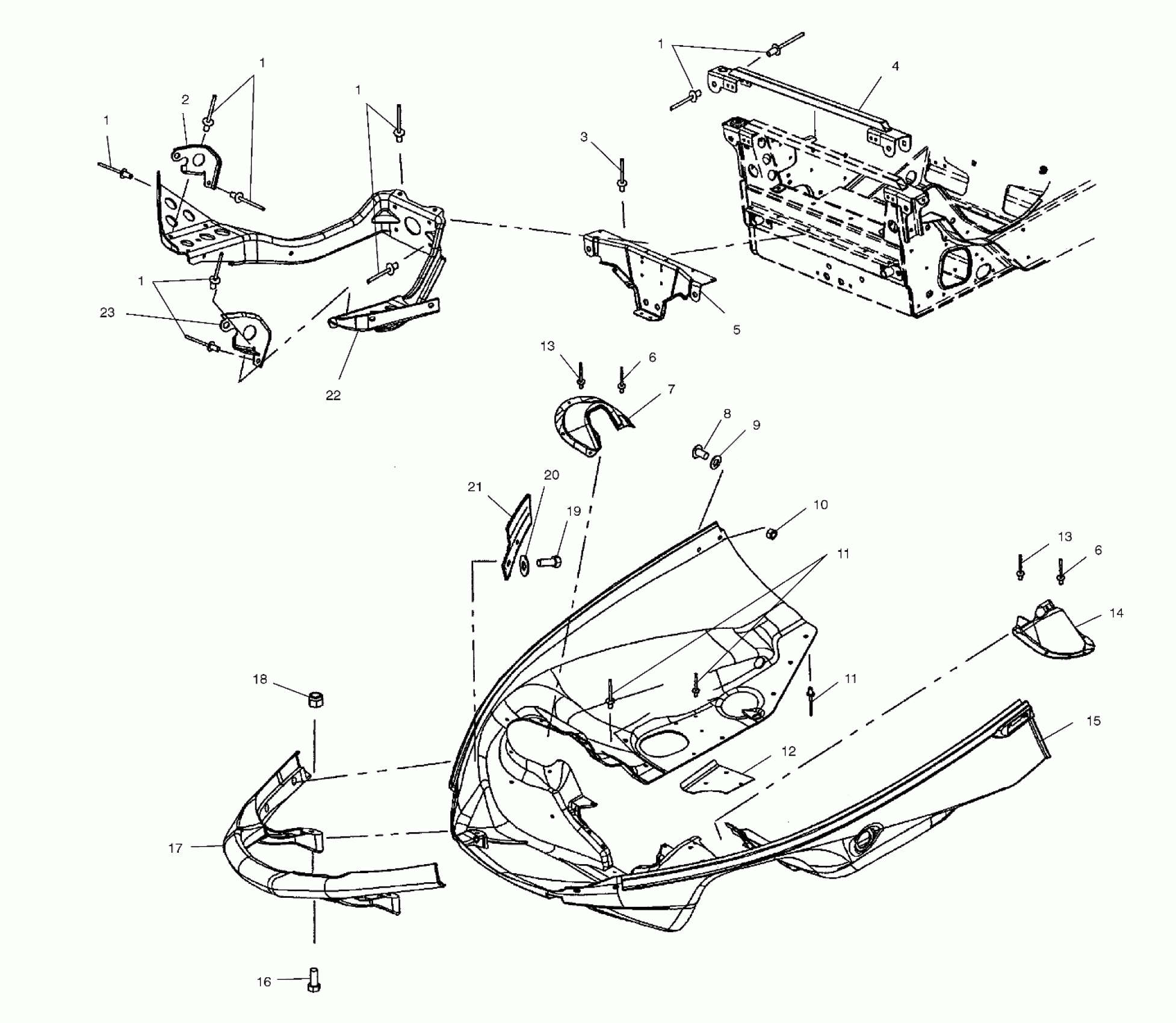

Polaris 440 PRO X FAN COOLED - S02NX4FS NOSEPAN - S02NX4FS (4977037703A05) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, RH

5243992-067

$104.99

3

RIVET

7621472

$1.49

4

Brace, Cross

1013719-067

$34.71

5

Bracket, Radius Rod Support

5245740-067

$164.79

6

RIVET

7621418

$1.49

6

RIVET

7621418

$1.49

7

Cover, Shock Tower, RH

5434388

Unavailable

7

Foil

5812041

Unavailable

7

Foil

5811948

Unavailable

8

Screw

7515166

$3.19

9

WASHER

7555827

$3.99

10

Nut, Nylok

7542122

$1.49

11

RIVET

7621467

$1.49

11

RIVET

7621467

$1.49

12

Shield, Heat Exhaust, Extended

5245853

$11.59

13

RIVET

7621479

$1.99

13

RIVET

7621479

$1.99

14

Cover, Shock Tower, LH

5434387

$33.91

15

Nosepan

5434344-293

$355.99

16

Bolt

7512163

$3.99

17

Bumper, Front

5433518-070

$64.75

18

NUT, NYLOK

7542153

$1.59

19

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

20

WASHER, SPRING LOCK

7552801

$1.59

21

Guide, Hood, LH

5244888

Unavailable

21

Guide, Hood, RH

5244889

Unavailable

22

Brace, Pan, Lower

5244050

$137.60

23

Hinge, Pivot, Lower, LH

5243991-067

$104.99
