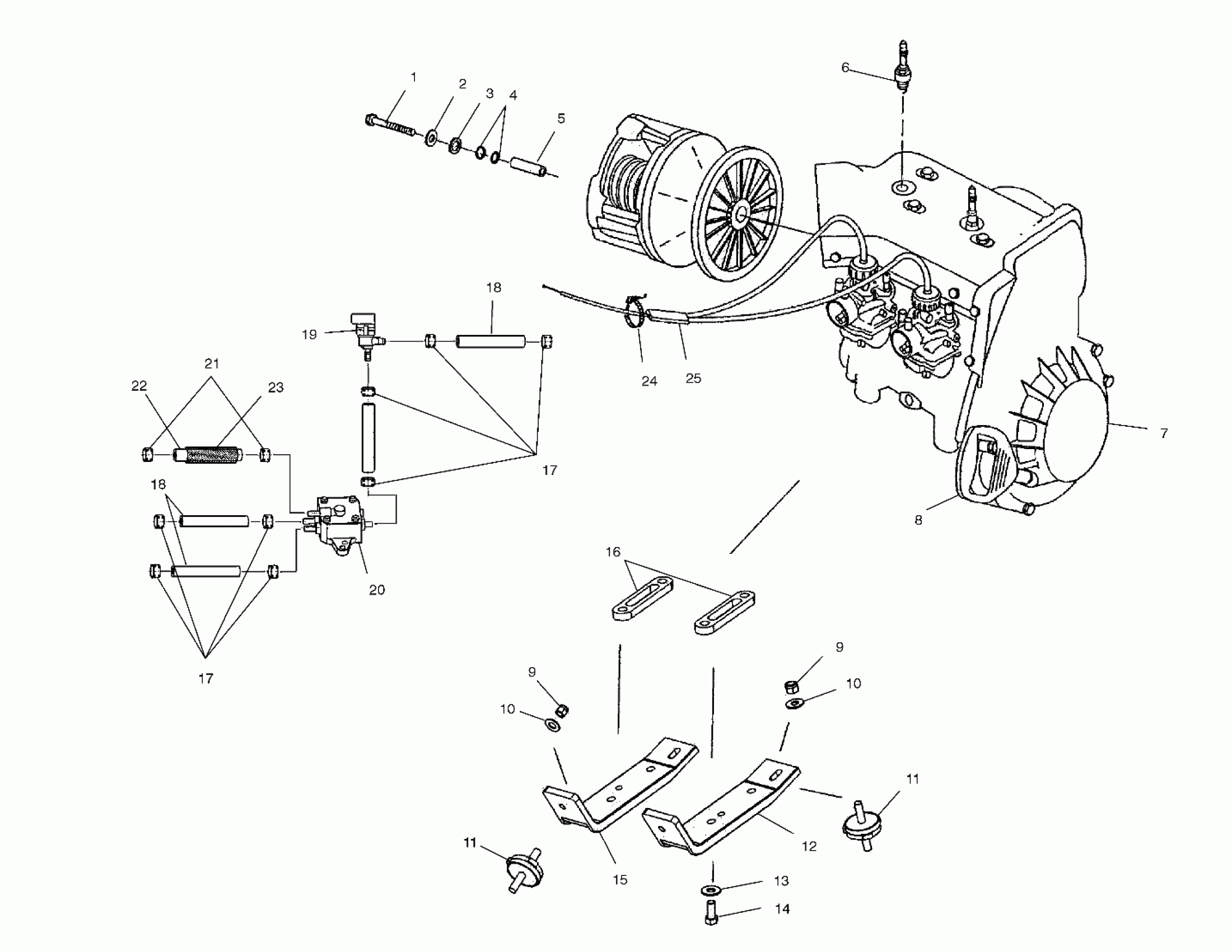

Polaris 440 PRO X FAN COOLED - S02NX4FS ENGINE MOUNTING - S02NX4FS (4977037703C02) Diagram

#

Description
Price

1

SCREW

7517776

$34.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

Washer, Clutch Retainer, Short

5010287

$12.99

4

O-RING, CLUTCH BOLT

5410507

$1.49

5

SPACER, CLUTCH BOLT

5020513

$44.99

6

SPARK PLUG-NGK BR9ES

3070163

$3.99

7

Engine, Short Block [EC45PM030] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requir

3087152

$1,111.11

8

Handle, Recoil

5431499-070

$15.48

9

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

9

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

10

Washer, Flat

7555893

$1.49

10

Washer, Flat

7555893

$1.49

11

Mount, Engine

3021244

Unavailable

11

Mount, Engine

3021244

Unavailable

12

Strap, Engine Mount, RH

5245276

$62.39

13

Washer, Spring Lock

7553101

$3.99

14

Screw

7517911

$3.59

15

Strap, Engine Mount, LH

5245275

$62.39

16

Spacer, Engine

5245389

$12.55

17

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

17

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

Line, Fuel

8350018-600

Unavailable

18

Line, Fuel

8350018-600

Unavailable

19

Valve, Fuel Shut-Off, 90 Degree

7052249

$24.27

20

ASM., FUEL PUMP [SEE FUEL PUMP PG. C11, REF. 3]

-------

Unavailable

21

HOSE CLAMP, RED

7080003

$1.49

22

Line, Fuel

8450040-600

Unavailable

23

Tubing, Convoluted

8360052-15

Unavailable

24

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

25

Cable, Throttle

7080916

Unavailable
