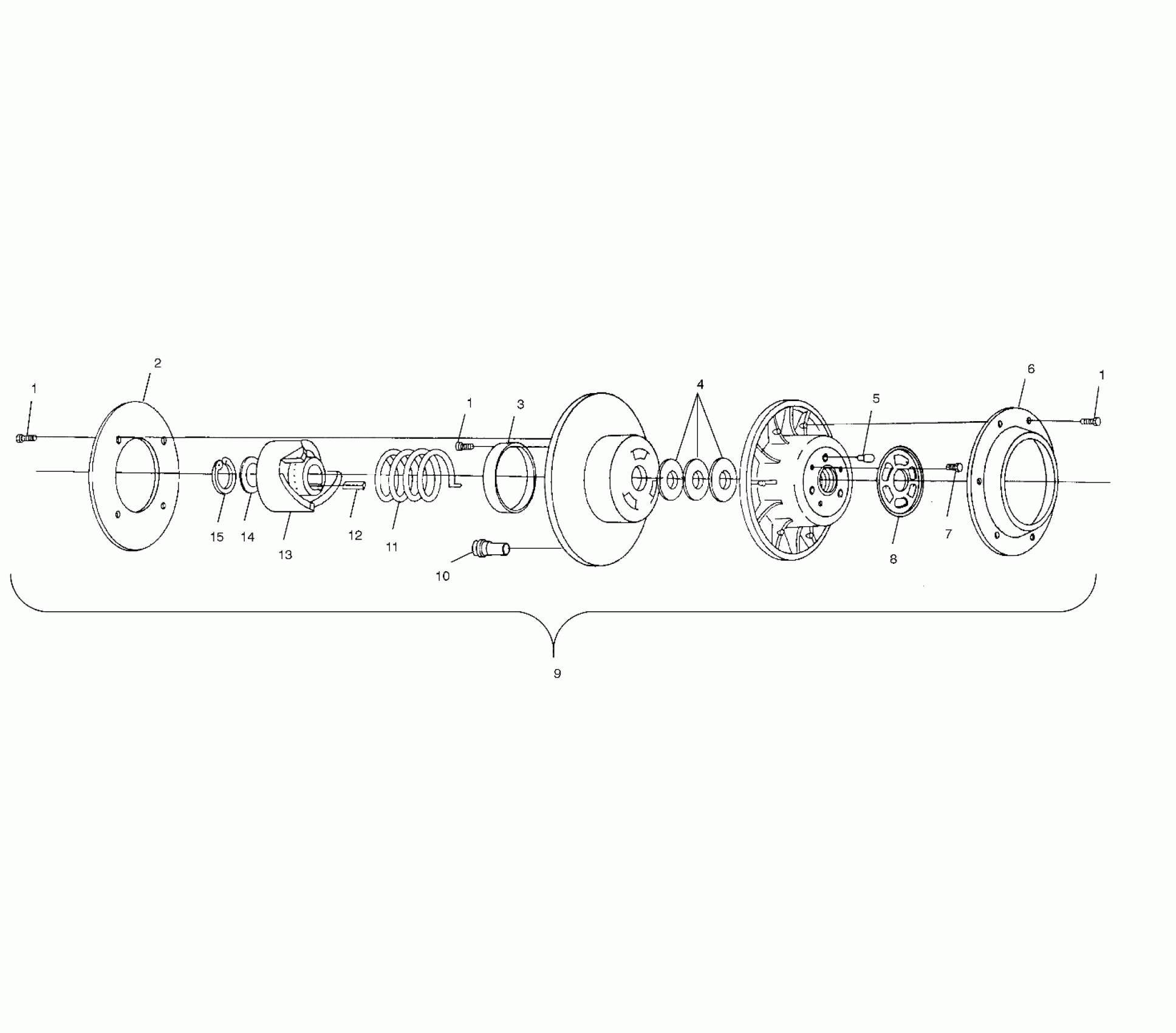

Polaris 440 PRO X FAN COOLED - S02NX4FS DRIVEN CLUTCH - S02NX4FS (4977037703B12) Diagram

#

Description
Price

1

Screw

7512048

Unavailable

1

Screw

7512048

Unavailable

1

Screw

7512048

Unavailable

2

Plate, Driven, Vented

5243158

$131.99

3

Bushing, Driven, Large DU

3569803

Unavailable

4

Washer [.03]

7556804

Unavailable

4

Washer [.02]

7555898

Unavailable

4

Washer [.025]

7556076

Unavailable

4

Washer [.075]

7555865

Unavailable

5

Pin, Driven

5020653

$34.99

6

Cap, Driven, Vented

5243157

Unavailable

7

BOLT

7515133

$3.99

8

Cam, Driven

5222878

$29.03

9

Asm., Driven Clutch, Basic, 204 W/B [Incl. All Less 2,6,11,13]

1321927

Unavailable

10

Button, Ramp

5430466

$6.46

11

Spring, Clutch, Silver/Blue

7041646

$69.99

12

Key

7721103

$5.65

13

Ramp, Driven, R49

5133023

Unavailable

14

Washer

7556804

$1.49

15

RING, RETAINING

7714804

$9.59
