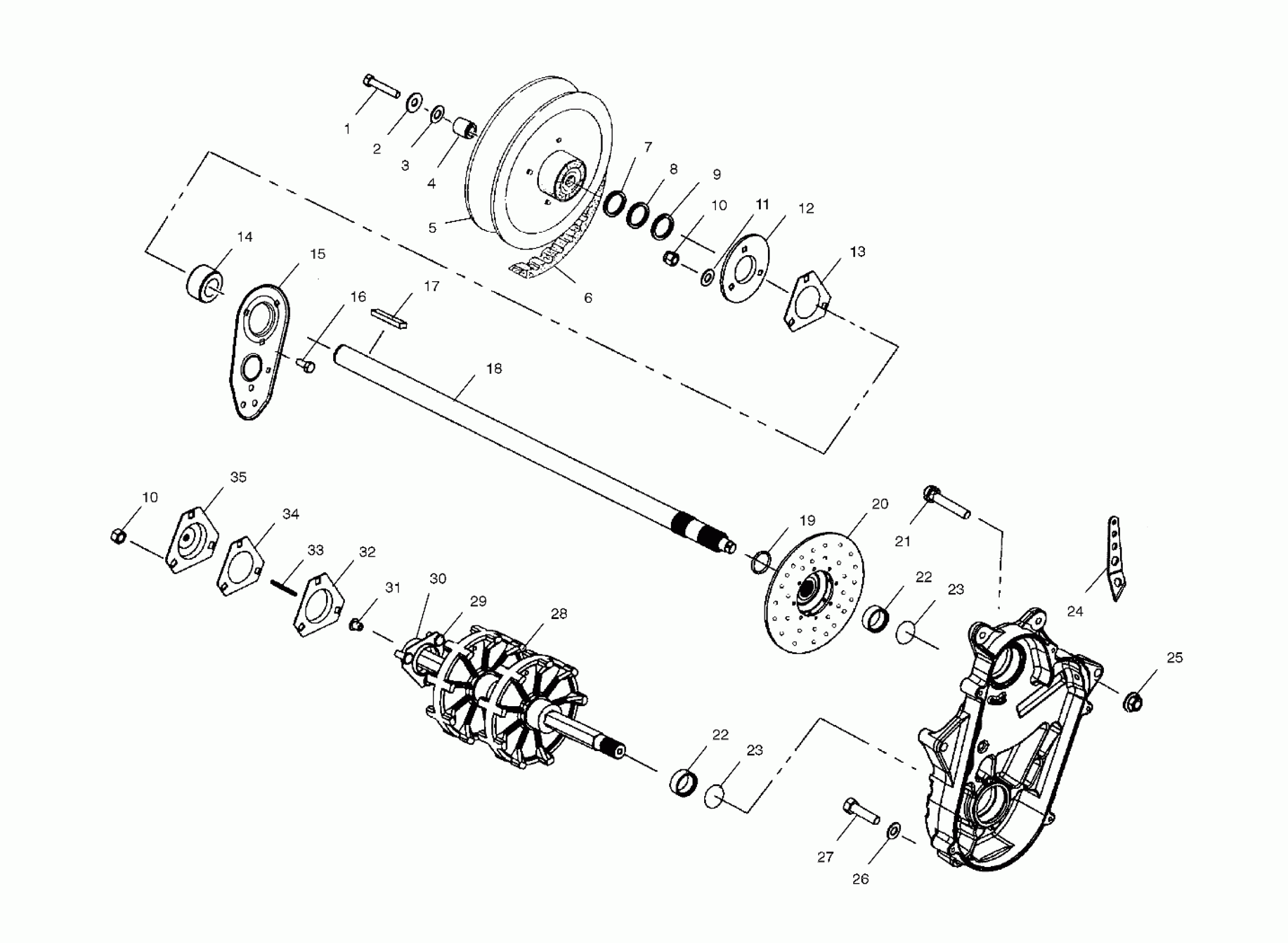

Polaris 440 PRO X FAN COOLED - S02NX4FS DRIVE TRAIN - S02NX4FS (4977037703B06) Diagram

#

Description
Price

1

Bolt

7515301

Unavailable

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft

5133106

Unavailable

5

ASM., DRIVEN CLUTCH, BASIC, 204 W/B [SEE DRIVEN CLUTCH PG. B12, REF. 9]

-------

Unavailable

6

Belt, Drive

3211078

$109.99

7

WASHER

7555917

Unavailable

8

WASHER

7555864

Unavailable

9

Bushing

7556509

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Flangette w/Grease Zerk

5241359

$32.37

13

Gasket, Jackshaft

5811095

$2.41

14

Bearing, Jackshaft, 1"

3514519

$64.99

15

Flangette, Jackshaft Reinforcement

5245889-067

Unavailable

16

Bolt, Carriage

7512377

$4.79

17

Key

7721128

$10.39

18

Asm., Jackshaft [Incl. 19]

1332254

Unavailable

19

RING, RETAINING

7710422

$3.99

20

Disc, Brake

1910403

Unavailable

21

Bolt, Carriage

7515428

$4.79

22

SLEEVE, SEAL

5020588

$23.99

22

SLEEVE, SEAL

5020588

$23.99

23

O-RING

5410613

$1.99

23

O-RING

5410613

$1.99

24

Bracket, Retainer, Exhaust

5246202

$6.63

25

Nut, Flange

7542423

$3.99

26

Washer

7558403

$4.79

27

Screw

7512492

$1.49

28

Asm., Drive Shaft [Incl. 29,30,31]

1590346

$411.49

29

ASM., FLANGETTE W/SCREWS

1012945

$114.99

30

BEARING

3514525

$31.99

31

Bushing, Speedometer, Metal

3280019

$11.99

32

Flangette

5243529

$13.75

33

Key, Speedometer, Square

3280017

$13.75

34

Gasket, Drive Adaptor

5830012

$2.41

35

Adaptor w/Zerk, Drive

3280116

$101.17
