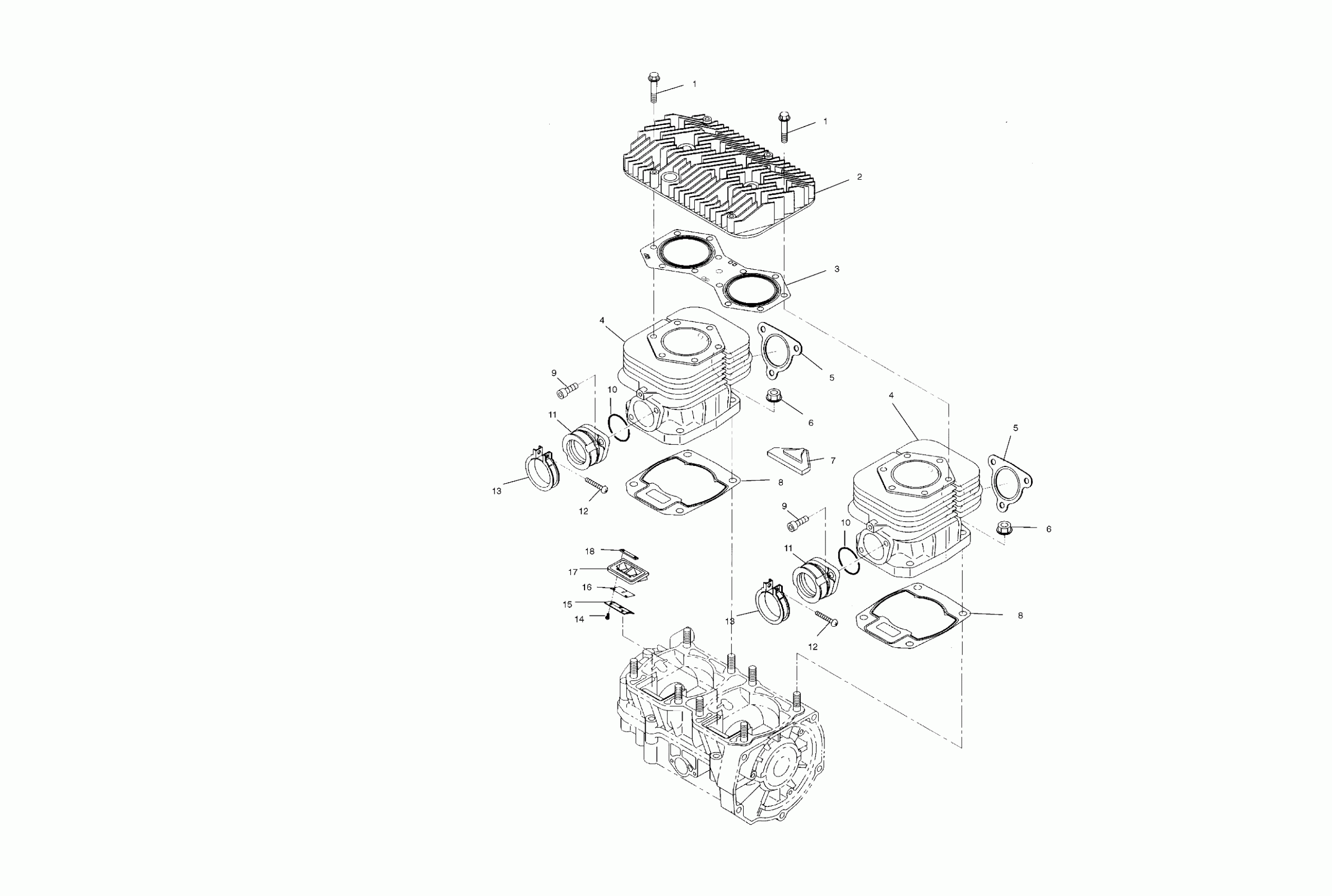

Polaris 440 PRO X FAN COOLED - S02NX4FS CYLINDER - S02NX4FS (4977037703C06) Diagram

#

Description
Price

1

BOLT, FLANGE

3084271

Unavailable

1

BOLT, FLANGE

3084271

Unavailable

2

Head, Cylinder

3087175

Unavailable

3

Gasket, Head

3085668

$43.39

4

Cylinder

3087174

Unavailable

4

Cylinder

3087174

Unavailable

5

GASKET, EXHAUST

3085714

$29.99

5

GASKET, EXHAUST

3085714

$29.99

6

Nut, Flange

3082911

$1.99

6

Nut, Flange

3082911

$1.99

7

Cover, Baffle, Cylinder

3085692

$24.27

8

Gasket

3085666

Unavailable

8

Gasket

3085666

Unavailable

9

Bolt

3081330

$3.99

9

Bolt

3081330

$3.99

10

O-RING

3085619

$20.22

10

O-RING

3085619

$20.22

11

Adaptor [Incl. 10]

3085670

Unavailable

11

Adaptor [Incl. 10]

3085670

Unavailable

12

SCREW

3081497

$2.39

12

SCREW

3081497

$2.39

13

Asm., Band [Incl. 12]

3083166

$19.84

13

Asm., Band [Incl. 12]

3083166

$19.84

14

Screw and Washer

3085717

$4.75

15

STOPPER

3086387

$12.94

16

Valve

3085715

$8.89

17

Asm., Valve, Reed [Incl. 14-18]

3086386

$60.70

18

Plate

3086388

Unavailable
