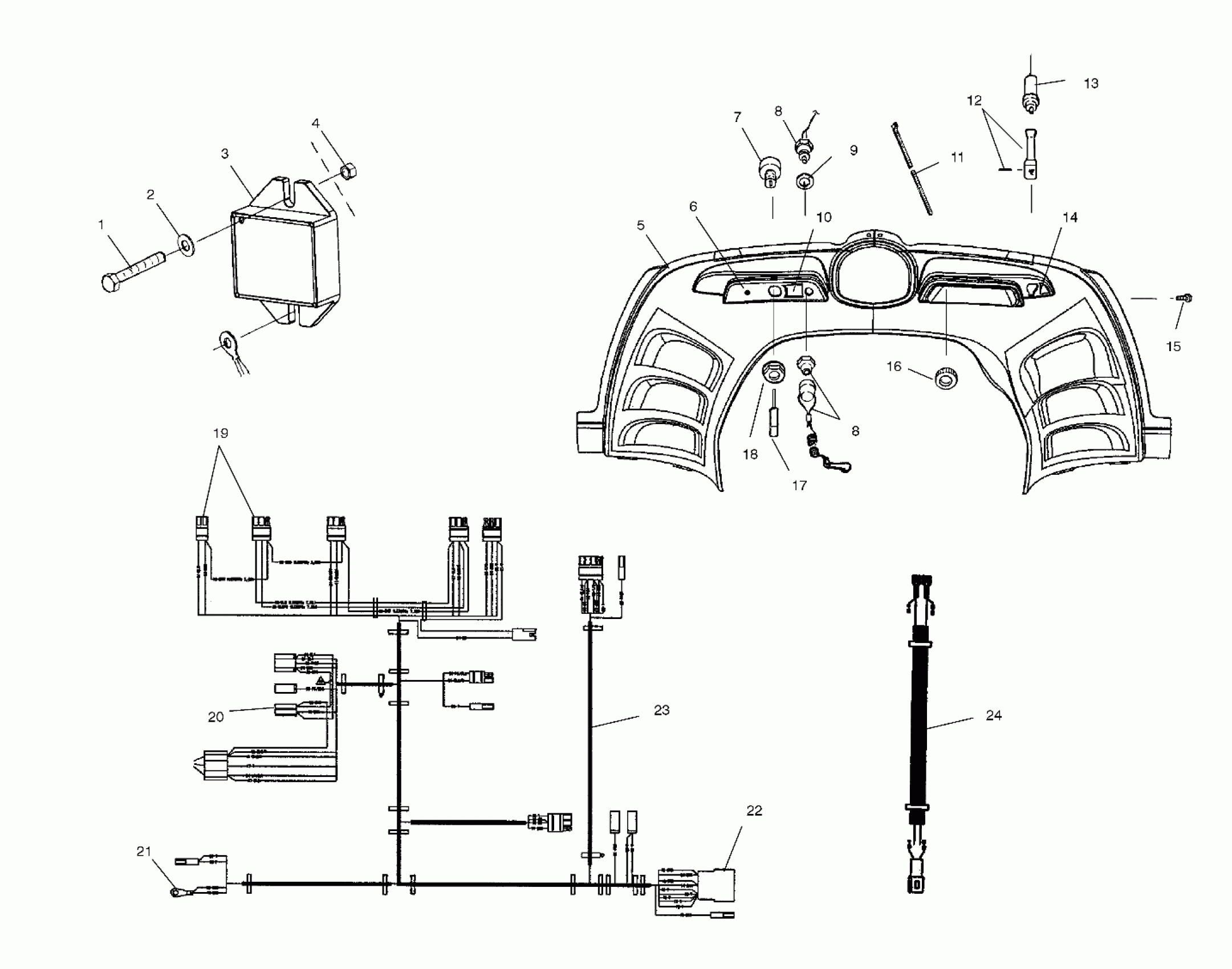

Polaris 440 PRO X FAN COOLED - S02NX4FS CONSOLE - S02NX4FS (4977037703A11) Diagram

#

Description
Price

1

Screw

7512031

$2.23

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator

4010301

Unavailable

4

Nut, Nylok

7541925

$1.49

5

Console

5434103

Unavailable

6

HAIRPIN, COTTER

7661124

$3.99

6

Switch, Heater, Hi/Lo

4110263

Unavailable

7

Kit, Ignition Switch

2201614

$89.03

8

Switch, Tether

4010187

Unavailable

8

Switch, Tether

4010187

Unavailable

9

Bushing

7558707

$4.79

10

Decal, Ignition

7079783

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

Lever, Choke [Incl. Pin]

5432943

Unavailable

13

Cable, Choke Control [Incl. 12,17]

7080290

$105.22

14

Decal, Choke

7170061

Unavailable

15

Screw

7515199

$1.49

16

Nut, Choke

5432944

$8.79

17

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

18

Nut, Ignition

7547035

$8.79

19

Housing, Connector

4010193

$8.79

20

HOUSING

4020063

$3.19

21

Terminal, Ring

4020092

Unavailable

22

Housing

4020057

$3.51

23

Harness, Main Wire

2460997

$112.60

24

Jumper, Brake Switch

4010701

$10.71
