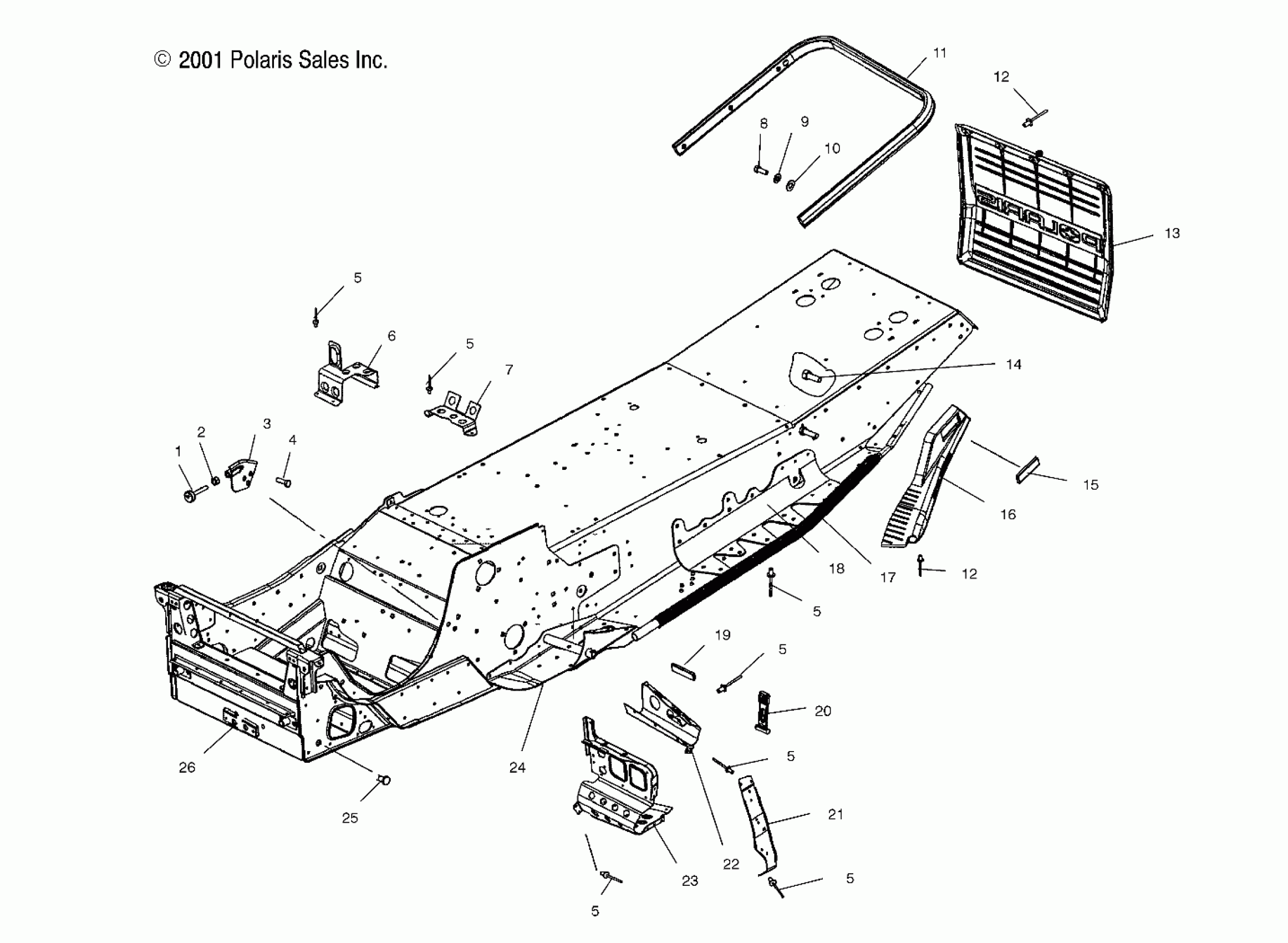

Polaris 440 PRO X FAN COOLED - S02NX4FS CHASSIS - S02NX4FS (4977037703A03) Diagram

#

Description
Price

-

Asm., Chassis

1013647-309

Unavailable

1

Stop, Torque

3021104

$20.22

2

NUT

7542404

$1.59

3

Stop, Torque

1013507

$34.71

4

SCREW

7517632

$5.59

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

5

RIVET-3/16-.090-.290

7661637

$1.49

6

Bracket, Oil Bottle, Lower

5245801

$25.59

7

Bracket, Mount, Airbox

5245398

$22.23

8

BOLT

7512240

$3.99

9

WASHER, SPRING LOCK

7552801

$1.59

10

Washer, Flat

7558301

$1.49

11

Bumper, Rear

2632165-309

Unavailable

12

RIVET

7621472

$1.49

12

RIVET

7621472

$1.49

13

Flap, Snow

5433521-1106

Unavailable

14

Screw

7517411

Unavailable

15

Reflector, Red

2670133

$5.75

16

Skirt, Snow, w/Reflector, LH

2632443-070

$64.75

16

Skirt, Snow, w/Reflector, RH

2632444-070

$55.99

17

Grip, Tunnel Roll, LH

5132903

$45.24

17

Grip, Tunnel Roll, RH

5132904

$45.24

18

Brace, Tunnel, LH

5245820

$58.39

18

Brace, Tunnel, RH

5245821

$58.39

19

Pad, Clutch Guard

5812352

Unavailable

20

STRAP-AIRBOX TOP

5433150

$24.27

21

Support, Footrest, LH

5246310

$19.83

21

Support, Footrest, RH

5246311

$32.37

22

Mount, Console, Toe Clip, Upper, LH

5245457

Unavailable

22

Mount, Console, Toe Clip, Upper, RH

5245458

Unavailable

23

Footrest, LH

5245288

Unavailable

23

Footrest, RH

5242740

Unavailable

24

Mount, Trailing Arm, RH

1013650

Unavailable

24

Mount, Trailing Arm, LH

1013649

Unavailable

25

PLUG, HOLE

7080416

$5.65

26

Bracket, Radius Rod Strap, Lower

5245250

$11.59
