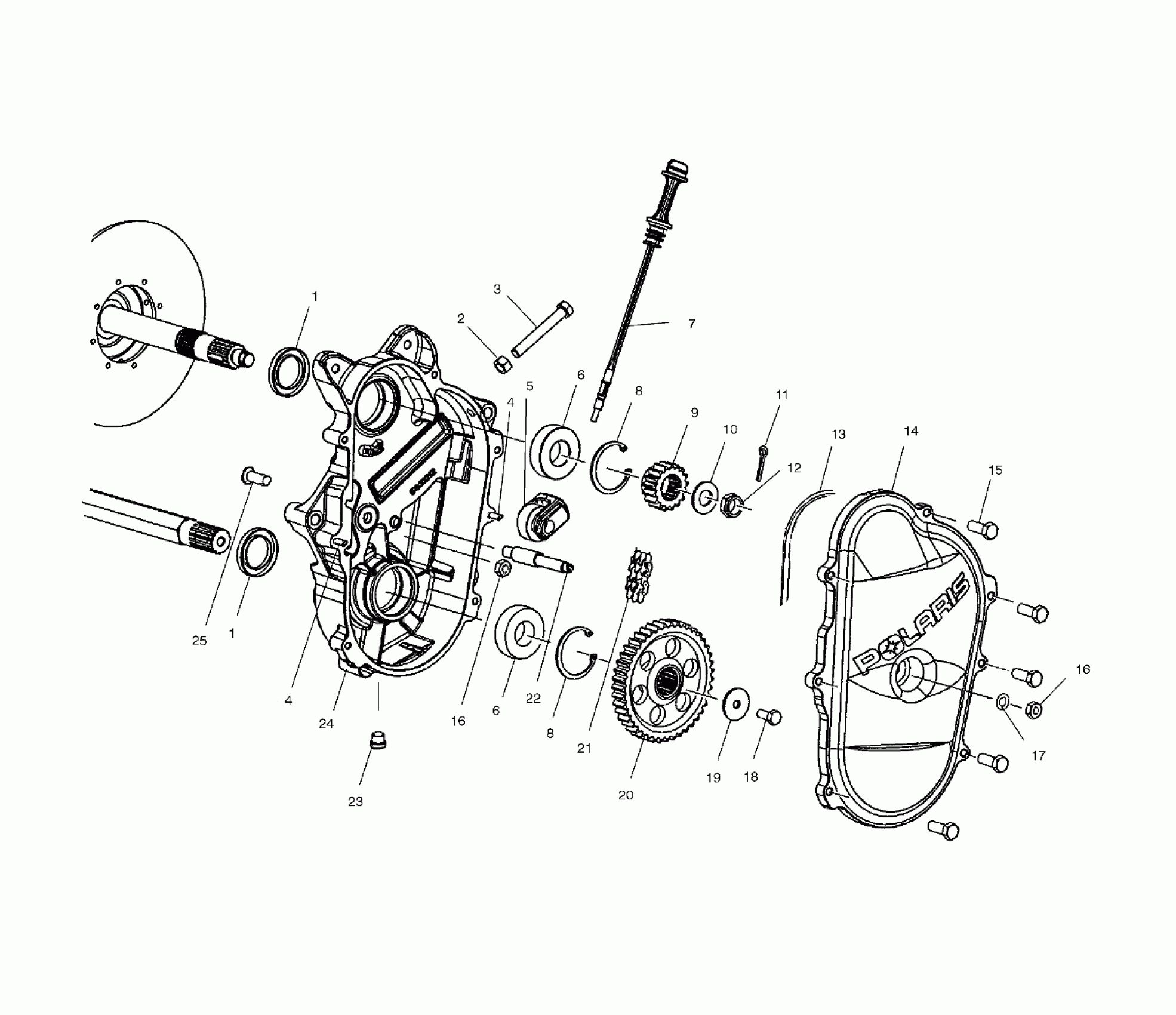

Polaris 440 PRO X FAN COOLED - S02NX4FS CHAINCASE - S02NX4FS (4977037703B05) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

Pin, Dowel

7661826

$5.65

4

Pin, Dowel

7661826

$5.65

5

Asm., Tightener, Chaincase

1332257

$114.99

6

BEARING, BALL

3514309

$15.87

6

BEARING, BALL

3514309

$15.87

7

Dipstick

5431419

Unavailable

7

O-RING

5410675

$1.60

8

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

9

SPROCKET, 21T, 3/4W

3221097

$49.99

10

Washer, Spring

7571620

$7.19

11

Pin, Cotter

7661203

$1.49

12

Nut

7547202

$5.59

13

Gasket, Chaincase

5411497

$20.22

14

Cover, Chaincase

5631213

Unavailable

15

SCREW

7512242

$2.39

16

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

16

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

17

Washer, Rubber, Dish

7555950

Unavailable

18

Screw

7517979

$3.99

19

Washer, Spring

7571618

$6.39

20

SPROCKET, 41T

3222101

$40.46

21

CHAIN, 74P, 3/4W

3221109

$164.99

22

Stud

7518009

$23.19

23

PLUG

7052115

$5.65

24

Chaincase

5133179

$113.32

25

Screw

7515477

$34.99
