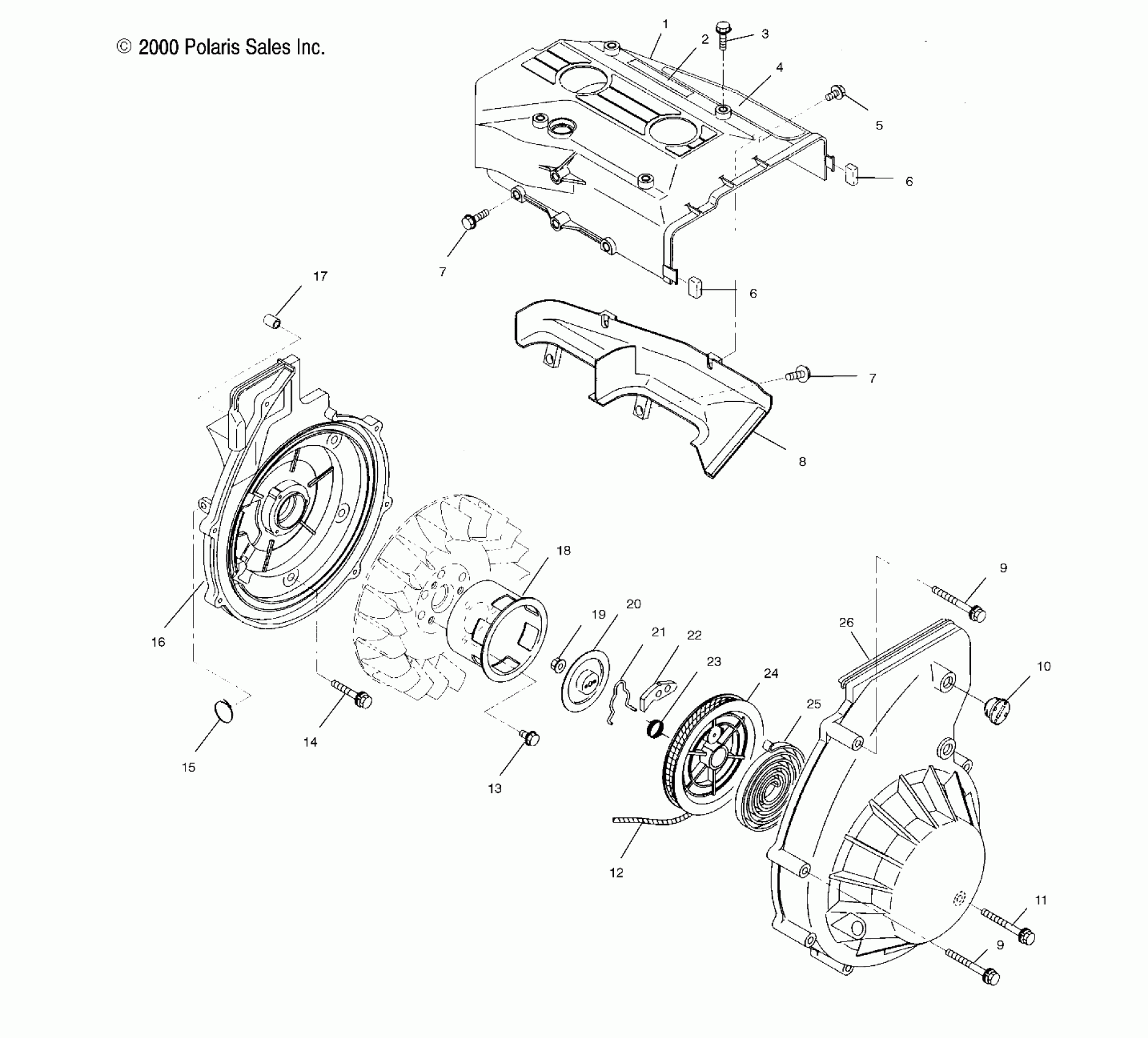

Polaris 440 PRO X FAN COOLED - S02NX4FS BLOWER HOUSING and RECOIL STARTER - S02NX4FS (4977037703C08) Diagram

#

Description
Price

1

Baffle, Cylinder 1

3086991

$119.99

2

Decal, Polaris Engine Shroud

7077756

Unavailable

3

Bolt, Flange

3084566

$3.19

4

Decal, 440 Engine Shroud

7077755

Unavailable

5

Bolt, Flange

3085693

$2.39

6

Cap, Baffle, Cylinder

3085690

$9.70

6

Cap, Baffle, Cylinder

3085690

$9.70

7

Bolt, Flange

3085694

$2.63

7

Bolt, Flange

3085694

$2.63

8

Baffle, Cylinder 2

3085691

Unavailable

9

Bolt and Washer

3083550

Unavailable

9

Bolt and Washer

3083550

Unavailable

10

Plug, Rubber

3086792

$24.27

11

Bolt and Washer

3082030

$3.97

12

Rope, Recoil

3085723

Unavailable

13

Bolt and Washer

3085688

$2.99

14

Bolt and Washer

3084225

$3.99

15

Band, Wire

3084823

$12.79

16

Housing, Blower

3087020

$178.08

17

Pin, Straight

3084857

Unavailable

18

Pulley, Starting

3087181

$36.41

19

Nut, Flange

3083381

$2.99

20

Plate, Friction

3083464

$28.32

21

Spring, Friction

3083379

$24.27

22

Ratchet

3083378

$20.22

23

Spring, Return

3083463

$4.03

24

Reel

3083377

$56.65

25

Spring, Spiral

3083376

$179.11

26

Case, Starter

3087180

$242.84

26

Starter, Recoil [Incl.12,19-26]

3087179

Unavailable
