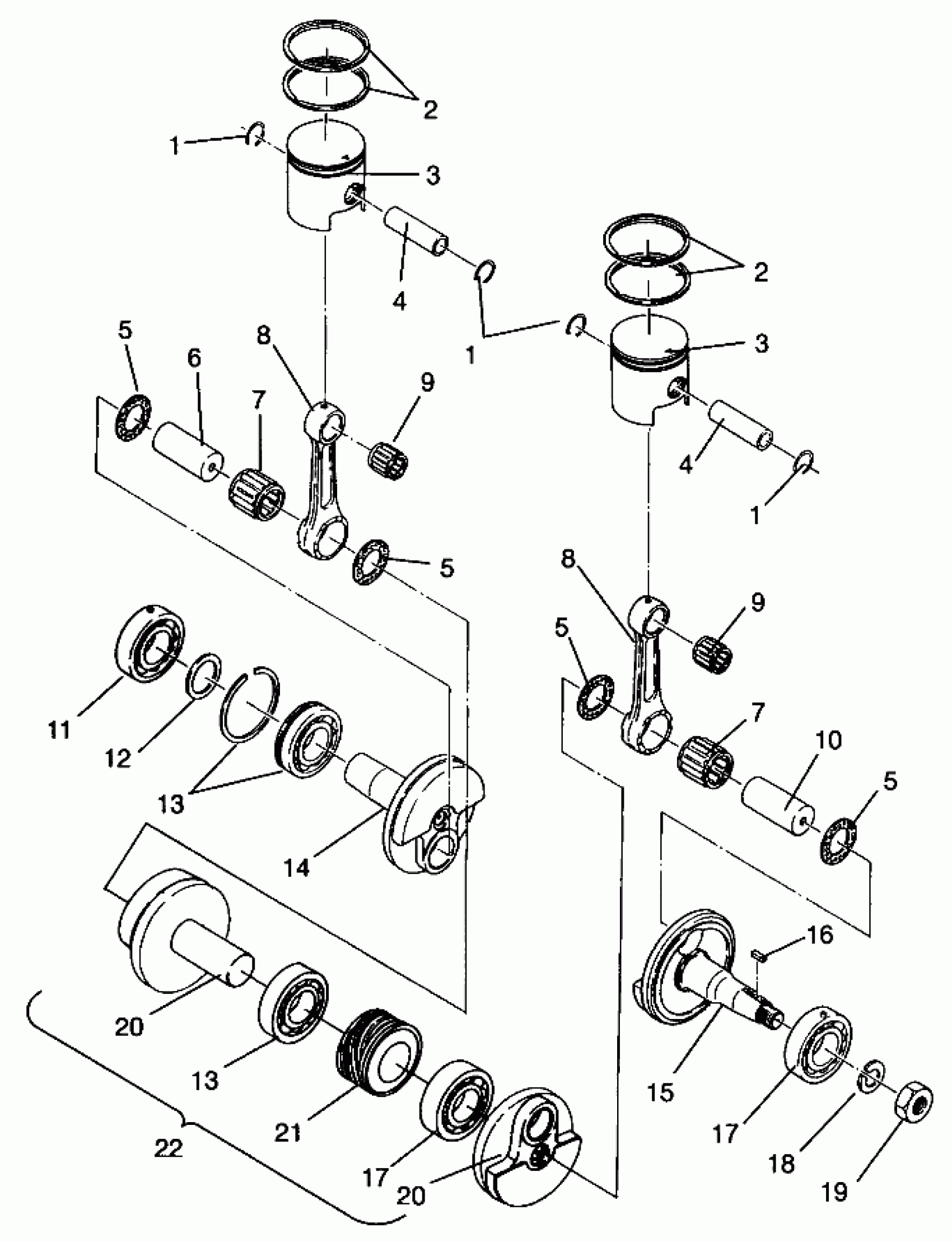

Polaris 440 L/C - 0962760 PISTON and CRANKSHAFT 440 0962760 (4931743174C008) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

2

RING,.020 O/S (0.50mm/.020" O/S)

3083874

Unavailable

2

RING,.010 O/S (0.25mm/.010" O/S)

3083873

$47.39

2

RING, PISTON (Standard)

3083859

Unavailable

2

RING,.020 O/S (0.50mm/.020" O/S)

3083874

Unavailable

2

RING,.010 O/S (0.25mm/.010" O/S)

3083873

$47.39

2

RING, PISTON (Standard)

3083859

Unavailable

3

PISTON, (.010 O/S) (0.25m/.010" O/S)

3084327

Unavailable

3

PISTON, (.020 O/S) (0.50m/.020" O/S)

3084328

Unavailable

3

PISTON (Standard)

3084326

$83.89

3

PISTON, (.010 O/S) (0.25m/.010" O/S)

3084327

Unavailable

3

PISTON, (.020 O/S) (0.50m/.020" O/S)

3084328

Unavailable

3

PISTON (Standard)

3084326

$83.89

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

Pin, Crank, 2

3083456

Unavailable

7

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

7

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

8

ROD-CONNECTING

3083252

$164.99

8

ROD-CONNECTING

3083252

$164.99

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

10

PIN,CRANK

3083233

$36.41

11

BALL BEARING

3085205

Unavailable

12

Spacer

3085203

$6.39

13

BALL BEARING

3085204

Unavailable

13

BALL BEARING

3085204

Unavailable

14

CRANKSHAFT 3 (PTO Side)

3085202

Unavailable

15

CRANKSHAFT #1 (Mag Side)

3083362

Unavailable

16

KEY

3081447

Unavailable

17

BEARING, BALL

3084586

$44.99

17

BEARING, BALL

3084586

$44.99

18

WASHER-SPRING(10)

3083094

$3.17

19

NUT

3083093

$19.99

20

CRANKSHAFT 2 (Center) (Incl. 6, 10)

3083713

$583.49

20

CRANKSHAFT 2 (Center) (Incl. 6, 10)

3083713

$583.49

21

GEAR,DRIVE,OIL PUMP

3083782

$102.13

22

CRANKSHAFT ASM (Incl. 5-8, 10, 12-15, 17, 20)

3085206

$1,299.99
