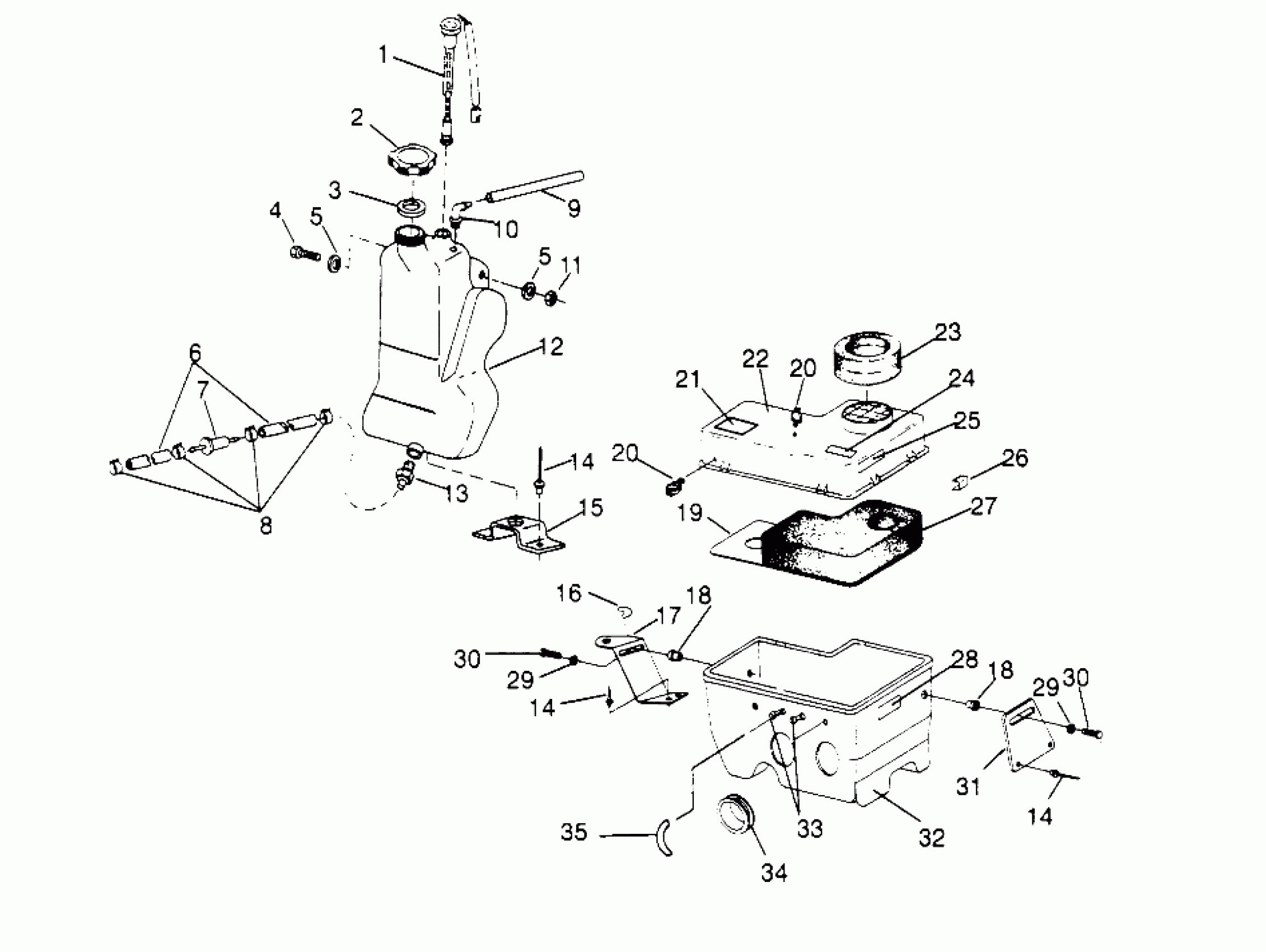

Polaris 440 L/C - 0962760 OIL TANK / AIR BOX ASSEMBLY 440 0962760 (4931743174C003) Diagram

#

Description
Price

1

SENSOR,OIL LEVEL,W/CONN.

4040040

$72.84

2

CAP,OIL TANK

5430779

$14.56

3

GASKET-OIL CAP

5810141

$2.39

4

BOLT(10)

7512240

$3.99

5

WASHER,WROUGHT(10)

7558302

$1.59

5

WASHER,WROUGHT(10)

7558302

$1.59

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

8

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

9

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

10

FITTING,90 DEG,1/8,(10)

7052095

$4.79

11

NUT-LOCK(10)

7542122

$1.49

12

Tank, Oil

5431437

Unavailable

13

FITTING, OUTLET

7052042

$8.99

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

15

BRKT,OILTANK,COINED

5241334

$9.70

16

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

17

BRKT,AIR SILENCER,BLK.

5223973-067

Unavailable

18

NUT-WELL(10)

7541923

$5.59

18

NUT-WELL(10)

7541923

$5.59

19

PLATE,AIR SILENCER

5850075

$24.27

20

CLAMP,WIRE ROUTING(10)

7080409

$2.39

20

CLAMP,WIRE ROUTING(10)

7080409

$2.39

21

DECAL,COOLING SYS. [No Longer Available]

7073721

Unavailable

22

SILENCER,AIR,UPPER

5431496

Unavailable

23

DUCT ASM,AIR

2620057

$40.46

24

DECAL,CAUTION(AIR BOX) [No Longer Available]

7072891

Unavailable

25

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

26

CLIP, AIR BOX,(10)

7670055

$7.99

27

BAFFLE ASM.

1253116

$59.99

28

DECAL, GREASING [No Longer Available]

7073426

$7.27

29

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

29

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

30

SCREW(10)

7512279

$1.49

30

SCREW(10)

7512279

$1.49

31

BRACKET, SILENCER

5211274

$9.70

32

SILENCER,DRILLED

5431666

Unavailable

33

FITTING,90 DEG,1/8,(10)

7052095

$4.79

34

BOOT

5410403

$12.99

35

FUEL LINE,1/8 ID,600 CM.

8360009-600

$40.46
