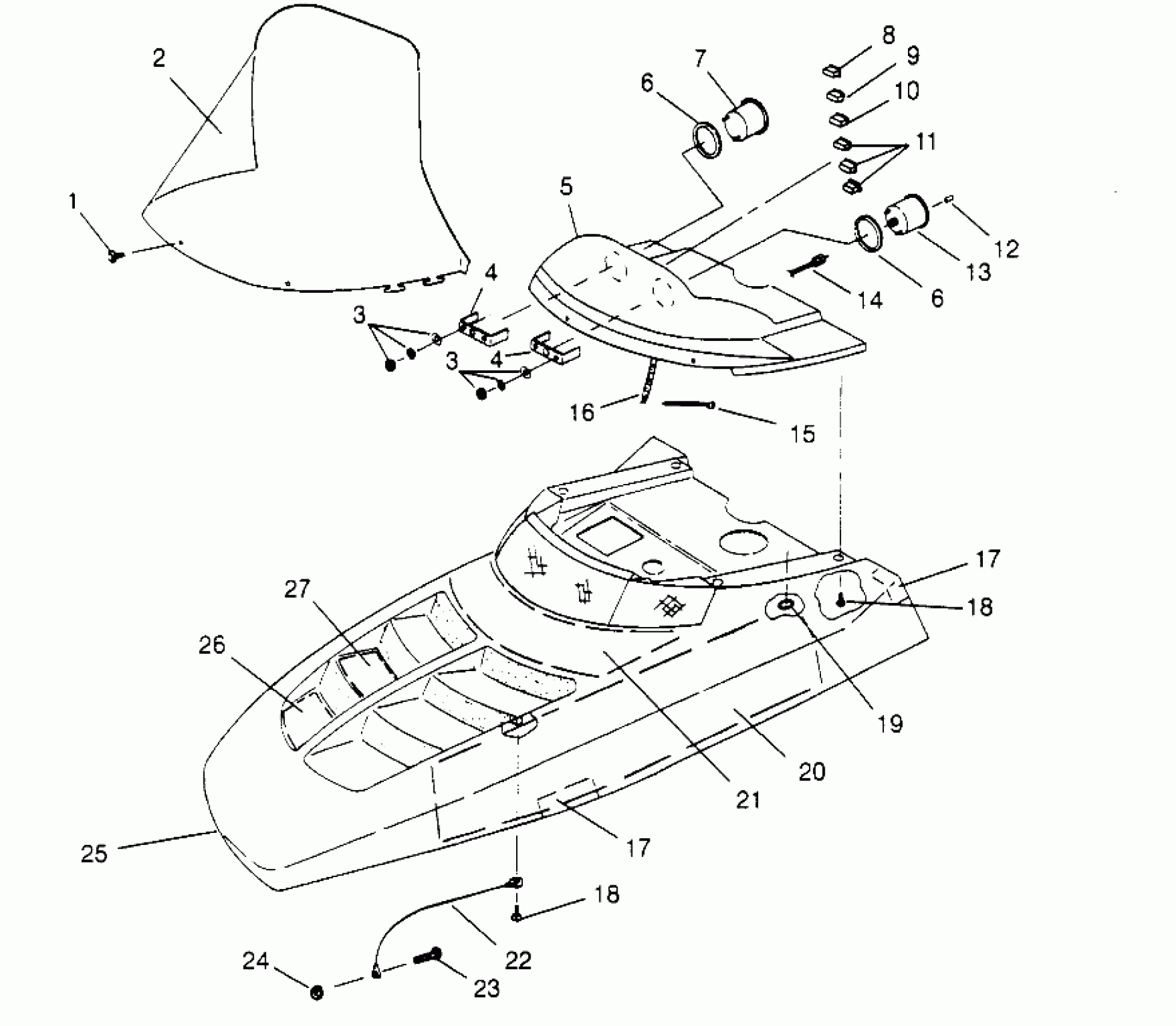

Polaris 440 L/C - 0962760 HOOD 440 0962760 (4931743174A010) Diagram

#

Description
Price

1

RIVET,PLASTI-LOC.(50)

7621509

$1.49

2

WNDSHLD,STD,SMOKE,EV.

5431930

Unavailable

3

Nut

3280158

Unavailable

3

BRKT,TACH/SPEEDO,5"

3280210

$28.32

3

SPEEDO.GAUGE ASM.

3280146

$59.99

3

Nut

3280158

Unavailable

3

BRKT,TACH/SPEEDO,5"

3280210

$28.32

3

SPEEDO.GAUGE ASM.

3280146

$59.99

4

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

4

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

5

HOUSING ASM,INSTR. (Incl. Warning Decals)

2652146

Unavailable

6

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

6

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

7

BULB TAILLIGHT(10)

4030015

$4.03

7

TACHOMETER,BACKLIT Substituted by 3280246 (Incl. 3, 4, 6)

3280205

Unavailable

8

INDICATOR'TEMP'WARN.

4040011

$32.37

9

INDICATOR'OIL/BRK'WARN.

4040034

$12.17

10

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

11

PLUG,INDIC.HOLE

5430967

$5.65

12

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

13

SPEEDO,KILOMETER (Euro)

3280159

$113.99

13

SPEEDO,BACKLIT (Incl. 3, 4, 6, 12)

3280204

Unavailable

14

CABLE,SPEEDO.

3280094

$60.70

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

HARNESS, H/L

2460529

Unavailable

17

FOIL,TAPE,1.5X6

5810949

$3.19

17

FOIL,TAPE,1.5X6

5810949

$3.19

18

SCREW(10)

7512070

Unavailable

18

SCREW(10)

7512070

Unavailable

19

RETAINER,WINDSHIELD,(10)

5410970

$1.49

20

FOAM,LH,HOOD

5810876

Unavailable

20

FOAM,RH,HOOD

5810877

Unavailable

20

FOIL,RH,HOOD

5810905

Unavailable

21

FOAM,HOOD,CTR.

5810875

Unavailable

22

CABLE,HOOD RETAINER

7080521

$24.27

23

SCREW(10)

7511930

$2.39

24

NUT FLEX LOC(10)

7541906

$3.19

25

HOOD ASM,(LIQ.),PLUM (Incl. 17, 20-21, 26, 27)

2631591-203

Unavailable

26

FOIL,HOOD,FRONT

5810874

Unavailable

27

FOIL,HOOD,CTR.

5810873

Unavailable
