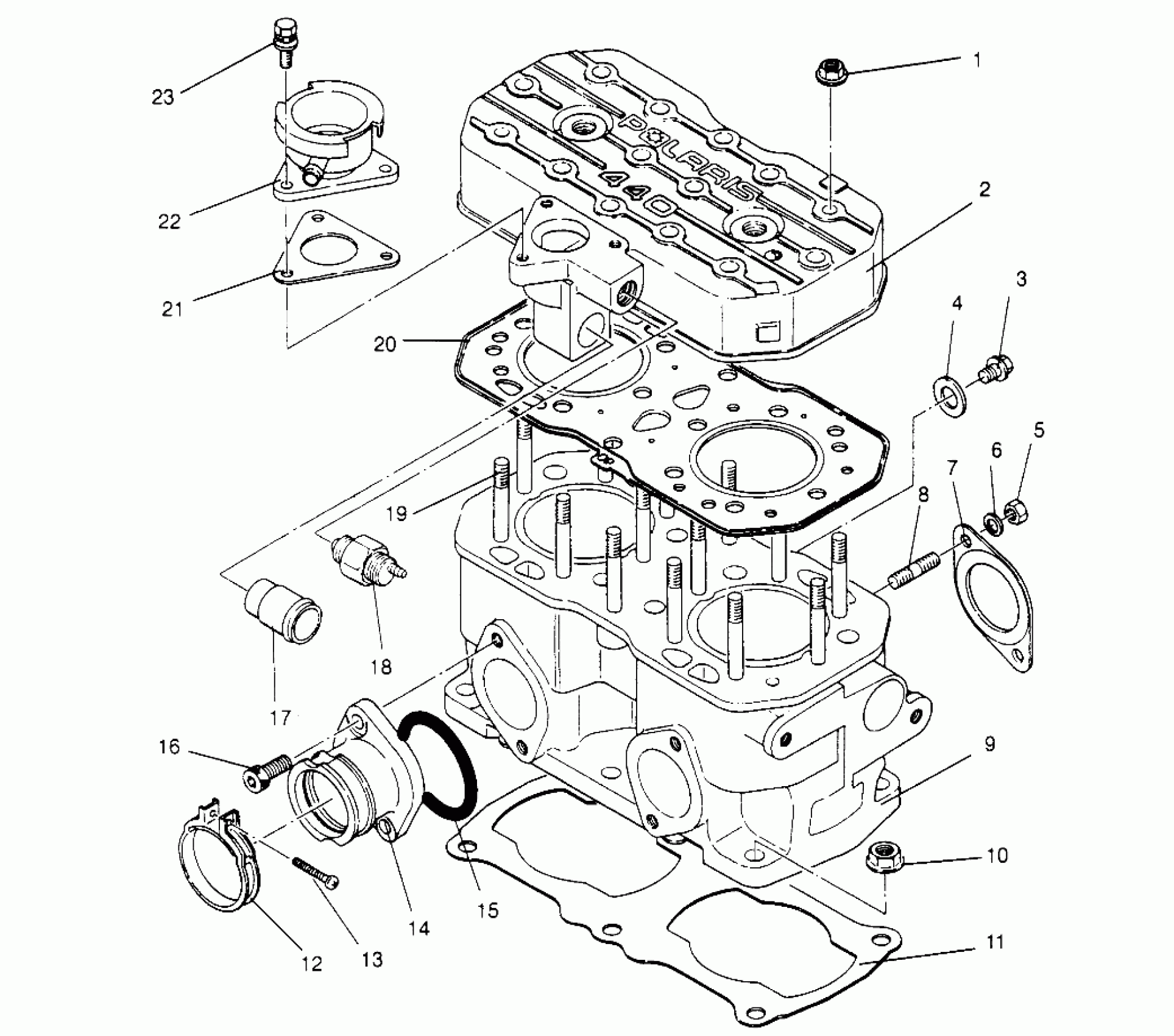

Polaris 440 L/C - 0962760 CYLINDER 440 0962760 (4931743174C006) Diagram

#

Description
Price

1

NUT-FLANGE(10)

3082910

$2.39

2

HEAD,CYLINDER (Incl. 17)

3084610

$399.99

3

Plug

3084491

Unavailable

4

Gasket, Aluminum

3084492

$4.03

5

NUT(10)

3080285

Unavailable

6

WASHER LOCK ,(10)

3080530

$3.19

7

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

8

STUD Substituted by 3085326

3084270

Unavailable

9

CYLINDER (Incl. 8, 19)

3084322

$704.99

10

NUT-FLANGE(10)

3082911

$1.99

11

GASKET, BASE (Cylinder) Non-Asbestos

3084768

$64.99

12

BAND ASM. (Incl. 13)

3083166

$19.84

13

SCREW,(10)

3081497

$2.39

14

ADAPTER,CARB. (Incl. 15)

3085044

Unavailable

15

O-RING Substituted by 3085619

3084272

Unavailable

16

Bolt, Allen

3081330

$3.99

17

Pipe, Water

3083452

Unavailable

18

SWITCH,THERMAL(93 DEG.C.) (93

3083055

Unavailable

19

STUD

3083360

Unavailable

20

GASKET,HEAD

3084611

Unavailable

21

GASKET, FILLER NECK

3083340

Unavailable

22

NECK, FILLER

3083398

Unavailable

23

BOLT&WASHER ASM.

3083361

Unavailable
