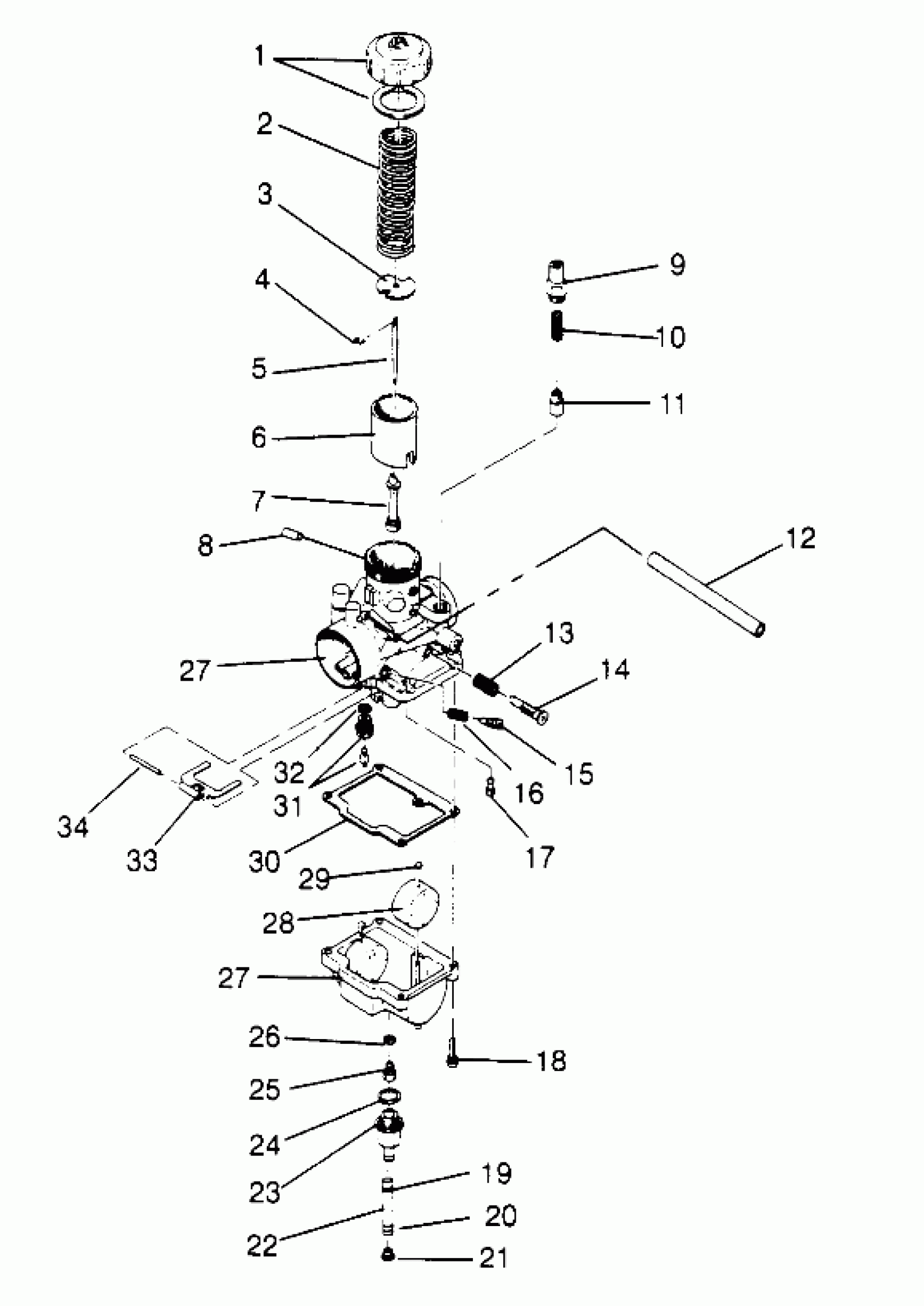

Polaris 440 L/C - 0962760 CARBURETOR 440 0962760 (4931743174C009) Diagram

#

Description
Price

1

TOP ASM (Incl. Gasket)

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

PLATE

3130027

$9.70

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

JET NEEDLE Substituted by 3130329 (6DH7-2)

3130158

Unavailable

6

VALVE,THROTTLE,2.0 (2.0)

3130464

Unavailable

7

JET,NEEDLE,P-2 (P-2) (480)

3130460

Unavailable

8

CAP

3130479

$14.56

9

HOLDER,GUIDE

3130199

$28.32

10

SPRING,PLUNGER

3130006

$8.89

11

PLUNGER ASM, STARTER

3130328

$32.37

12

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

13

SPRING,THROTTLE ADJ.

3130010

$8.89

14

SCREW,THROTTLE STOP

3130009

$19.99

15

SCREW,AIR

3130011

$19.99

16

SPRING,AIR ADJUST

3130012

$8.89

17

JET,PILOT,#40(10) (#40)

3130067

$10.99

18

SCREW & WASHER(10)

3130025

$3.19

19

CLAMP,SPRING,(10)

7080534

$1.59

20

CLAMP,HOSE(10)

7080544

Unavailable

21

PLUG,TRAP

5431893

$12.94

22

FUEL LINE, 5 FT.

8450045-153

Unavailable

23

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

24

O RING

3130239

Unavailable

25

JET,MAIN,HX.HD#260(10) (#260)

3130129

$7.27

26

WASHER (10)

3130014

$1.59

27

CARBURETOR ASM. (Incl. 1-11, 13-18, 24-34)

3130630

Unavailable

27

CARBURETOR ASM. (Incl. 1-11, 13-18, 24-34)

3130630

Unavailable

28

FLOAT ASM.

3130430

$43.56

29

CAP,(10)

3130237

$4.03

30

PACKING,FLOAT CHAMBER

3130020

$16.17

31

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

32

PACKING(10)

3130017

$4.03

33

ARM,FLOAT

3130018

$24.27

34

PIN, FLOAT

3130361

$8.89
