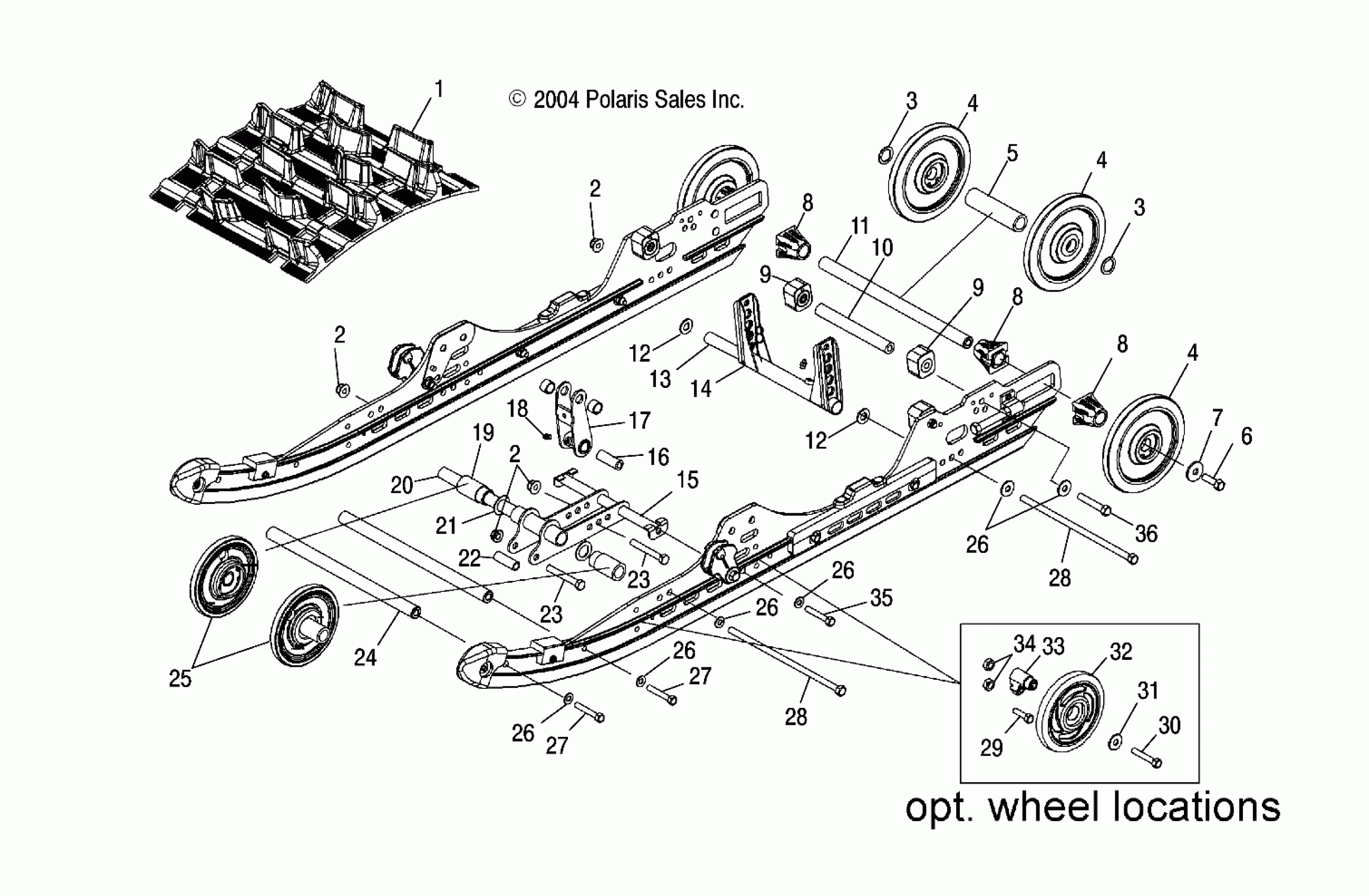

Polaris 440 IQ - S05MX4CS SUSPENSION, REAR - S05MX4CS/CE (4992589258B10) Diagram

#

Description
Price

1

CLIP, GUIDE

5222840

Unavailable

1

Track

5412763

Unavailable

2

NUT-3/8-24 FLG LOC

7547263

$3.19

2

NUT-3/8-24 FLG LOC

7547263

$3.19

2

NUT-3/8-24 FLG LOC

7547263

$3.19

3

BUSHING

7555918

$1.59

3

BUSHING

7555918

$1.59

4

RING-RETAINING

7710444

$8.79

4

ASM., WHEEL

1594087

$72.84

4

Bearing

3514012

Unavailable

4

RING-RETAINING

7710444

$8.79

4

ASM., WHEEL

1594087

$72.84

4

Bearing

3514012

Unavailable

4

RING-RETAINING

7710444

$8.79

4

ASM., WHEEL

1594087

$72.84

4

Bearing

3514012

Unavailable

5

SPACER-IDLER, CENTER

5333283

$19.99

6

BOLT

7517731

$1.49

7

WASHER

7556130

$6.39

8

SPACER-IDLER

5432535

$11.99

8

SPACER-IDLER

5432535

$11.99

8

SPACER-IDLER

5432535

$11.99

9

BUMPER, PIVOT ARM

5410925

$12.94

9

MOUNT, BUMPER

5131113

$28.32

9

BUMPER, PIVOT ARM

5410925

$12.94

9

MOUNT, BUMPER

5131113

$28.32

10

Shaft, Coupler Block

5134796

$17.59

11

Shaft, Idler

5132066

$43.99

12

Washer, Flat

7555893

$1.49

12

Washer, Flat

7555893

$1.49

13

SHAFT

5334026

$28.32

14

Arm, Pivot, Rear, Black

1541713-067

$254.99

15

Mount, Shock, Black

1541711-067

$109.99

16

Bushing

5133233

$11.99

17

Arm, Shock Pivot, Black

1542055-067

$84.98

18

FITTING-LUBRICATION 1/4-28

7080424

$4.79

19

Spacer, Bogie Wheel

5132071

$16.67

20

Shaft

5133232

$28.32

21

Bushing

7556301

$3.19

22

SLEEVE

5333906

$15.99

23

SCREW

7515417

$4.79

23

SCREW

7515417

$4.79

24

SHAFT

5134078

$38.71

25

Asm., Wheel w/Hole

1541642

$48.56

26

WASHER, FLAT

7556188

$3.19

26

WASHER, FLAT

7556188

$3.19

26

WASHER, FLAT

7556188

$3.19

26

WASHER, FLAT

7556188

$3.19

26

WASHER, FLAT

7556188

$3.19

27

SCREW

7518005

$3.19

27

SCREW

7518005

$3.19

28

SCREW

7517921

$23.99

28

SCREW

7517921

$23.99

29

BOLT

7515317

$4.79

30

Screw

7515346

$5.59

31

Washer, Spring

7556179

$7.99

32

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

32

BEARING [1 PER WHEEL]

3514303

$11.99

32

Asm., Wheel Bogie

1590317

$48.56

33

Block, Wheel Mount

5631065

$28.32

34

NUT-5/16-18 NYLOK-Y

7542324

$1.49

35

Screw

7517247

$3.19

36

Screw

7515551

$6.39
