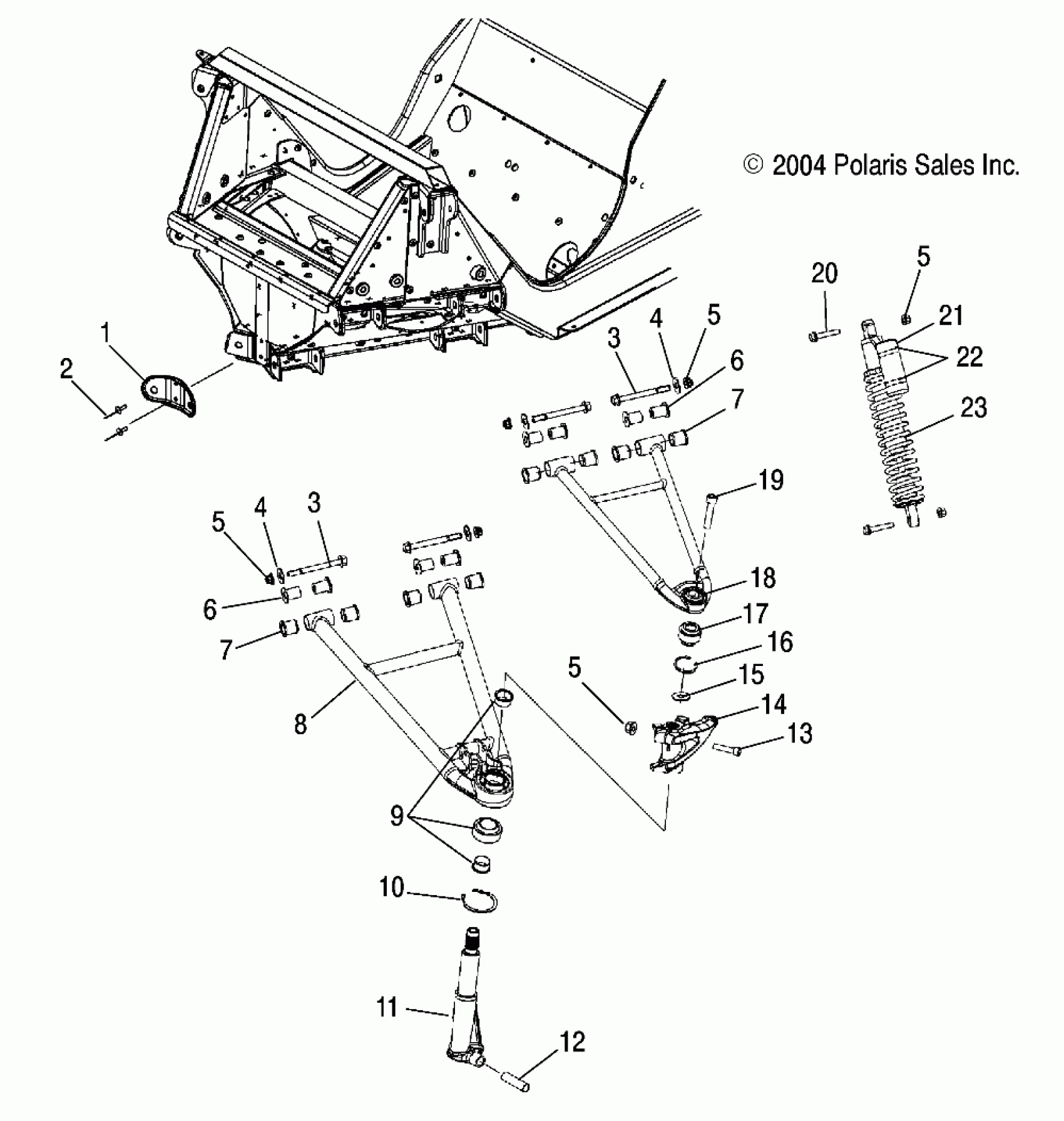

Polaris 440 IQ - S05MX4CS SUSPENSION, FRONT - S05MX4CS/CE (4992589258A14) Diagram

#

Description
Price

1

Brace, Front, Lower, A-Arm

5247372

$54.99

2

RIVET-3/16-.090-.290

7661637

$1.49

3

Screw

7517645

$4.23

3

Screw

7517645

$4.23

4

WASHER, FLAT

7556188

$3.19

4

WASHER, FLAT

7556188

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

6

Shaft, Pivot, Control Arm

5134686

$13.75

6

Shaft, Pivot, Control Arm

5134686

$13.75

7

Bushing, Control Arm

3514491

$29.99

7

Bushing, Control Arm

3514491

$29.99

8

Kit, Asm., Lower, Control Arm, Cloud Silver, LH [Incl. 5,7,10]

2202942

$339.99

8

Kit, Asm., Lower, Control Arm, Cloud Silver, RH [Incl. 5,7,10]

2202943

Unavailable

9

Asm., Bearing, LCA

1822733

Unavailable

10

Ring, Snap

7710559

$3.03

11

Fitting

7080306

$3.19

11

Spindle, Lower

5134843

$181.59

12

BUSHING, PIVOT

5010158

$19.99

13

Screw

7518433

$2.63

14

Spindle, Upper, RH

5134688

$216.99

14

Spindle, Upper, LH

5134687

$216.99

15

Washer

7556344

$2.23

16

Ring, Retaining

7710562

$2.63

17

Bearing, UBJ

7061132

$84.99

18

Kit, Asm., Upper, Control Arm, Cloud Silver, LH [Incl. 5,7,16]

2202940

$163.49

18

Kit, Asm., Upper, Control Arm, Cloud Silver, RH [Incl. 5,7,16]

2202941

$195.99

19

Screw

7518409

Unavailable

20

Screw

7515415

$1.49

21

SHOCK, IFS [See Shock, IFS Walker Evans Pg. C4 for Details]

-------

Unavailable

22

CLAMP-HOSE, 1.750-SS

7080560

$11.19

23

Spring, Compression, 200# [Opt]

7043162-067

$254.99

23

Spring, Compression, 150# [Opt]

7043160-067

Unavailable

23

Spring, Compression, 130# [Opt]

7043159-067

$91.99

23

Spring, Compression, 190# [Opt]

7043161-067

$74.39

23

Spring, Compression, 170# [Std]

7043139-133

$70.39
