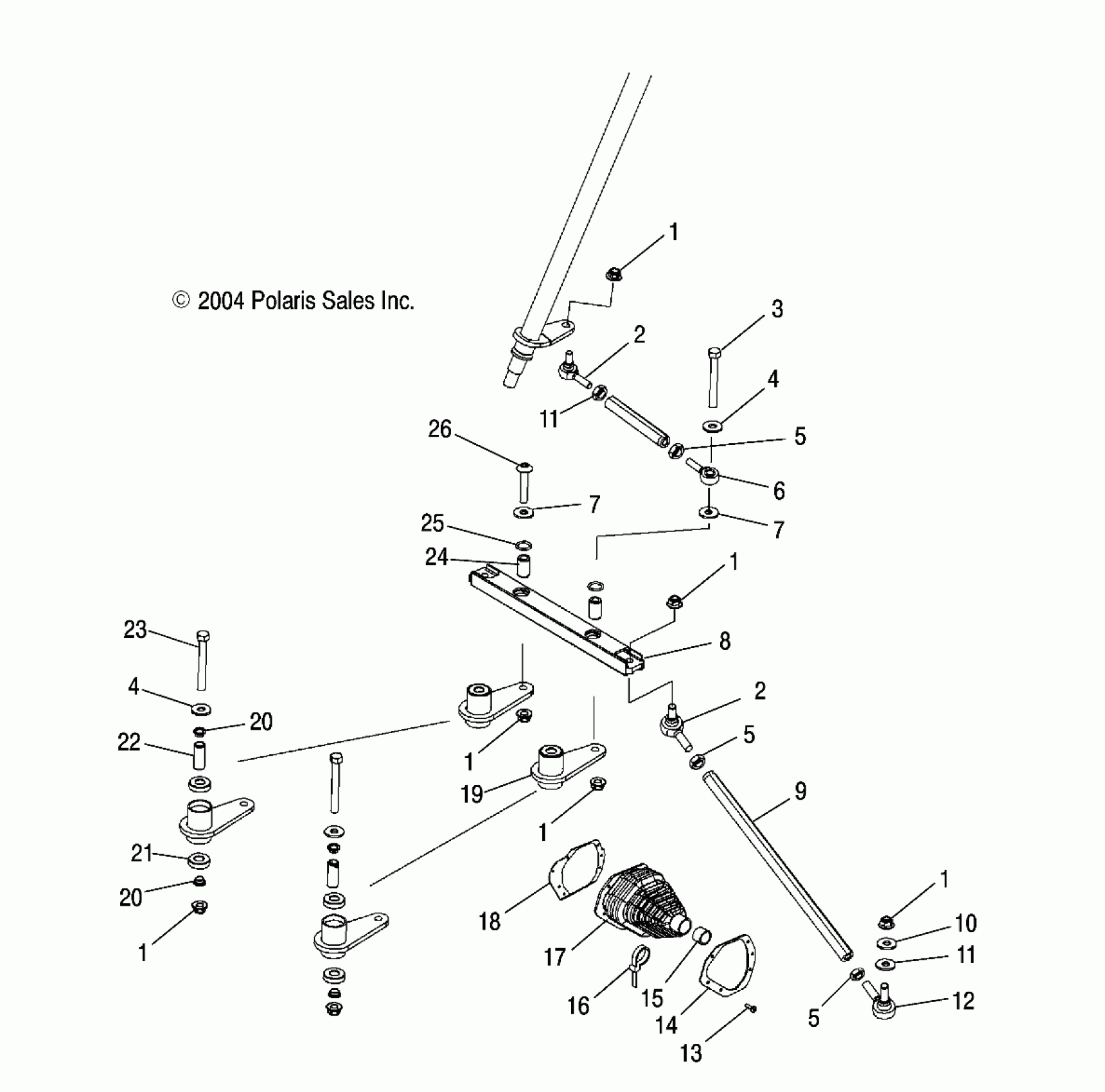

Polaris 440 IQ - S05MX4CS STEERING - S05MX4CS/CE (4992589258B05) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

2

Rod End, RH

7061136

$48.56

2

Rod End, RH

7061136

$48.56

3

SCREW

7515417

$4.79

4

Washer

7556160

$3.99

4

Washer

7556160

$3.99

5

Nut, Hex, RH

7542401

$2.39

5

Nut, Hex, RH

7542401

$2.39

5

Nut, Hex, RH

7542401

$2.39

6

Rod End, LH

7061083

$48.56

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

8

Asm., Rack, Steering [Incl. Bushings]

1822668

$87.19

9

Tie Rod

5134693

$25.40

10

Washer, Flat

7555797

$3.99

11

NUT, LH

7542424

$1.49

11

NUT, LH

7542424

$1.49

12

ROD END, LH

7061063

$48.56

13

Screw

7512084

$1.49

14

PLATE, TIE ROD BOOT, RH

5249227

$54.99

14

PLATE, TIE ROD BOOT, LH

5249226

$54.99

15

BUSHING, TIE ROD BOOT

5436174

$14.99

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

BOOT, TIE ROD, RH

5412745

$49.99

17

BOOT, TIE ROD, LH

5412744

$59.99

18

Cover, Tie Rod Boot, LH

5249183

$9.70

18

Cover, Tie Rod Boot, RH

5249189

$5.75

19

Asm., Idler

1822666

$131.99

20

BUSHING, REDUCER

5132106

$7.99

20

BUSHING, REDUCER

5132106

$7.99

21

Bearing, Ball

3514320

$15.99

22

Spacer, Tube, Pitman/Idler Arms

5133057

$5.83

23

Screw

7512435

$3.99

24

PIVOT, RACK, STEERING

5134692

$20.22

25

O-RING

5411220

$6.46

26

Screw

7518464

$23.99
