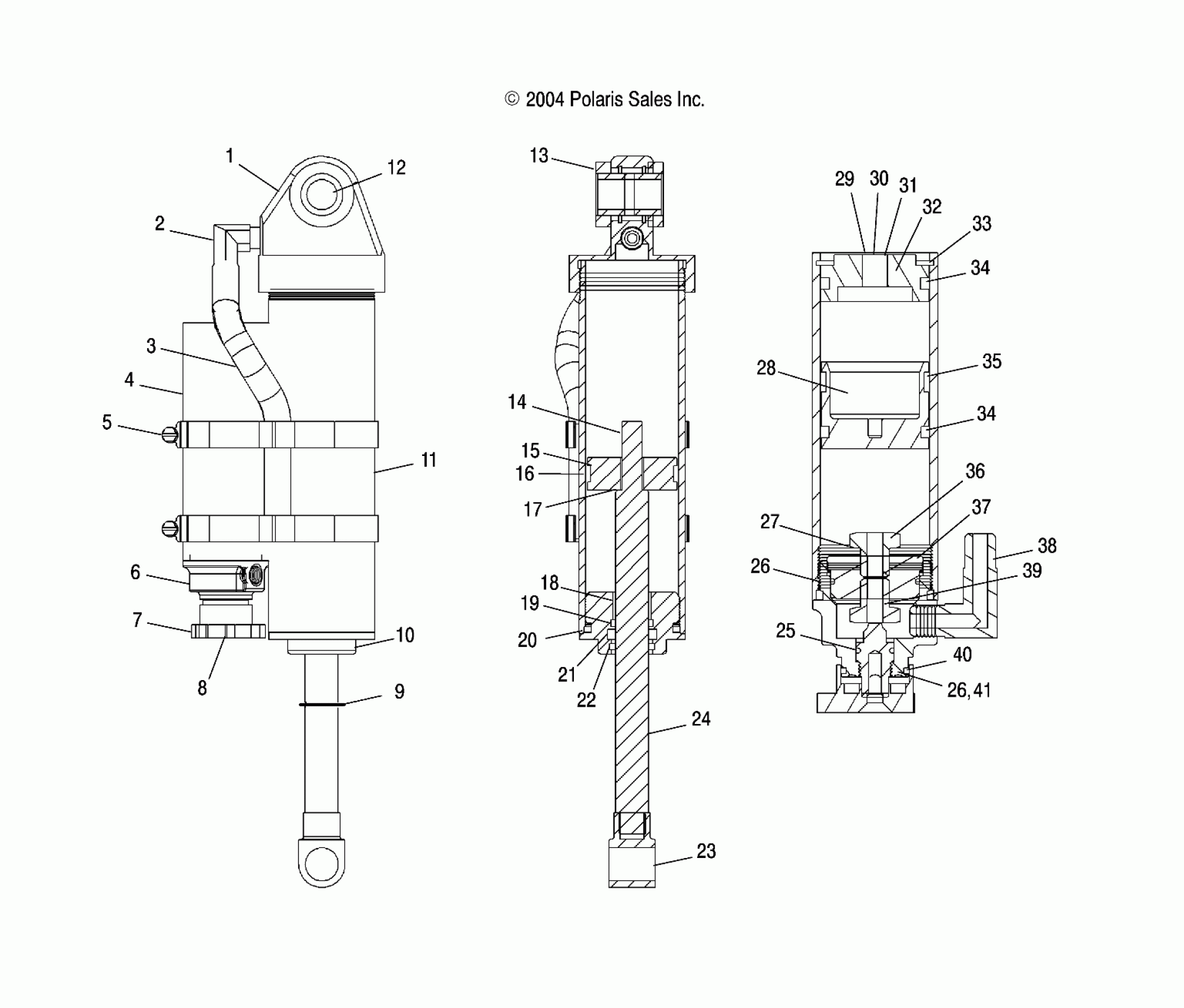

Polaris 440 IQ - S05MX4CS SHOCK REAR TRACK (WALKER EVANS) - S05MX4CS/CE (4992589258C07) Diagram

#

Description
Price

-

Shock, Rear Track

7043105

$474.99

1

Loop, Body

1800237

$115.08

2

FITTING

1800205

$55.99

3

Hose

1800212

Unavailable

4

Body, Reservoir

1800213

$74.39

5

Clamp, Hose

1800236

Unavailable

6

Housing, Adjust

1800220

$139.99

7

Knob

1800218

$51.99

8

Screw

1800203

$2.39

9

O-RING

1800095

$1.49

10

Asm., Shaft Seal Housing

1800240

$95.19

11

Body

1800238

$122.22

12

SLEEVE

1800032

$19.99

13

BUSHING

1800036

Unavailable

14

Nut

1800241

$4.56

15

Asm., Piston

1800239

$98.41

16

Band, Wear

1800243

$28.57

17

Washer

1800118

$3.59

18

BUSHING, SHAFT

1800038

$12.79

19

O-Ring Shaft Seal Head

1800037

$1.60

20

Body, O-Ring

1800027

$2.02

21

Shaft Seal U-Cup

1800035

Unavailable

22

WIPER, D-TYPE

1800034

$31.99

23

Eyelet

1800096

$101.17

24

Shaft

1800235

$87.30

25

O-Ring

1800094

$1.49

26

BALL

1800127

$6.39

26

BALL

1800127

$6.39

27

Shim, Valve

1800052

Unavailable

27

Valve

1800091

$4.95

28

O-RING, BLEED SCREW

1800210

$1.59

28

Screw, Bleed

1800211

$2.23

28

Reservoir Piston w/Bleed Screw

1800214

$35.99

29

SCREW, BUTTON HEAD

1800109

$3.19

30

Valve, Needle

1800107

$16.35

31

O-Ring

1800108

$1.49

32

Cap, End

1800106

Unavailable

33

RING, SNAP, RESERVOIR

1800019

$6.46

34

Reservoir, O-Ring

1800028

$1.60

34

Reservoir, O-Ring

1800028

$1.60

35

Band, Wear

1800029

Unavailable

36

Screw w/Thru Hole

1800219

$11.19

37

PISTON

1800217

$56.65

38

Elbow

1800113

$29.99

39

WASHER

1800050

$3.99

40

O-Ring, Knob

1800221

Unavailable

41

SPRING-COMP .025X.3, 40.5#

1800128

$10.39
