Description

Price

-

Shock, IFS, LH

7043102

$513.72

-

Shock, IFS, RH

7043103

$669.99

1

Shim, Valve

1800072

Unavailable

2

Shim, Valve

1800052

Unavailable

3

O-Ring, Stud

1800215

$7.68

4

Housing, Adjust

1800220

$139.99

5

BALL, D-TENT

1800127

$6.39

5

BALL, D-TENT

1800127

$6.39

6

Screw

1800203

$2.39

7

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

8

Knob

1800218

$51.99

9

Screw w/Thru Hole

1800219

$11.19

10

O-Ring, Knob

1800221

Unavailable

11

Body, O-Ring

1800027

$2.02

11

Body, O-Ring

1800027

$2.02

11

Body, O-Ring

1800027

$2.02

11

Body, O-Ring

1800027

$2.02

12

PISTON

1800217

$56.65

13

Reservoir, Body

1800120

$89.03

14

O-RING, BLEED SCREW

1800210

$1.59

14

Screw, Bleed

1800211

$2.23

14

Reservoir Piston w/Bleed Screw

1800214

$35.99

15

Band, Wear

1800029

Unavailable

16

Reservoir, O-Ring

1800028

$1.60

17

Cap, End

1800106

Unavailable

18

Valve, Needle

1800107

$16.35

19

O-Ring

1800108

$1.49

20

SCREW, BUTTON HEAD

1800109

$3.19

21

RING, SNAP, RESERVOIR

1800019

$6.46

22

RING, SNAP, END BEARING

1800041

$7.27

22

RING, SNAP, END BEARING

1800041

$7.27

23

BEARING

1800170

$87.99

23

BEARING

1800170

$87.99

24

Eyelet

1800234

$82.39

25

SPRING, RETAINING RING

1800116

$60.70

26

O-RING

1800095

$1.49

27

Asm., Shaft Seal Housing

1800208

$119.99

28

Sleeve, Wear

1800047

$36.41

29

BUSHING, SHAFT

1800038

$12.79

30

Body-IFS, Threaded

1800232

$153.79

31

WASHER

1800204

$3.99

32

Band, Wear

1800026

Unavailable

33

Nut

1800031

$3.99

34

RETAINER, SPRING

1800046

$36.41

35

Hose, 5 Inch

1800272

$61.90

36

Loop, Body

1800231

$66.39

37

Spacer IFS

5134999

$24.99

37

Spacer IFS

5134999

$24.99

38

WASHER

1800050

$3.99

39

Asm., Piston w/Band

1800130

$129.51

40

O-Ring Shaft Seal Head

1800037

$1.60

41

Shaft Seal U-Cup

1800035

Unavailable

42

WIPER, D-TYPE

1800034

$31.99

43

Shaft

1800233

Unavailable

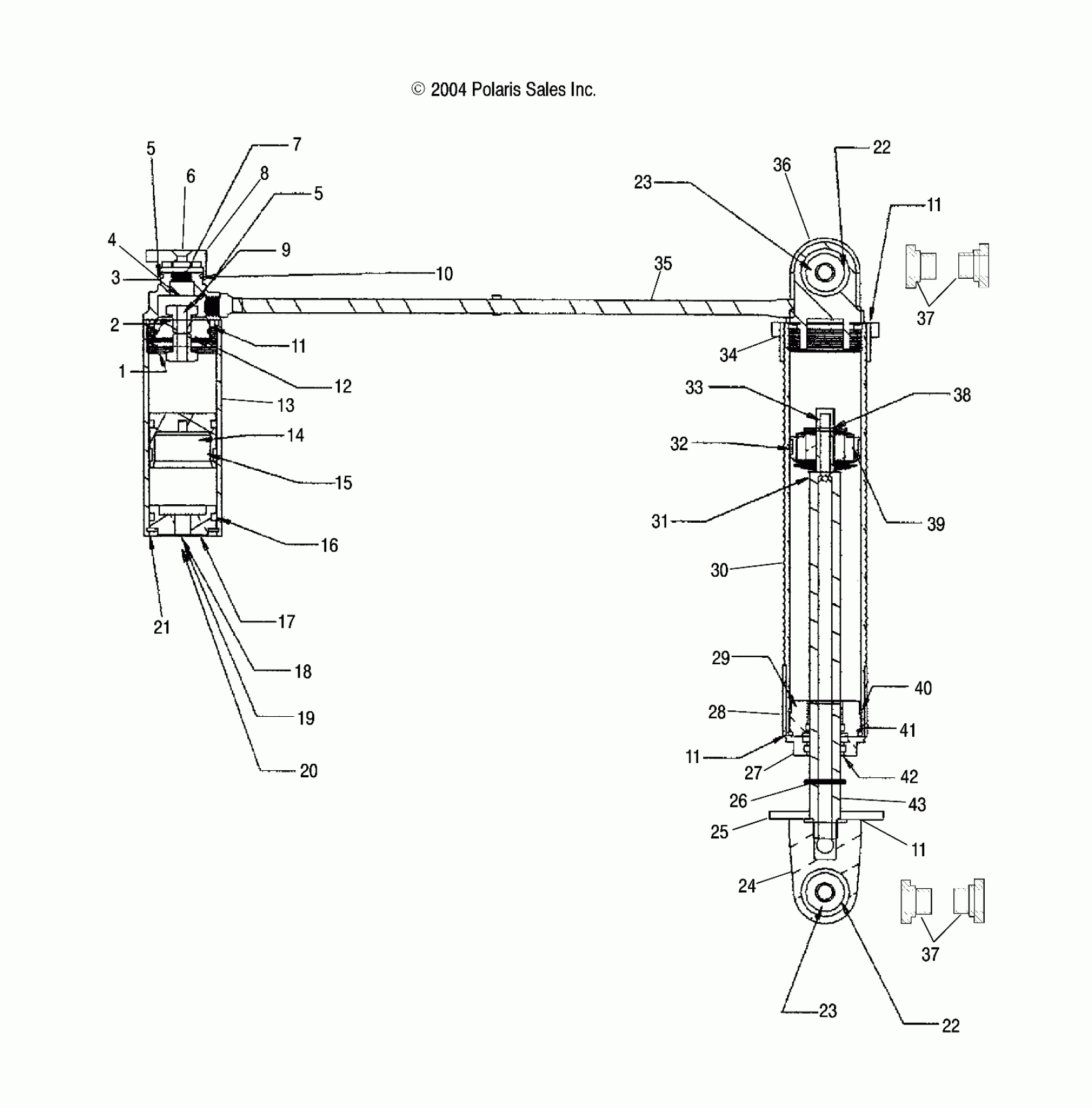

Polaris 440 IQ - S05MX4CS SHOCK IFS (WALKER EVANS) - S05MX4CS/CE (4992589258C03) Diagram

Shock, IFS, LH

Shock, IFS, RH

Shim, Valve

Shim, Valve

O-Ring, Stud

Housing, Adjust

BALL, D-TENT

BALL, D-TENT

Screw

SPRING-COMP .025X.3, 40.5#

Knob

Screw w/Thru Hole

O-Ring, Knob

Body, O-Ring

Body, O-Ring

Body, O-Ring

Body, O-Ring

PISTON

Reservoir, Body

O-RING, BLEED SCREW

Screw, Bleed

Reservoir Piston w/Bleed Screw

Band, Wear

Reservoir, O-Ring

Cap, End

Valve, Needle

O-Ring

SCREW, BUTTON HEAD

RING, SNAP, RESERVOIR

RING, SNAP, END BEARING

RING, SNAP, END BEARING

BEARING

BEARING

Eyelet

SPRING, RETAINING RING

O-RING

Asm., Shaft Seal Housing

Sleeve, Wear

BUSHING, SHAFT

Body-IFS, Threaded

WASHER

Band, Wear

Nut

RETAINER, SPRING

Hose, 5 Inch

Loop, Body

Spacer IFS

Spacer IFS

WASHER

Asm., Piston w/Band

O-Ring Shaft Seal Head

Shaft Seal U-Cup

WIPER, D-TYPE

Shaft
