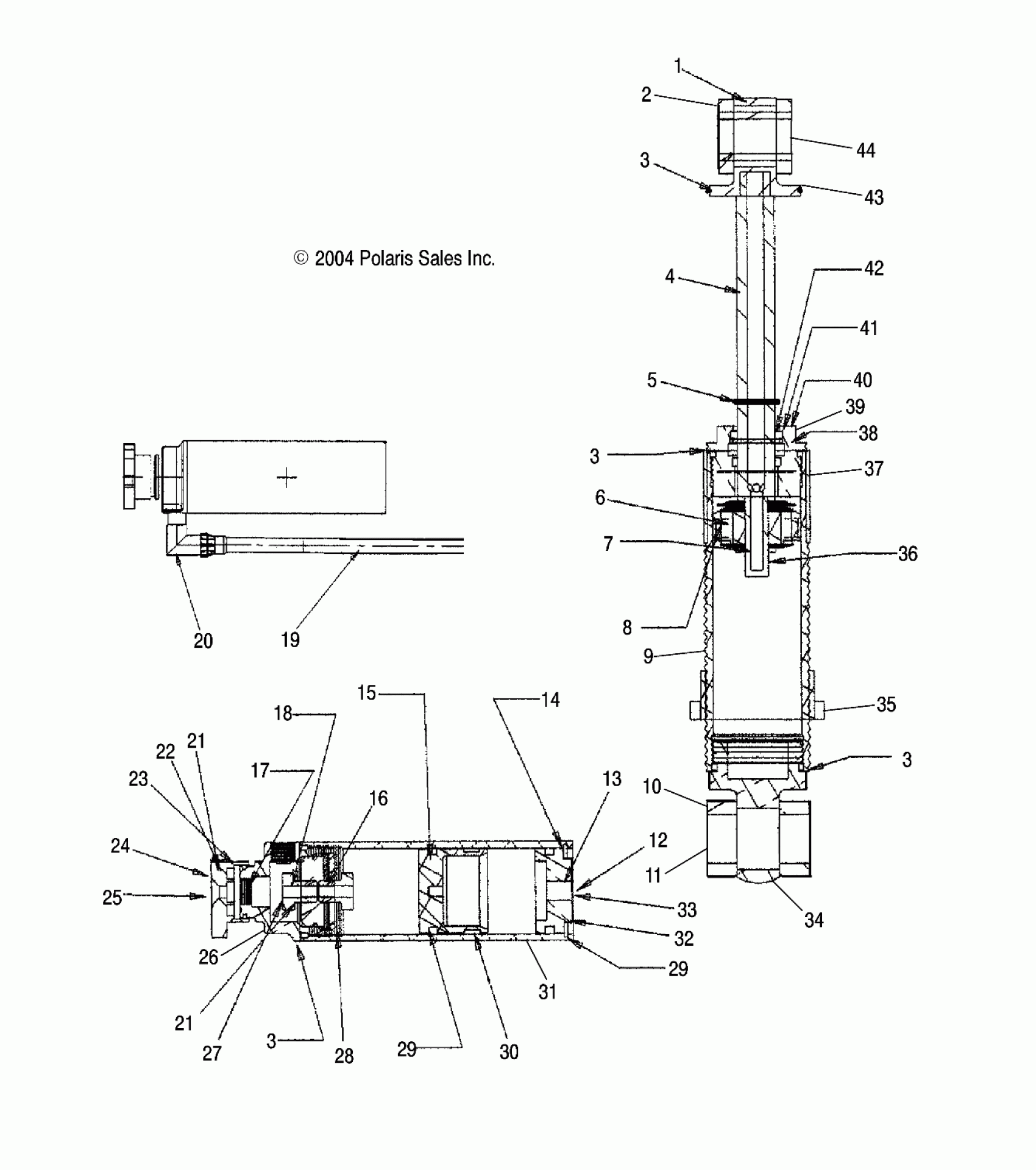

Polaris 440 IQ - S05MX4CS SHOCK FRONT TRACK (WALKER EVANS) - S05MX4CS/CE (4992589258C05) Diagram

#

Description
Price

-

Shock, Front Track

7043104

$391.86

1

Eyelet

1800104

Unavailable

2

BUSHING

1800036

Unavailable

3

Body, O-Ring

1800027

$2.02

3

Body, O-Ring

1800027

$2.02

3

Body, O-Ring

1800027

$2.02

3

Body, O-Ring

1800027

$2.02

4

Shaft

1800015

$71.43

5

O-RING

1800095

$1.49

6

Piston w/Band

1800229

$91.19

7

WASHER

1800050

$3.99

8

Band, Wear

1800026

Unavailable

9

Body, Threaded

1800105

$91.27

10

Sleeve

1800039

$15.99

11

BUSHING

1800033

$19.99

12

SCREW, BUTTON HEAD

1800109

$3.19

13

O-Ring

1800108

$1.49

14

RING, SNAP, RESERVOIR

1800019

$6.46

15

O-RING, BLEED SCREW

1800210

$1.59

15

Screw, Bleed

1800211

$2.23

15

Reservoir Piston w/Bleed Screw

1800214

$35.99

16

PISTON

1800217

$56.65

17

O-Ring

1800094

$1.49

18

Shim, Valve

1800052

Unavailable

19

Asm., Hose

1800111

$119.05

20

FITTING

1800205

$55.99

21

BALL, D-TENT

1800127

$6.39

21

BALL, D-TENT

1800127

$6.39

22

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

23

O-Ring, Knob

1800221

Unavailable

24

Knob

1800218

$51.99

25

Screw

1800203

$2.39

26

Housing, Adjust

1800220

$139.99

27

Screw w/Thru Hole

1800219

$11.19

28

Shim, Valve

1800072

Unavailable

29

Reservoir, O-Ring

1800028

$1.60

29

Reservoir, O-Ring

1800028

$1.60

30

Band, Wear

1800029

Unavailable

31

Body, Reservoir

1800120

$89.03

32

Cap, End

1800106

Unavailable

33

Valve, Needle

1800107

$16.35

34

Loop, Body

1800099

Unavailable

35

RETAINER, SPRING

1800046

$36.41

36

Nut

1800031

$3.99

37

Sleeve, Wear

1800047

$36.41

38

BUSHING, SHAFT

1800038

$12.79

39

Asm., Shaft Seal Housing

1800208

$119.99

40

O-Ring Shaft Seal Head

1800037

$1.60

41

Shaft Seal U-Cup

1800035

Unavailable

42

WIPER, D-TYPE

1800034

$31.99

43

SPRING, RETAINING RING

1800116

$60.70

44

SLEEVE

1800032

$19.99
