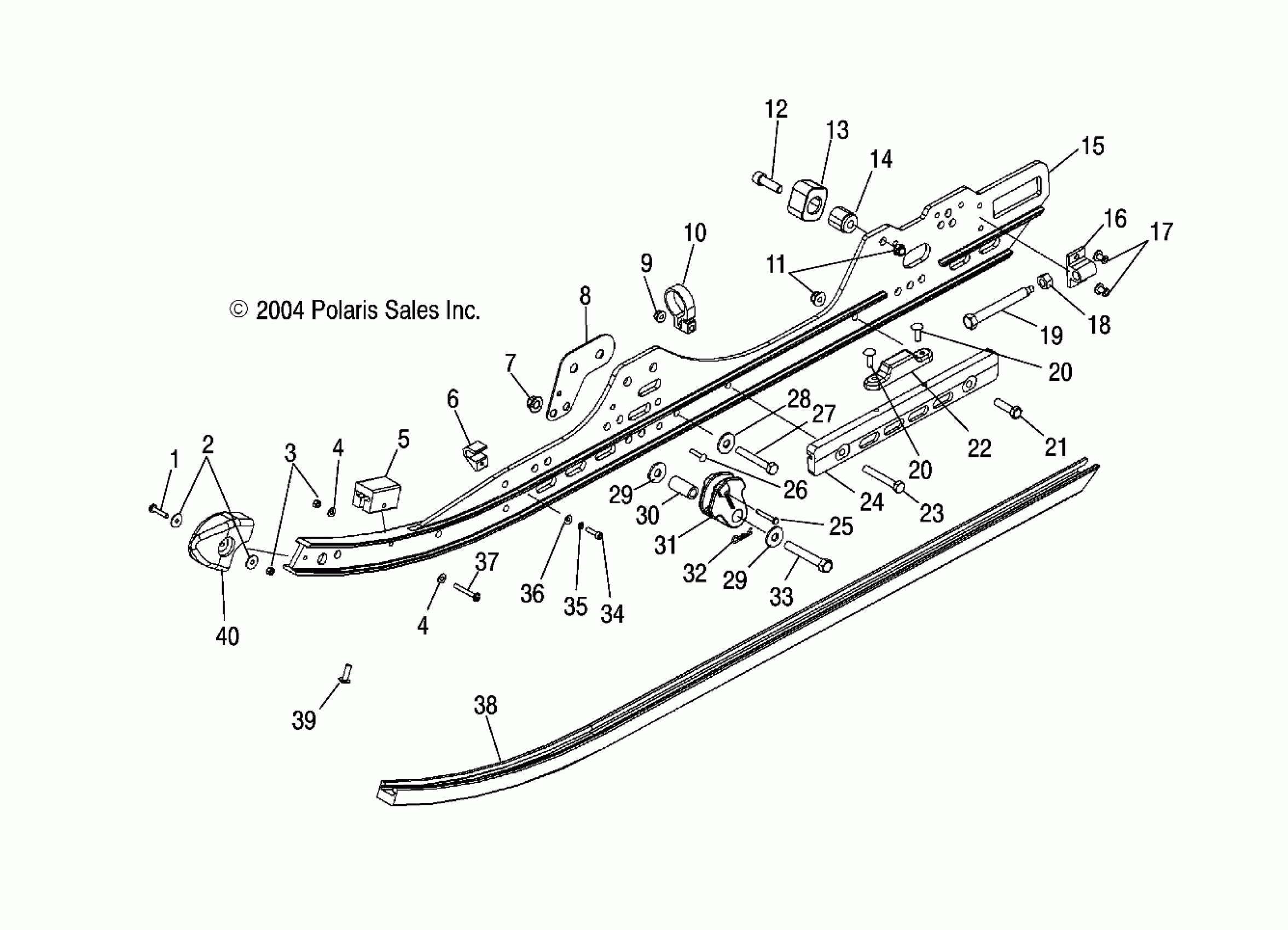

Polaris 440 IQ - S05MX4CS RAIL ASSEMBLY - S05MX4CS/CE (4992589258B09) Diagram

#

Description
Price

1

Bolt

7518335

Unavailable

2

WASHER

7555792

$4.79

3

Nut, Nylok

7541925

$1.49

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

5

BUMPER, FRONT, JOUNCE

5521499

$8.89

6

Clamp, Hose

5132997

$13.19

7

NUT-3/8-24 FLG LOC

7547263

$3.19

8

Bracket, Rail Reinforcement

5247759

$36.41

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

CLAMP, RESERVOIR

5132832

$23.99

11

Nut, FLEXLOC

7542411

$3.19

12

Bolt

7515545

$5.59

13

BUMPER, PIVOT ARM

5410925

$12.94

14

MOUNT, BUMPER

5131113

$28.32

15

Asm., Rail, 121 LH [Incl. 5,16,22,40]

1542119

$267.99

15

Asm., Rail, 121 RH [Incl. 5,16,22,40]

1542120

$308.99

16

Block, Idler Bolt Adjusting

5132444

$28.32

17

RIVET

7621501

$2.39

18

Nut

7547156

$9.59

19

Screw

7517773

$28.56

20

Screw

7515199

$1.49

20

Screw

7515199

$1.49

21

Bolt

7512392

$4.79

22

BUMPER

5432166

$5.59

23

SCREW

7517581

$1.59

24

Plate, Rail Reinforcement

5134769

$128.56

25

Pin, Clevis

7661123

$3.99

26

RIVET

7661845

$1.49

27

BOLT

7515319

$4.79

28

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

29

WASHER

7555983

Unavailable

29

WASHER

7555983

Unavailable

30

SPACER

5333948

$6.39

31

Guide, Spring Wire

5434389

$28.32

32

PIN, HITCH

7661644

$2.39

33

Bolt

7515438

$4.79

34

Screw

7512014

$3.59

35

Washer, Lock

7552615

$4.99

36

Washer, Flat

7555783

$3.99

37

Screw

7510504

$6.76

38

Hifax

5521632

$39.98

39

Screw

7515199

$1.49

40

Cap, Rail Tip

5435527

$27.78
