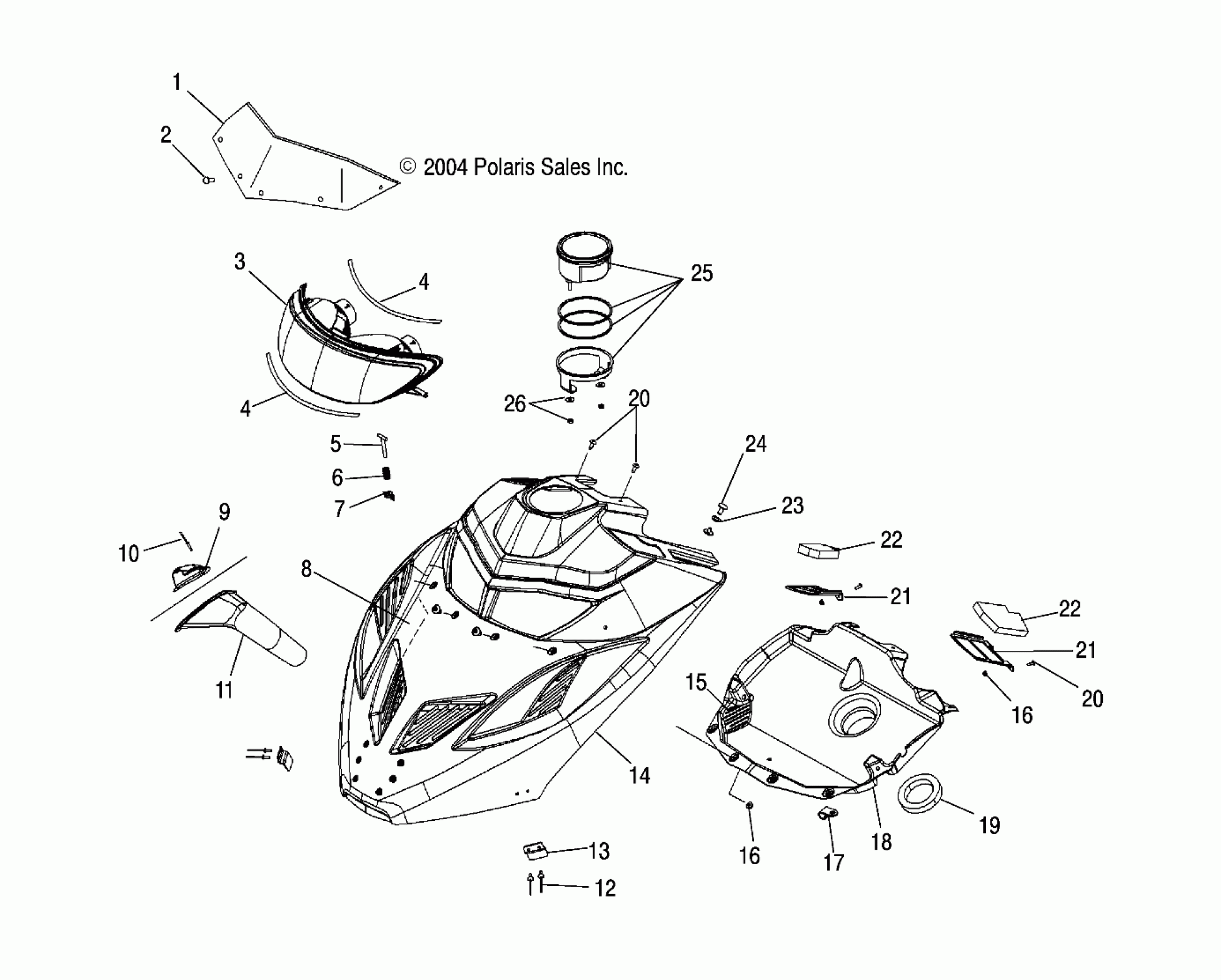

Polaris 440 IQ - S05MX4CS HOOD ASSEMBLY - S05MX4CS/CE (4992589258A08) Diagram

#

Description
Price

1

Windshield

5436033

Unavailable

2

RIVET

7621509

$1.49

3

BULB, HEADLIGHT

2870448

$24.99

3

Retainer, Bulb

4032063

Unavailable

3

Asm., Headlamp

2410132

Unavailable

3

HARNESS, HEADLIGHT [SEE ELECTRICAL PG. A12, REF. 15]

-------

Unavailable

4

Foam, Headlight

5812822

$38.71

4

Foam, Headlight, Seal

5812821

$38.71

4

Foam, Headlight

5812822

$38.71

4

Foam, Headlight, Seal

5812821

$38.71

5

Bolt, Tee Adjuster

7517872

Unavailable

6

Spring, Headlight Adjust

7041954

$3.22

7

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

8

Foil, Hood, RH

5812836

$44.51

9

Scoop, Brake Duct

5436173

Unavailable

10

RIVET

7621334

$1.49

11

Asm., Brake Duct

2633094

$116.17

11

Foil, Brake Duct

5812823

Unavailable

12

RIVET

7621472

$1.49

13

Bracket, Hood Retention

5249202

Unavailable

14

Asm., Hood, Indy Red [Incl. 8]

2633051-293

Unavailable

15

Foil, Plenum

5812840

Unavailable

16

Nut, Nylok

7518287

$3.19

16

Nut, Nylok

7518287

$3.19

17

CLAMP, RETAINER

7080372

$3.99

18

Plenum, Hood Intake [w/o Foil]

5436030

Unavailable

19

Foam, Intake

5812794

$12.57

20

Screw

7518281

$2.39

20

Screw

7518281

$2.39

21

Bracket, Intake Foam, Hood, LH

5249217

$59.99

21

Bracket, Intake Foam, Hood, RH

5249221

$59.99

21

Bracket, Intake Foam, Hood, LH

5249217

$59.99

21

Bracket, Intake Foam, Hood, RH

5249221

$59.99

22

Foam, Intake, Hood

5812818

$10.51

22

Foam, Intake, Hood

5812818

$10.51

23

WASHER

7558203

$3.19

24

Rivet

7621601

Unavailable

25

Cushion, Tach./Speedometer, Rubber

3280209

$3.99

25

Bracket, Tach./Speedometer

3280210

$28.32

25

Kit, Tachometer

2873888

$139.99

26

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

26

Washer, Flat

3280157

$2.39
