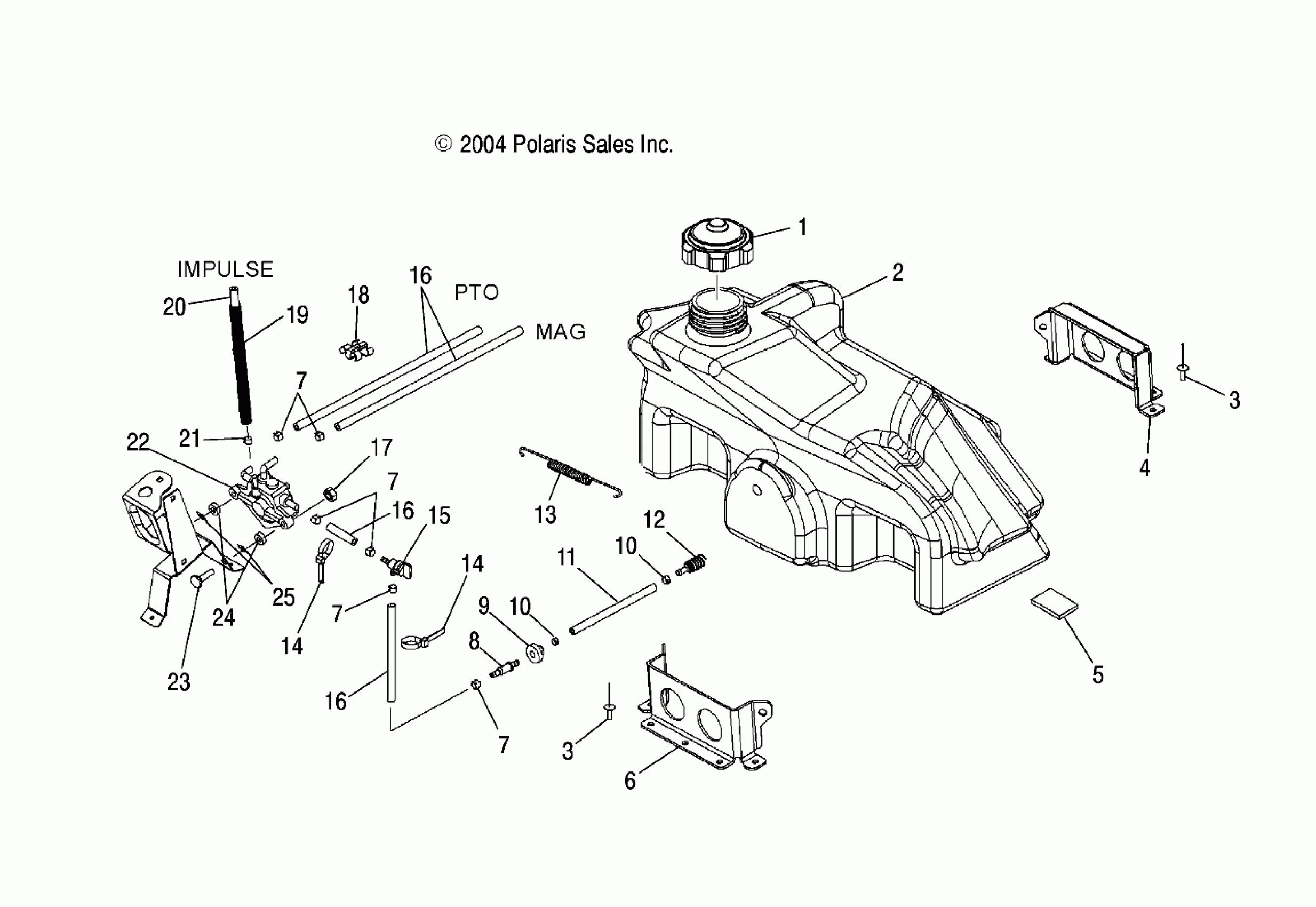

Polaris 440 IQ - S05MX4CS FUEL SYSTEM - S05MX4CS/CE (4992589258A05) Diagram

#

Description
Price

1

CAP, GAS, VENTED

2520296

$60.70

2

Asm., Tank Cover

2683578

$45.59

2

Asm., Fuel Tank [Incl. 12]

2520402

$142.70

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

Bracket, Tank Hold Down, Rear

5246117

$62.39

5

FOAM-SEAL,REAR COOLER

5810947

$4.03

6

Bracket, Tank Hold Down, Front

5246118

$49.59

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

8

Fitting

7052375

Unavailable

9

Grommet

5435941

$7.60

10

RING, COMPRESSION

7080402

$1.60

10

RING, COMPRESSION

7080402

$1.60

11

LINE, FUEL

8350019-600

Unavailable

12

Pickup w/Filter, Fuel

7052301

$12.94

13

Spring

7081061

$31.99

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

Valve, Fuel

7052249

$24.27

16

Line, Fuel

8350018-600

Unavailable

16

Line, Fuel

8350018-600

Unavailable

16

Line, Fuel

8350018-600

Unavailable

17

Nut, Nylok

7542122

$1.49

18

T-Clip

7080525

$2.59

19

TUBING, CONVOLUTED

8360052-305

Unavailable

20

Line, Fuel

8450040-600

Unavailable

21

HOSE CLAMP, RED

7080003

$1.49

22

Pump, Fuel

2520306

Unavailable

23

Bolt, Carriage

7512275

$3.99

24

Washer, Nylon

7555932

$2.39

25

Nut, Speed

7670021

$6.99
