Description

Price

1

Bolt

7515369

$4.79

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Washer

7555957

Unavailable

5

SPACER

5020291

Unavailable

6

ASM., DRIVEN CLUTCH, 216 [SEE DRIVEN CLUTCH PG. B14 FOR DETAILS]

-------

Unavailable

7

Belt, Drive

3211104

$109.99

8

Bolt, Carriage

7512377

$4.79

8

Bolt, Carriage

7512377

$4.79

9

WASHER

7555917

Unavailable

10

WASHER

7555864

Unavailable

11

Bushing

7556509

Unavailable

12

FLANGETTE

5248544

$29.03

13

Gasket, Jackshaft

5812714

$7.27

14

Bearing

3514338

$44.99

15

FLANGETTE, JACKSHAFT, BLACK

5248263-067

$39.99

16

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

17

Key

7721116

$12.94

18

Asm., Jackshaft [Incl. 19]

1332294

$503.48

19

RING, RETAINING

7710422

$3.99

20

Asm., Disc, Brake, Vented

1910197

Unavailable

21

SLEEVE, SEAL

5020588

$23.99

21

SLEEVE, SEAL

5020588

$23.99

22

O-RING

5410613

$1.99

22

O-RING

5410613

$1.99

23

Bolt, Carriage

7518367

$3.19

23

Bolt, Carriage

7518367

$3.19

24

NUT, FLANGED

7547180

$2.39

25

SCREW

7517632

$5.59

26

BEARING

3514525

$31.99

26

ASM., FLANGETTE W/SCREWS

1014299

$43.56

26

Asm., Drive Shaft

1590399

$399.99

27

Bushing

3280019

$11.99

28

FLANGETTE

5249151

$28.32

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

30

PALNUT

7547030

$4.79

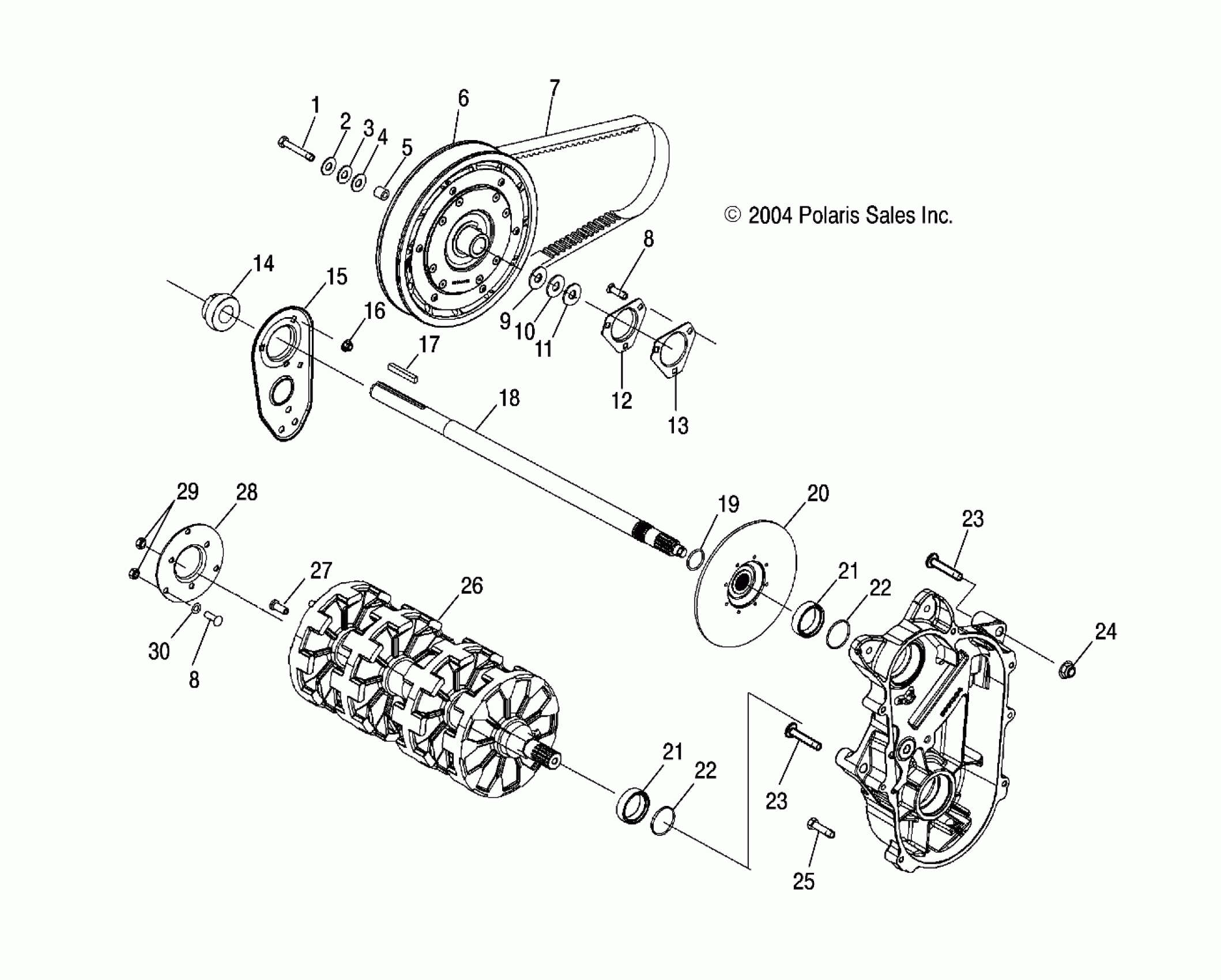

Polaris 440 IQ - S05MX4CS DRIVE TRAIN - S05MX4CS/CE (4992589258B08) Diagram

Bolt

WASHER, FLAT

Washer, Flat

Washer

SPACER

ASM., DRIVEN CLUTCH, 216 [SEE DRIVEN CLUTCH PG. B14 FOR DETAILS]

Belt, Drive

Bolt, Carriage

Bolt, Carriage

WASHER

WASHER

Bushing

FLANGETTE

Gasket, Jackshaft

Bearing

FLANGETTE, JACKSHAFT, BLACK

NUT-5/16-18 HX FLG NL-Y

Key

Asm., Jackshaft [Incl. 19]

RING, RETAINING

Asm., Disc, Brake, Vented

SLEEVE, SEAL

SLEEVE, SEAL

O-RING

O-RING

Bolt, Carriage

Bolt, Carriage

NUT, FLANGED

SCREW

BEARING

ASM., FLANGETTE W/SCREWS

Asm., Drive Shaft

Bushing

FLANGETTE

NUT-5/16-18 NYLOK-Y

PALNUT
