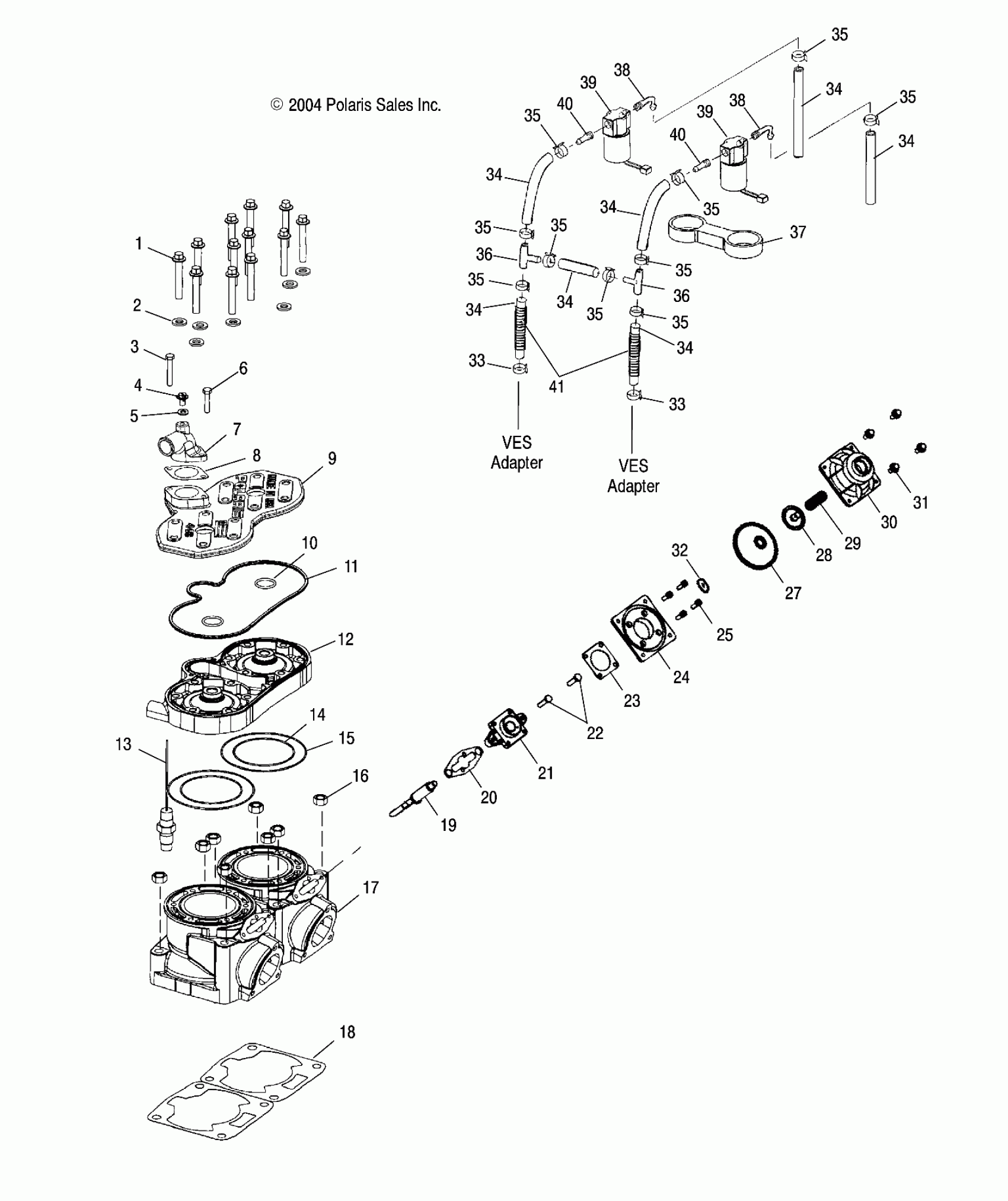

Polaris 440 IQ - S05MX4CS CYLINDER - S05MX4CS/CE (4992589258C13) Diagram

#

Description
Price

1

SCREW

7517281

$8.99

2

Washer

7556082

$7.19

3

SCREW

7516818

$5.59

4

SCREW

7517679

$13.59

5

WASHER, FLAT

7555998

$1.49

6

SCREW

7516822

$2.39

7

Cover, Thermostat

5134756

Unavailable

8

Gasket, Thermostat Cover

5830159

$20.22

9

Cover, Head, Liberty Red

5631539-366

Unavailable

10

O-RING

5411411

$1.49

11

Seal

5411465

$32.37

12

Head, Cylinder [High Octane]

3021651

Unavailable

12

Kit, 92 Octane Cylinder Head [Incl. 8,10,11,14,15 and Clutch Weights]

2202188

$236.17

13

Sensor, Thermister

4010398

$36.41

14

O-Ring

5411199

$10.51

15

O-RING

5411359

$15.99

16

NUT

7547013

$1.99

17

Cylinder

3021604

$691.99

18

Gasket, Cylinder Base

5812494

$24.99

19

Asm., Guillotine

1202159

$119.05

20

Gasket

5812087

$9.99

21

Asm., Housing w/Bushing

1201919

Unavailable

22

Screw

7516823

$3.19

23

Gasket, Housing

5433375

Unavailable

24

Asm., Adapter

1202037

$60.99

25

Screw

7517314

Unavailable

27

Bellows, Exhaust

5410000

$44.51

28

Cap/Nut, Bellows, Exhaust Valve, Dom

5631381

$33.87

29

Spring, Compression, Red/White

7041786-01

$15.67

30

ASM., HOUSING W/BUSHING

1202640

$15.99

31

SCREW

7516820

$5.59

32

Washer, Bellows, Exhaust Valve, Dom

5132950

Unavailable

33

HOSE CLAMP, RED

7080003

$1.49

33

HOSE CLAMP, RED

7080003

$1.49

34

Line, Fuel

8450040-600

Unavailable

34

Line, Fuel

8450040-600

Unavailable

34

Line, Fuel

8450040-600

Unavailable

34

Line, Fuel

8450040-600

Unavailable

34

Line, Fuel

8450040-600

Unavailable

34

Line, Fuel

8450040-600

Unavailable

34

Line, Fuel

8450040-600

Unavailable

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

36

T-Fitting

7052075

$9.59

36

T-Fitting

7052075

$9.59

37

Retainer, Solenoid

5412092

$35.99

38

FITTING, 90 DEGREE

7052065

$7.19

38

FITTING, 90 DEGREE

7052065

$7.19

39

Valve, Control

4010305

$119.99

39

Valve, Control

4010305

$119.99

40

Fitting

7052099

$4.79

40

Fitting

7052099

$4.79

41

TUBING, CONVOLUTED

8360052-30

$6.39
