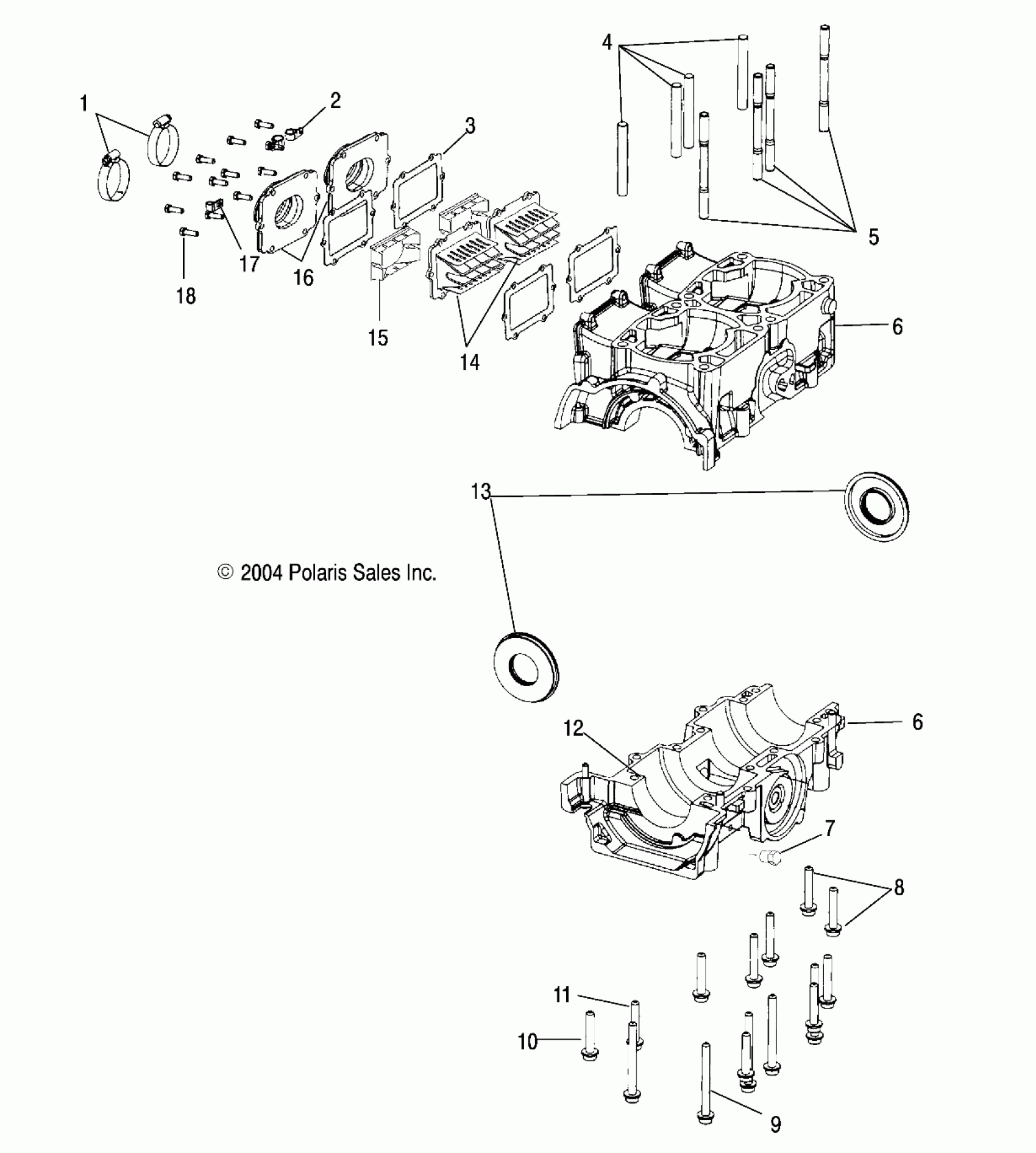

Polaris 440 IQ - S05MX4CS CRANKCASE - S05MX4CS/CE (4992589258C10) Diagram

Description

Price

Clamp, Hose

7080681

$9.59

Clamp, Wire/Tube

7080717

$3.03

Gasket, Reed

5412817

$4.15

Stud, Cylinder

5132196

$20.63

Stud, Cylinder

5132197

$21.27

Kit, Crankcase [Incl. 4,5,7-12]

2202948

Unavailable

Kit, Crankcase [Incl. 4,5,7-12]

2202948

Unavailable

Plug

7051529

$15.99

BOLT

7517785

$9.59

BOLT

7517784

$8.79

SCREW

7516825

$5.59

BOLT

7517786

$6.39

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

SEAL, FLANGED

5411394

$29.99

Asm., Reed Valve

1203046

Unavailable

Kit, Reed Petal Replacement

2202946

Unavailable

Stuffer, Reed Valve

5436145

$23.19

Adaptor, Carburetor

1202965

$64.75

CLAMP, HOSE

7080683

$2.39

SCREW

7517398

$3.19
