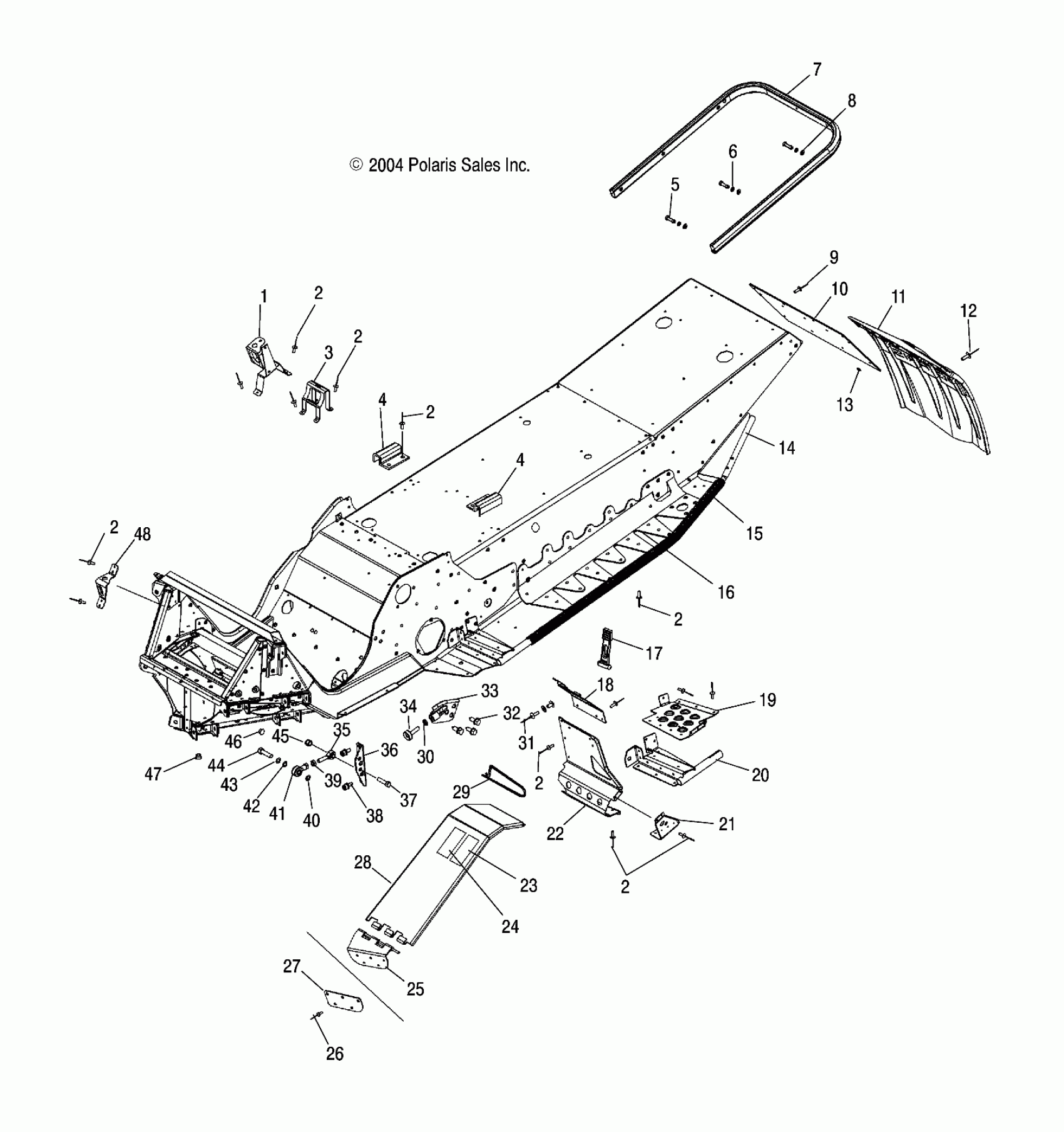

Polaris 440 IQ - S05MX4CS CHASSIS - S05MX4CS/CE (4992589258A03) Diagram

#

Description
Price

-

Asm., Chassis

1014696-309

Unavailable

1

Bracket, CDI

5248386

$17.43

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

3

BRACKET, MOUNT, AIRBOX

5248960

$109.99

4

HOLDDOWN, SEAT MOUNT, FRONT [SEE SEAT PG. A6, REF. 10]

-------

Unavailable

4

HOLDDOWN, SEAT MOUNT, FRONT [SEE SEAT PG. A6, REF. 10]

-------

Unavailable

5

Bolt

7512232

$1.49

6

WASHER, SPRING LOCK

7552801

$1.59

7

Asm., Bumper, Rear, Natural

2632955-309

Unavailable

8

Washer, Flat

7558301

$1.49

9

RIVET

7621467

$1.49

10

Extension, Snow Flap

5435803

$13.19

11

Flap, Snow, Black w/White

5434954-1038

Unavailable

12

RIVET

7621472

$1.49

13

Washer

7555904

$1.49

14

Tube, Tunnel Reinforcement, Rear

5248509

$49.99

15

Grip, Tunnel, RH

5134495

$235.99

15

Grip, Tunnel, LH

5134494

Unavailable

16

Brace, Tunnel, Fishbone, LH

5248210

$68.79

16

Brace, Tunnel, Fishbone, RH

5248211

$99.99

17

STRAP-AIRBOX TOP

5433150

$24.27

18

Bracket, Clutch Guard, Rear

5240026

$24.79

19

Footrest, Lower, LH

5248549

$214.51

19

Footrest, Lower, RH

5248550

$214.51

20

Support, Footrest, LH

1014881

Unavailable

20

Support, Footrest, RH

1014882

Unavailable

21

Support, Footrest, Pan Mount, RH

5248309

Unavailable

21

Support, Footrest, Pan Mount, LH

5248308

Unavailable

22

Footrest, Upper, LH

5248044

Unavailable

22

Footrest, Upper, RH

5248045

$107.19

23

Decal, Belt Removal

7171037

Unavailable

24

DECAL-WARNING,ENGINE & CLUTCH

7079297

Unavailable

25

Asm., Clutch Guard

1010007

$97.13

26

Rivet

7621402

$1.49

27

Plate, Backer, Clutch Guard

5249060

$9.70

28

Cover, Clutch Guard

5240027

$113.32

29

Pin, Retaining

7080216

$9.70

30

NUT, HEX

7542414

$4.79

31

Rivet

7621601

Unavailable

32

Screw

7517854

$5.59

33

Stop, Torque

1013835

Unavailable

34

Stop, Torque, Course

3021354

$24.27

35

ROD END, RH

7060167

$48.56

36

Bracket, Torque Limiter

5246537

$23.99

37

Bolt

7512404

$3.99

38

Asm., Screw and Washer

7516730

$6.39

39

Nut, Hex, RH

7542401

$2.39

40

Washer, Flat

7555797

$3.99

41

Limiter, Torque

3021411

$93.08

42

WASHER

7555823

$3.99

43

Washer, Spring Lock

7552603

$1.49

44

Bolt

7515521

$3.99

45

Nut, Nylok

7542439

$1.49

46

PLUG, HOLE

7080416

$5.65

47

PLUG, TUBE

7081210

$3.99

48

Bracket, Chassis/Pipe

5249014

$16.47
