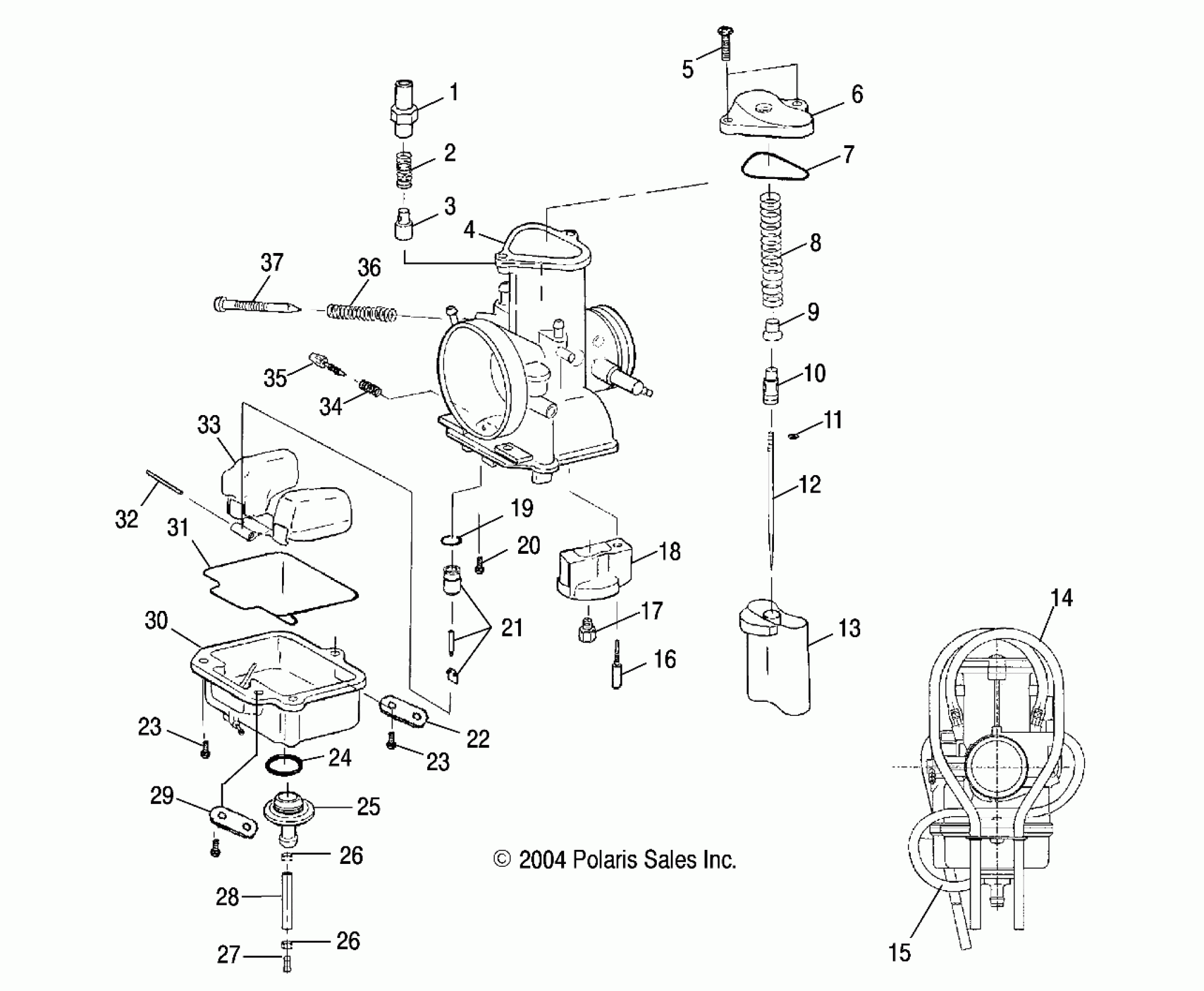

Polaris 440 IQ - S05MX4CS CARBURETOR - S05MX4CS/CE (4992589258D01) Diagram

#

Description
Price

1

Holder, Guide

3131086

$15.87

2

Spring

3130829

$12.94

3

Plunger

3131100

Unavailable

4

Asm., Carburetor [Incl. 1-3,5-25,31-36]

1253561

Unavailable

5

Screw

3131066

Unavailable

6

Asm., Top Cap

3131092

$38.71

7

O-Ring

3131138

$18.99

8

Spring

3131106

Unavailable

9

Ring, Spring

3131054

$6.35

10

Guide Holder

3131053

$25.59

11

E-Ring

3130868

$8.89

12

Needle, Jet

3131462

Unavailable

13

Valve, Piston

3131043

$133.56

14

Hose, Vent Line

3131321

$28.15

15

Clip

3131411

$3.03

16

Jet, Pilot, #40

3131025

Unavailable

17

Jet, Main, #290

3130132

$7.27

18

Holder

3131056

$38.71

19

Washer

3130949

$3.99

20

Screw

3131089

Unavailable

21

Asm., Valve, Needle

3131062

$60.70

22

Plate

3131403

$4.95

23

SCREW

3130933

$2.39

23

SCREW

3130933

$2.39

24

O-Ring

3131104

Unavailable

25

Fitting

5020476

$10.63

26

HOSE CLAMP, RED

7080003

$1.49

26

HOSE CLAMP, RED

7080003

$1.49

27

Plug, Trap

5431893

$12.94

28

Hose, Watertrap

5411708

Unavailable

29

Plate

3131090

$5.75

30

Asm., Float Body

3131412

$53.59

31

O-Ring

3131105

$16.17

32

Pin, Float

3131060

$4.15

33

Float

3131102

$78.57

34

Spring, Air Adjuster

3130407

Unavailable

35

Screw, Air

3131063

$6.75

36

Spring

3131087

$3.97

37

Adjuster

3131088

$12.39
