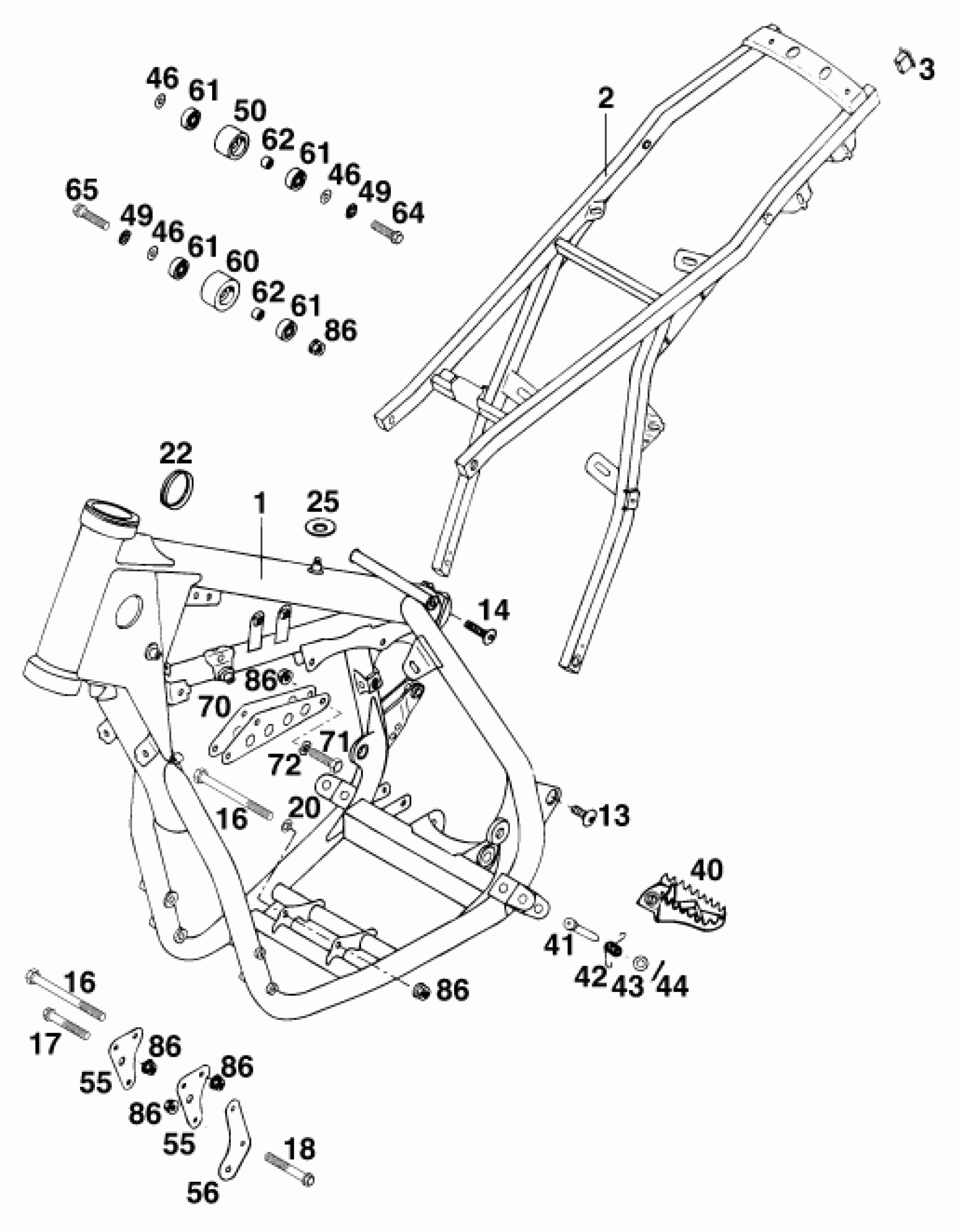

KTM 440 E-XC WP <1995> FRAME Diagram

#

Description
Price

1

FRAME 440/500/550 '94

56503001900

Unavailable

2

SUB FRAME STEEL 440/500/550'94

56503002900

Unavailable

3

PLUG 12 X 17 MM

58303002090

$1.49

13

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

14

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

16

HH SCREW DIN931 M8x110

0931081103

$2.39

17

HH COLLAR SCREW M 8X50 WS=10

0015080503

$2.05

18

HH COLLAR SCREW M8X55 WS=10

0015080553

$5.23

20

washer DIN 125 A -8.4

0125080003

$1.49

22

SLEEVE FOR STEERING HEAD

54635022000

$1.54

25

INSOLATE WASHER 12X28X3

51005067100

$2.05

40

% FOOT REST L/S WIDE '

54603040100

Unavailable

40

FOOT REST R/S WIDE '

54603140100

Unavailable

41

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

46

WINDOW PANE 8,4X14X1MM

50203028000

Unavailable

49

LOCK WASHER 8MM

36003014000

Unavailable

50

CHAIN ROLL D=30MM

50203053000

$6.72

55

ENGINE BRACKET STEEL

56503055000

$12.10

56

* EXHAUST BRACKET 495

56505073000

Unavailable

60

CHAIN ROLL D=35MM

50203053100

Unavailable

61

Grooved ball bearing 608 2RS C

0625006087

$21.40

62

BUSHING 8.2 X 12 X 6

74003021000

$3.08

64

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

65

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

70

CYLINDER HEAD BRACKET

54503045000

Unavailable

71

HH SCREW DIN0933-M 8X30

0933080303

$2.05

72

* SPRING WASHER DIN137 B8

0137080000

Unavailable

86

54310086000

Unavailable
