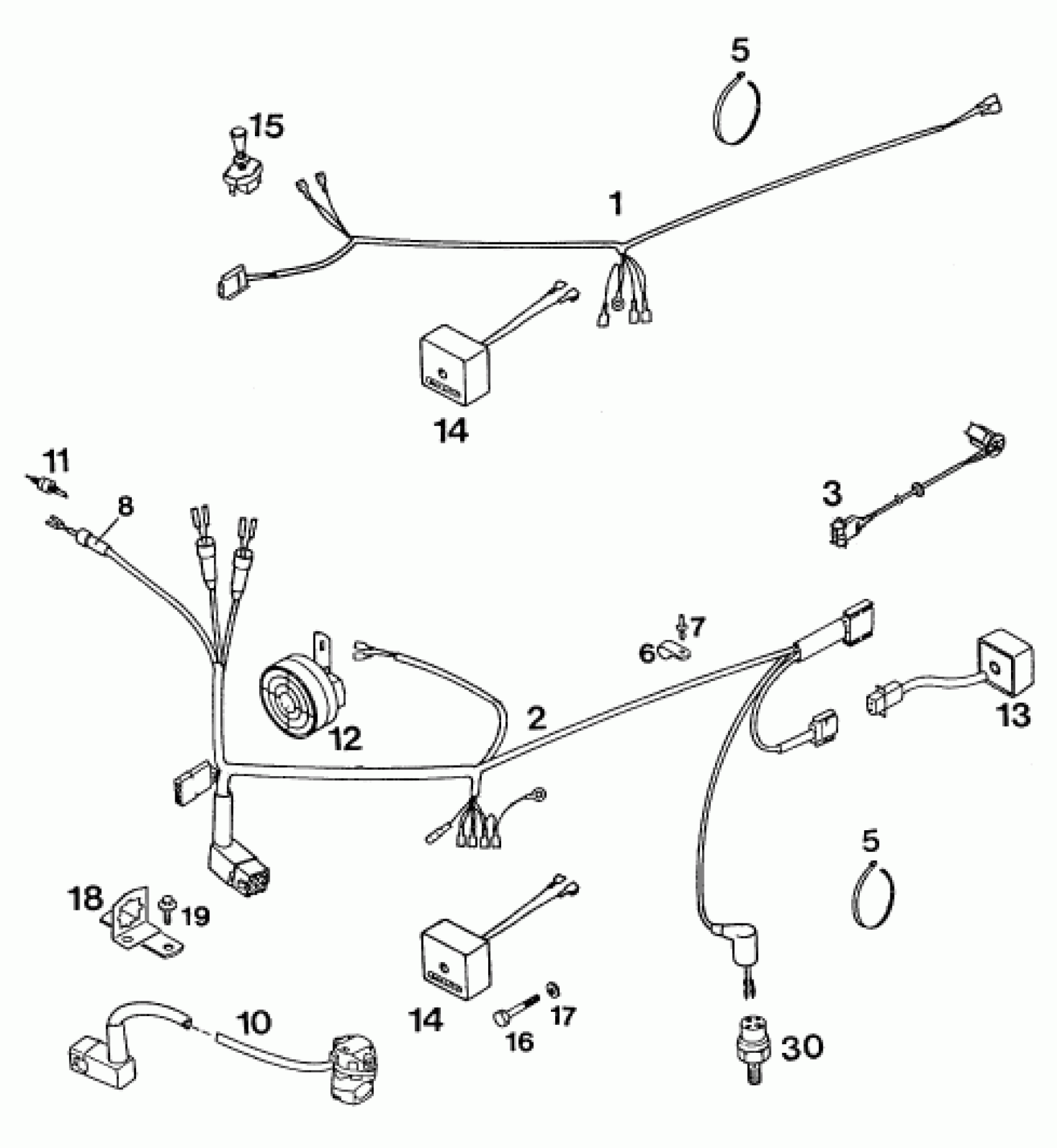

KTM 440 E-XC <1994> WIRING HARNESS Diagram

#

Description
Price

1

*CABLE HARNESS 125/360 EXC USA

54611075000

Unavailable

2

CABLE HARNESS 125/360 EXC

54611275100

$92.97

3

REAR WIRNING HARNESS '93

58311276000

$41.16

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

6

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

7

STUD 1120 HEYCO

57013071000

$1.49

8

* RUBBER CAP

14011051027

Unavailable

10

LIGHT SWITCH CEV 9607 '93

58311070000

$32.03

11

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

12

51011060028

Unavailable

13

VOLTAGE REGULATOR TYMPANIUM'90

58011034500

$119.21

14

VOLTAGE REGULATOR 12V

54411034000

$77.57

15

PULL SWITCH LOOSE

55011599000

$23.09

16

HH SCREW DIN931 M6x35

0931060353

Unavailable

17

WASHER 6 X 12 X 3

12011016000

$1.49

18

BRACKET FOR CONNECTOR '93

54611083100

Unavailable

19

HH COLLAR SCREW M6X10 WS=8

54635039100

Unavailable

30

BRAKE LIGHT SWITCH

42013121000

$31.34
