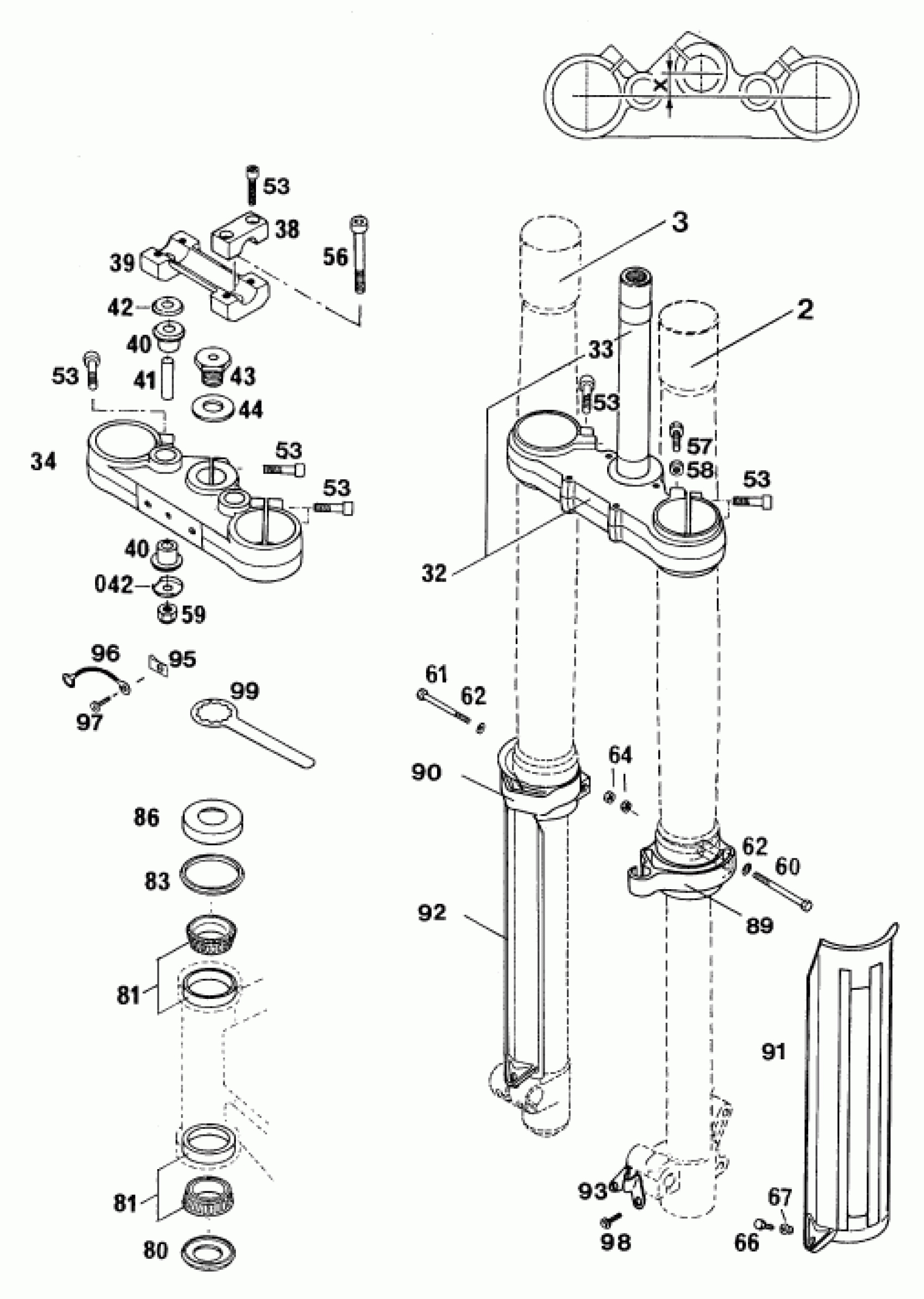

KTM 440 E-XC <1994> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

2

* FORK LEG L/S K23M94US

54601402900

Unavailable

3

* FORK LEG R/S K23M94US

54601502900

Unavailable

32

TRIPLE CLAMP BOTTOM CPL. X=22

58001032744

Unavailable

33

FORK TUBE L=244 '91

50101033100

$85.17

34

*TRIPLE CLAMP TOP X=22MM/D=54M

58001034700

Unavailable

38

56401038000

Unavailable

39

HANDLEBAR SUPPORT

56401039000

Unavailable

40

rubber bushing

56401040000

$5.23

41

SPACER TUBE 10,2X12X44

56401041100

$5.88

42

washer 10.5x32x2

56401042000

$4.11

42

WASHER 10,5X31

56401142000

$4.11

43

HH SCREW M20X1,5

56401043000

$19.86

44

WASHER 21X38X3

56401044000

$5.00

53

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

53

AH SCREW DIN0912-M 8X35

0912080353

$2.05

56

AH SCREW DIN7984-M10X70

0984100702

Unavailable

57

% AH SCREW DIN912 M7x20

0912070203

Unavailable

58

HEXAGON NUT DIN0934-M 7

0934070003

$1.49

59

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

60

HH SCREW DIN931 M5x40

0931050403

$1.49

61

HH SCREW DIN931 M5X45

0931050453

$2.05

62

WASHER DIN0125-A 5,3

0125050003

$1.49

64

Self locking nut DIN 985 M5

0985050003

$2.05

66

HH SCREW DIN0933-M 5X16

0933050163

$1.49

67

COLLAR BUSHING F.SLIDING PROT.

54601094100

$4.06

80

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

81

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

83

STEARING HEAD GASKET TOP

54601184000

$7.10

86

STEERING HEAD COVER

54201086000

$8.50

89

PROTECTOR GUIDE L/S WHITE

54601090000

$15.76

90

PROTECTOR GUIDE R/S WHITE

54601190000

$15.01

91

SLIDING PROTECTOR L/S WHITE

54601091000

$19.79

92

* SLIDING PROTECTOR R/S WHITE

54601191000

Unavailable

93

CLAMP FOR BRAKE HOSE '94

50201090000

$4.22

95

SNAP NUT

31005042000

$1.73

96

GROUND CABLE

57101008000

Unavailable

97

SHEET MET.SCR.DIN7981 4,8x19

0981480193

Unavailable

99

RING WRENCH WS=32

54212035000

Unavailable
