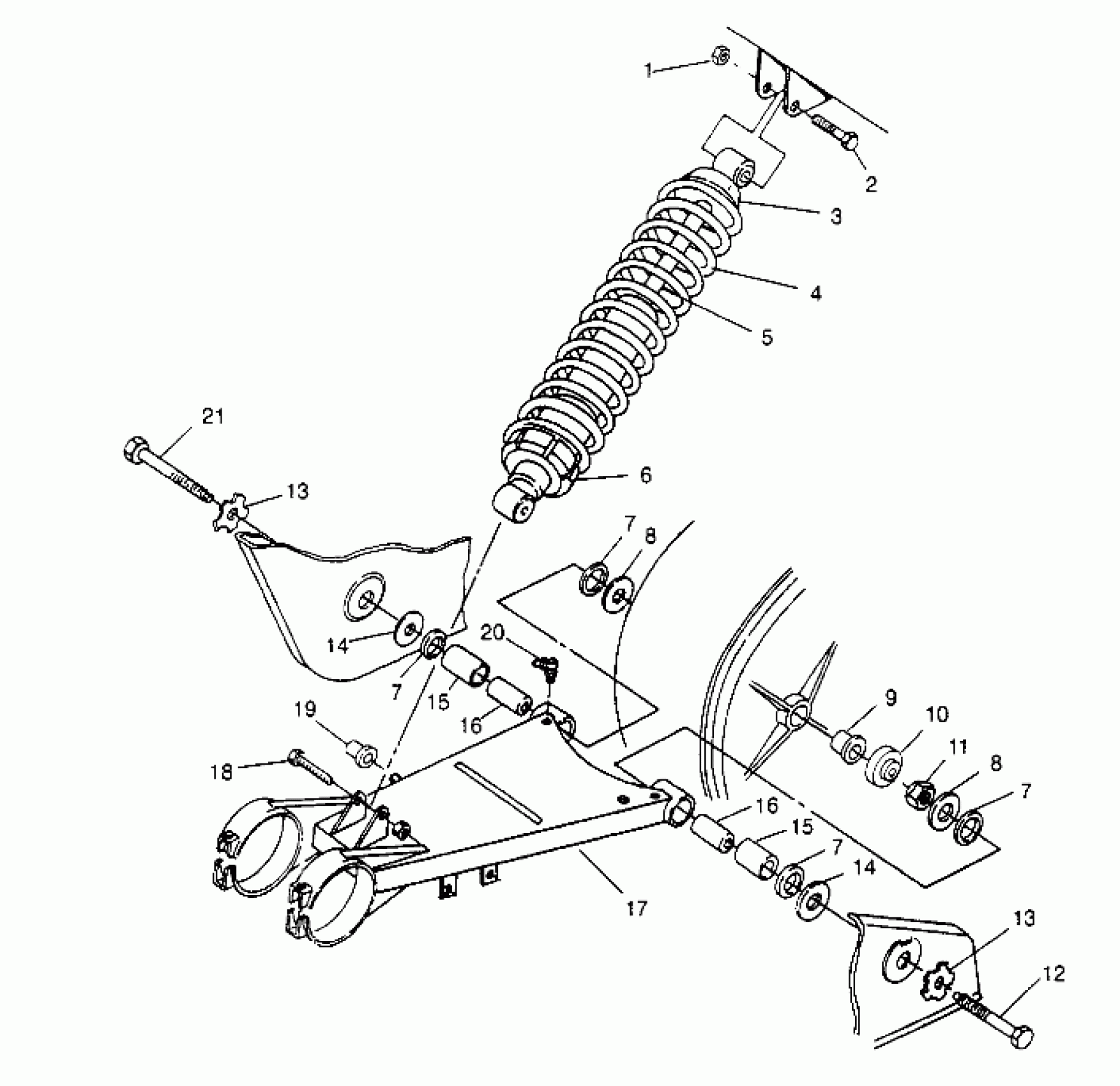

Polaris 400L 6X6 - W948740 SWING ARM/SHOCK MOUNTING 6x6 400L W948740 (4926802680C004) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER-TOP (Top)

5220225

$10.39

4

SPRING,COMP,REAR,RED

7041305-093

Unavailable

5

SHOCK

7041220

Unavailable

6

SPACER,SHOCK RETAINER(10)

5210953

$6.39

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

8

WASHER(10)

7555779

Unavailable

8

WASHER(10)

7555779

Unavailable

9

Bushing, Pivot (See Page A43, Ref. 4)

-------

Unavailable

10

GUIDE, CHAIN

5431310

$32.37

11

NUT,CROWN LOCK(10)

7542601

Unavailable

12

BOLT, SHOULDER

7512702

Unavailable

13

PLATE,BOLT LOCK

5220958

$35.99

13

PLATE,BOLT LOCK

5220958

$35.99

14

BUSHING, MACH.(10)

7555752

Unavailable

14

BUSHING, MACH.(10)

7555752

Unavailable

15

BEARING,SWINGARM

3576512

Unavailable

15

BEARING,SWINGARM

3576512

Unavailable

16

BUSHING,SWING ARM

5010255

Unavailable

16

BUSHING,SWING ARM

5010255

Unavailable

17

DESC NOT_AVAILABLE (Incl. 7, 15, 20)

1580063-067

Unavailable

18

BOLT(10)

7515438

$4.79

19

HOLDER

5130712

Unavailable

20

FITTING, LUBE.

7080438

$10.39

21

BOLT, SHOULDER

7512701

$23.99
