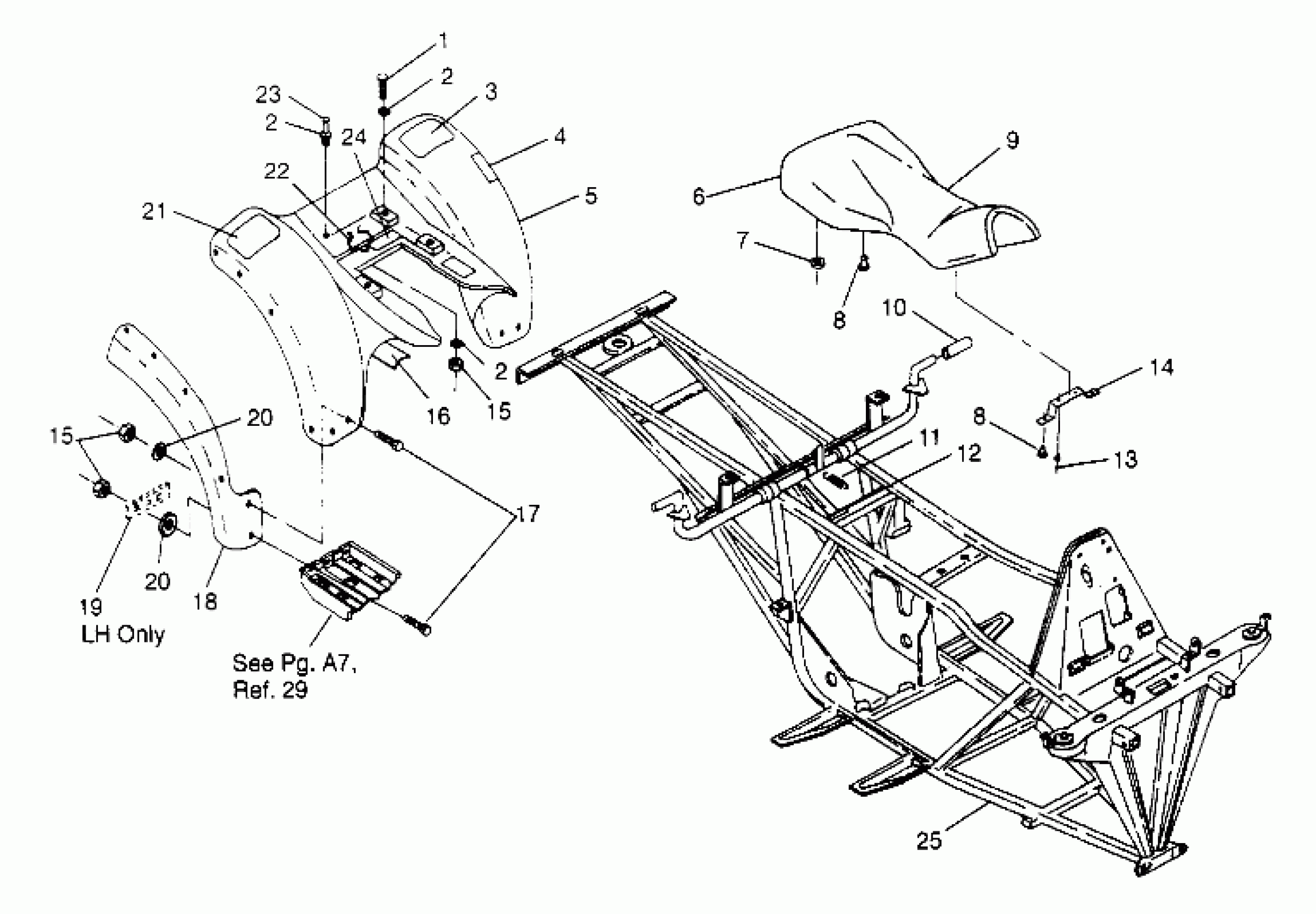

Polaris 400L 6X6 - W948740 REAR CAB ASSEMBLY 6x6 400L W948740 (4926802680A006) Diagram

#

Description
Price

1

BOLT(10)

7512232

$1.19

2

WASHER(10)

7558301

$1.19

2

WASHER(10)

7558301

$1.19

2

WASHER(10)

7558301

$1.19

3

DECAL,LOAD DIST.(350-6X6)

7074109

Unavailable

4

DECAL,TIRE PRESSURE(350-6X6)

7074112

Unavailable

5

CAB,REAR,RED,(LIQ.6WHL) (Incl. 3,21)

2631557-136

Unavailable

6

COVER,SEAT,STL.GRY.

2681730-132

Unavailable

7

Grommet, Rubber

5410774

$3.97

8

Bumper, Rubber

5410414

$3.17

8

Bumper, Rubber

5410414

$3.17

9

SEAT ASM,(ATV),STL.GRY. (Incl. 6-8)

2681729-132

Unavailable

10

GRIP

5431097

Unavailable

11

SPRING,LATCH,RETURN

7042032

Unavailable

12

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

13

BLIND RIVET(50)

7621403

$1.19

14

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

15

NUT-LOCK(10)

7542122

$1.19

15

NUT-LOCK(10)

7542122

$1.19

16

Foil, Rear Cab

5810957

Unavailable

16

FOIL, REAR CAB, SMALL (Small)

5810991

Unavailable

17

BOLT, BLACK(10)

7512282

Unavailable

18

MUDFLAP,LH REAR

5850103

$23.02

18

MUDFLAP,RH,R.LOWER

5850109

Unavailable

19

BRKT, LH MUD FLAP

5211131-067

Unavailable

19

DESC NOT_AVAILABLE

5211120-067

Unavailable

20

WASHER, FLAT(10)

7555859

$1.19

20

WASHER, FLAT(10)

7555859

$1.19

21

DECAL(CPSC),OPER.WRN. [No Longer Available]

7072715

Unavailable

22

RETAINER,TOOL POUCH

7080385

Unavailable

23

PIN, SEAT LATCH

5020663

Unavailable

24

DECAL,CARB.INFO.

7073761

Unavailable

25

FRAME,(400-6X6)

1040358-067

$695.22
