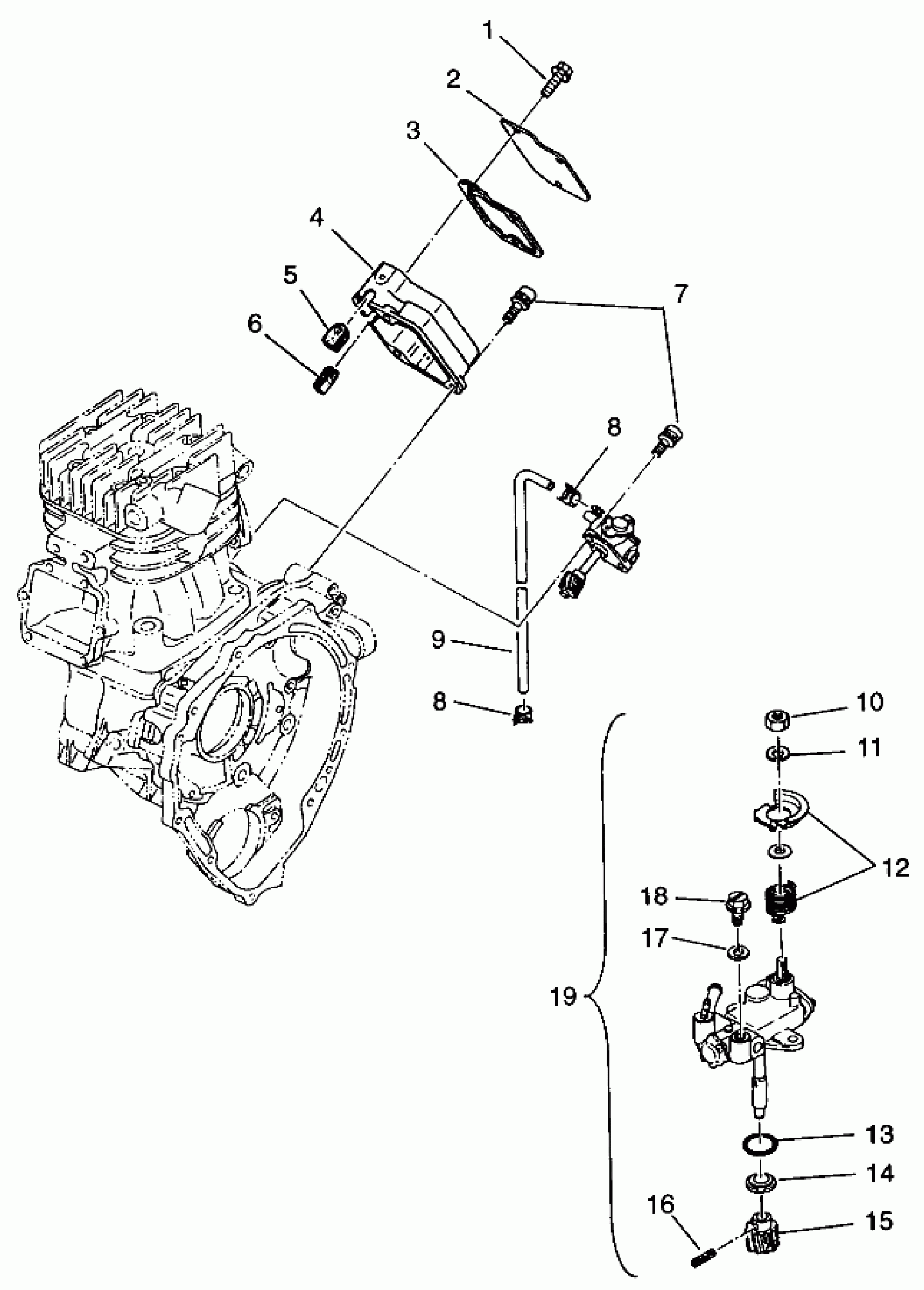

Polaris 400L 6X6 - W948740 OIL PUMP 6x6 400L W948740 (4926802680D009) Diagram

#

Description
Price

1

BOLT&WASHER ASM.(10)

3084757

$2.39

2

COVER (Oil Pump Case)

3084204

Unavailable

3

GASKET,OIL PUMP (Oil Pump Case)

3084401

Unavailable

4

CASE, OIL PUMP (Oil Pump)

3084756

Unavailable

5

GROMMET Substituted by 3086777

3084201

Unavailable

6

GROMMET Substituted by 3086779

3084758

Unavailable

7

SCREW&WASHER,(10)

3083783

$2.39

8

CLAMP-HOSE,(10)

3083141

$1.49

8

CLAMP-HOSE,(10)

3083141

$1.49

9

PIPE, RUBBER Substituted by 3086776

3084199

Unavailable

10

NUT(10)

3083120

$3.19

11

WASHER-SPRING(10)

3083121

$299.99

12

SPRING&LEVER SET(FOR 3085285)

3085571

Unavailable

13

O RING

3083127

Unavailable

14

Spacer

3084195

Unavailable

15

Wheel

3084196

Unavailable

16

Pin, Spring

3084197

Unavailable

17

Washer

3084194

$6.23

18

SCREW-AIR VENT

3083125

Unavailable

19

PUMP, OIL (Incl. 10-18)

3084755

Unavailable
