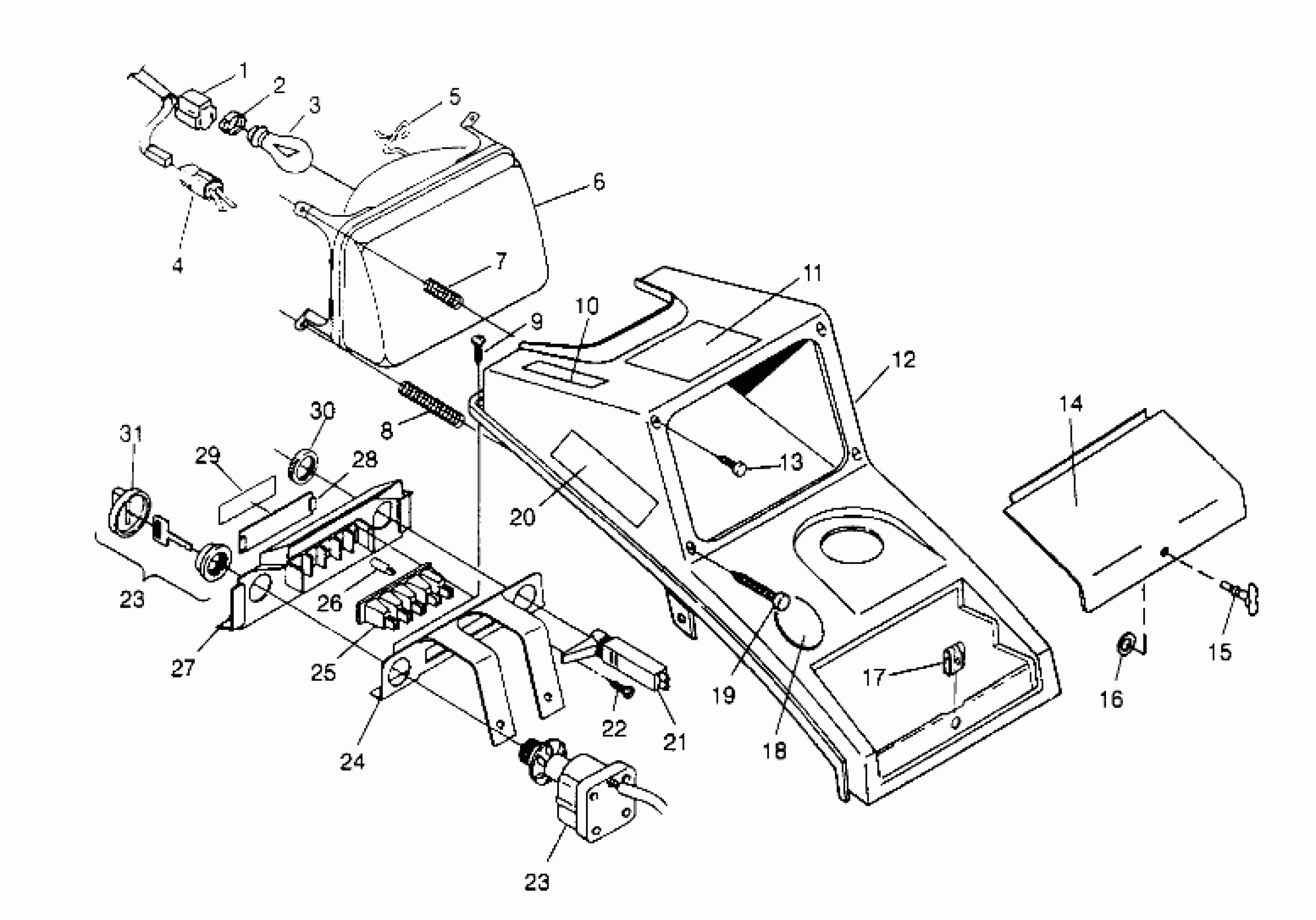

Polaris 400L 6X6 - W948740 HEADLIGHT ASSEMBLY 6x6 400L W948740 (4926802680A014) Diagram

#

Description
Price

1

HARNESS, HEADLIGHT

2460424

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

HSG,DUAL,FEMALE

4040024

$3.99

5

RETAINER,H/L BULB

4032063

Unavailable

6

H/L ASM,W/BULBSEAL

4032065

Unavailable

7

SPRING-ADJ

4032002

Unavailable

8

SPRING,ADJ.

4032041

Unavailable

9

SCREW(10)

7512017

$4.79

10

DECAL,WARN,(DEMAND 6 SW.) Substituted by 7074935

7073163

Unavailable

11

DECAL,CERTIF,(6-WHL.)

7074199

Unavailable

12

COVER,OIL TANK&H/L

5431202-132

Unavailable

13

SCREW, ADJ.(10)

4032003

Unavailable

14

DOOR,ACCESS,GRAY,STG.

5431201-132

Unavailable

15

FASTENER, 1/4 TURN(10)

7670064

$6.23

16

RING,SPLIT RETAINER(10)

7670065

$1.99

17

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

18

LOGO,"40 YEARS"

7074695

Unavailable

19

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

20

Decal - "Polaris", Side Panel (See Pg. A5, Ref. 1)

-------

Unavailable

21

KIT-CHOKE CONTROL

2200188

$24.27

21

CABLE, CHOKE

7080371

$97.13

22

SCREW, SEM(10)

7511862

$6.99

23

SWITCH, IGNITION (See Footnote Below)

4110140

$137.60

23

SWITCH, IGNITION (See Footnote Below)

4110140

$137.60

24

BRKT, IGN. PANEL

5220965-067

Unavailable

25

STRIP, SOCKET

4032037

$27.19

26

BULB

4030042

Unavailable

27

PANEL, IGNITION

5430995

Unavailable

28

LENS ASM,PILOT LIGHT (Incl. 29)

2652049

Unavailable

29

DECAL, PANEL [No Longer Available]

7072528

Unavailable

30

Nut

7080229

$19.99

31

COVER, KEY Substituted by 5433534 Note: Ignition key may be ordered by using the 4 digit number on the key.

5431964

Unavailable
