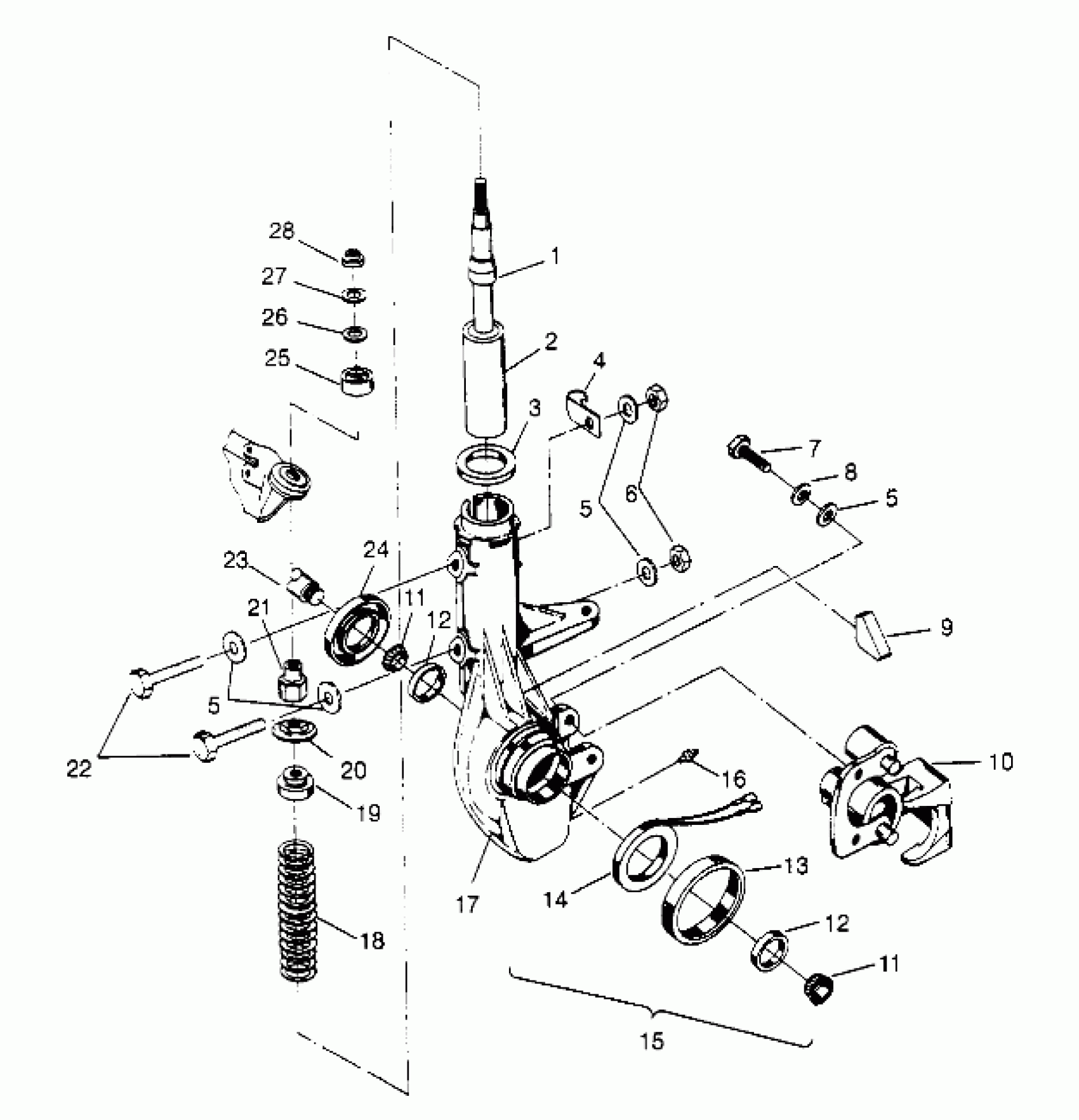

Polaris 400L 6X6 - W948740 FRONT STRUT ASSEMBLY 6x6 400L W948740 (4926802680B005) Diagram

#

Description
Price

1

BUMPER, STRUT Substituted by 5411468

5410791

Unavailable

2

STRUT, FRONT Substituted by 7041451

7041304

$68.79

3

WASHER-2.06X2.62X.105-Y

5211115

$3.97

4

CLAMP(10) Substituted by 7080573

7080347

$7.14

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

6

NUT FLEX-LOC(10)

7542303

$6.35

7

SCREW, CAP(10)

7512365

$1.19

8

LOCK WASHER(10)

7552901

$1.19

9

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

10

CAL.ASM,LH FR.BRAKE Substituted by 1910181

1910078

Unavailable

11

BRG,TAPER.ROLL.CONE

3554506

$31.75

11

BRG,TAPER.ROLL.CONE

3554506

$31.75

12

BRG,TAPER,ROLL CUP

3554507

$31.75

12

BRG,TAPER,ROLL CUP

3554507

$31.75

13

SLEEVE,STRUT HUB SEAL

5222193

$64.75

14

COIL, MAGNETIC

4170003

$64.75

15

HUBSTRUT ASM, LH (Incl. 9,13-15,17)

2200316

Unavailable

15

HUBSTRUT ASM, RH (Incl. 9,13-15,17)

2200317

Unavailable

16

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

17

SUPPORT,LH HUB STRUT [No Longer Available]

5130702

Unavailable

17

SUPPORT,RH HUB STRUT [No Longer Available]

5130703

Unavailable

18

SPRING, STRUT

7041161-067

Unavailable

19

RETAINER,SPRING,TOP

5220602

Unavailable

20

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

$10.51

21

SPACER,THREADED

5130668

$27.78

22

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.76

23

Asm., Drive Shaft w/Sleeve (See Pg. A18)

----

Unavailable

24

SEAL, HUB STRUT

3610028

$32.37

25

PIVOT BALL, TOP Substituted by 5432872

5430806

$10.51

26

SPACER-RUBBER

5810291

$3.97

27

WASHER(10)

7555749

$1.19

28

NUT,FLEX LOC(10)

7542507

Unavailable
